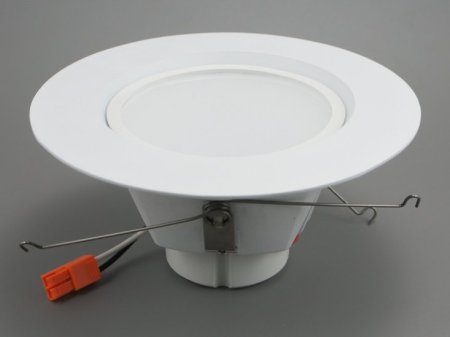

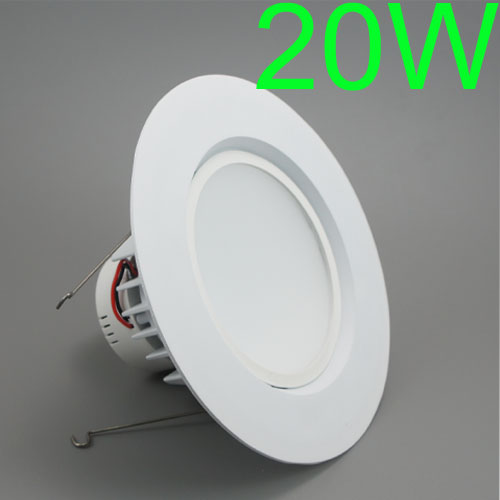

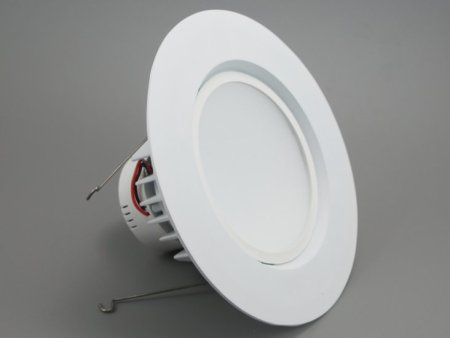

20W LD-DL-HK-06-20W LED Down Light Dimmable 20W(150W Equivalent) Recessed LED Retrofit Downlight

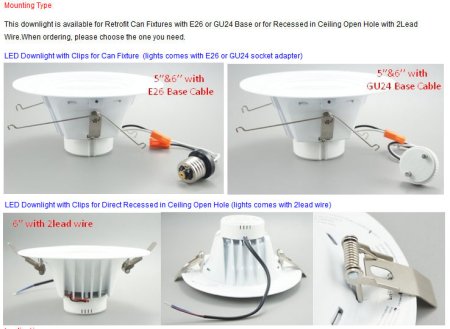

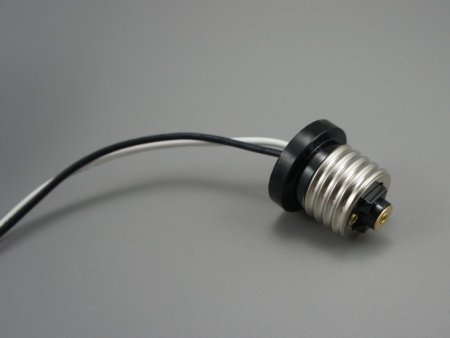

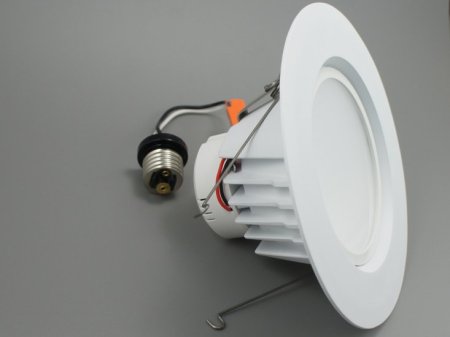

The LD-DL-HK-06 Series Recessed Down light integrates Philips 3030 LED light source and a compact high efficient driver into CFL/Halogen replacement.It is suitable for 120/220V AC input. With E26 Edison Screw Socket adapter or GU24 Socket Adapter, it can use for recessed retrofit down light or new construction down light application. It's compatible with most of the Capri/Halo/Juno and other competitors Cans. With 2 colors lead wire, it can be recessed in Ceiling Open Hole.(Big order/need customized  LED downlight, info@724light.com)


Product Specifications
Part number:	LD-DL-HK-06-20W
Cut-out:	Φ5&6inch/Φ125-185mm
Surface Diameter:	7.4"(186mm)
Power Consumption:	20W
Operating Voltage:	200-240VAC/90-130VAC
Body Material:	Aluminum
Replacement For:	150W Equivalent
Body Color:	White
LED Color:	Pure White(6000-6500k),Warm White(2700-3500k),Nature White(3800-4200k)
Lumen:	1850 Lumens
LED Type:	Philips 3030 LED
LED Quantity:	20*1W/PCS
Beam Angle:	Approx. 90°
CRI:	80 CR
Operating Temperature:	-40~+45 °C
Dimmable:	Yes
Power Factor:	0.90

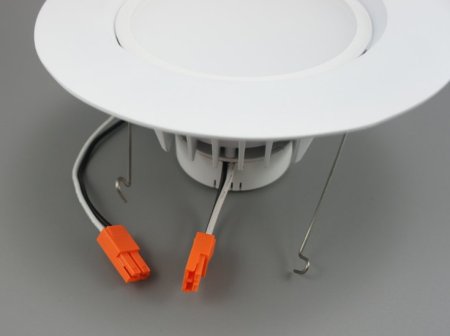

Connector:	2-Pin 10cm Power Line(4")
Lens:	Clear
Lifetime:	50000 Hours
Standards And Certifications:	CE/FCC/ROHS Compliant
Warranty:	2 Years
Weight :	1 kg
Dimensions(D*H):	186mm x 92mm

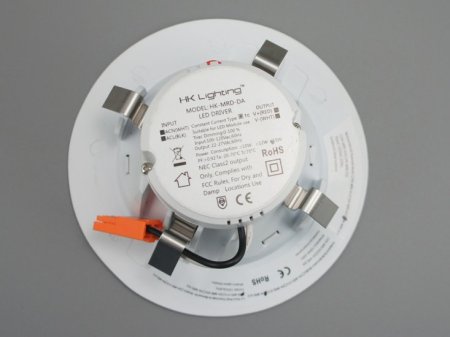

Packaging list :	1* LED Downlight 1* LED Driver
Heat Sink:
    The source mounts directly to heat sink extend aluminum heat sink with  even distribution hackle cool board.High thermal conductivity, reasonable of  radiation coefficient and convection coefficient to solve thermal management  system design of the cooling.This enables the LEDs to consistently run  cooler, providing significant boosts to lifetime, efficacy, and color consistency
Optical System:
    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior  surface prevent lighting glare very well, making the light effect quiteeven  and free from layering
Applications:
Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines Retail Store Display Lighting,Transportation, Railroad, Buses Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

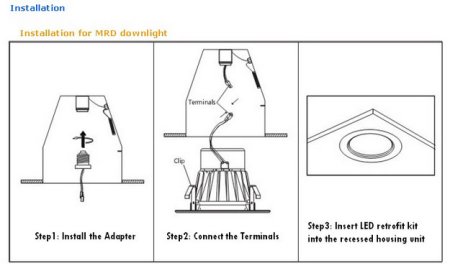

Install

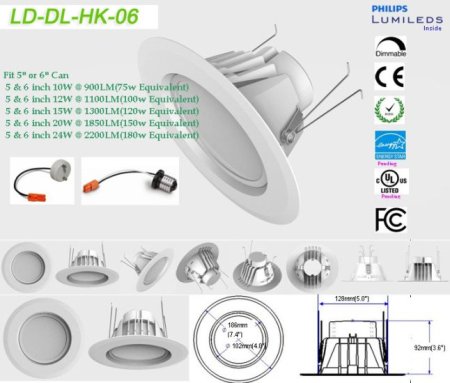

  LD-DL-HK-06 Series LED Down Light

Part Number	Wattage	Color	Lumen	Replacement For	LED	Weight
LD-DL-HK-06-10W	10W	Pure wthite/Warm White/Nature White	900 Lumens	75W Equivalent	Philips 3030 LED	1kg
LD-DL-HK-06-12W	12W	Pure wthite/Warm White/Nature White	1100 Lumens	100W Equivalent	Philips 3030 LED	1kg
LD-DL-HK-06-15W	15W	Pure wthite/Warm White/Nature White	1300 Lumens	120W Equivalent	Philips 3030 LED	1kg
LD-DL-HK-06-20W	20W	Pure wthite/Warm White/Nature White	1850 Lumens	150W Equivalent	Philips 3030 LED	1kg
LD-DL-HK-06-24W	24W	Pure wthite/Warm White/Nature White	2200 Lumens	180W Equivalent	Philips 3030 LED	1kg
