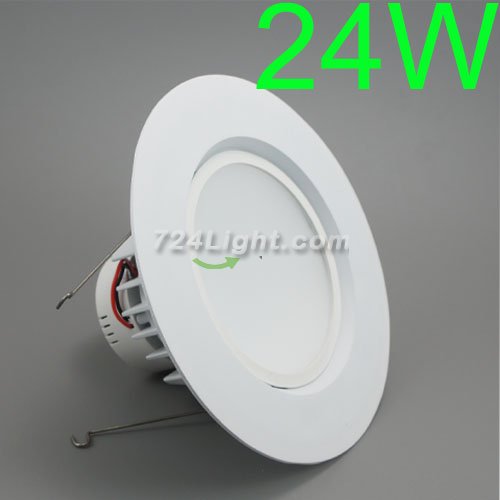

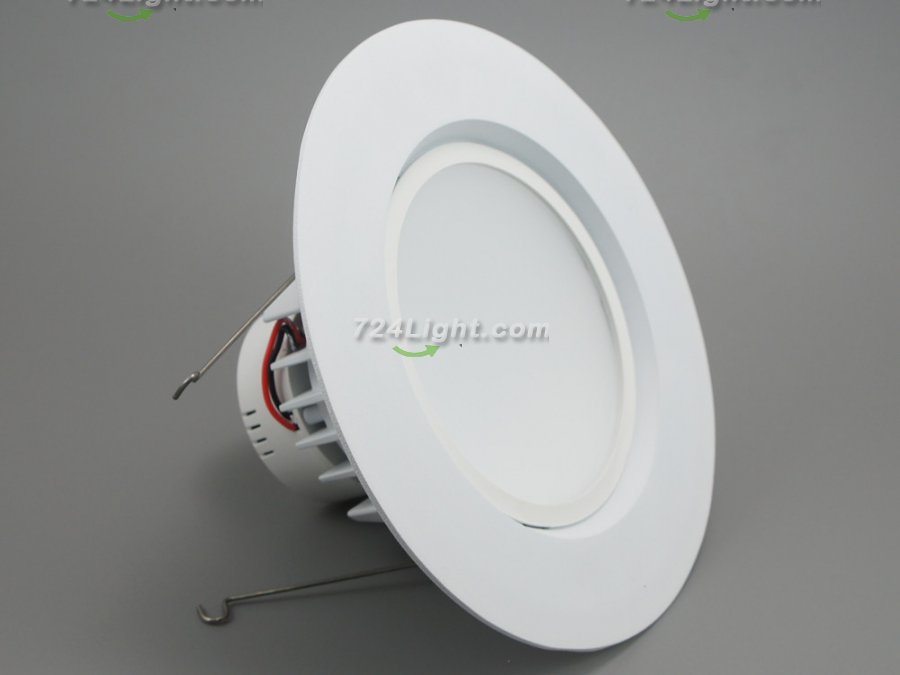

24W LD-DL-HK-06-24W LED Down Light Dimmable 24W(180W Equivalent) Recessed LED Retrofit Downlight

Price: $35.95

  • Model: LD-DL-HK-06-24W   Weight:1Kg

Please Choose:

Base





LED Color





about led white

Mounting Way




Voltage




Qty Discounts Off Price
1-4
$35.95
5-9
$34.15
10-19
$32.36
20-49
$30.56
50-99
$28.76
100+
$26.96

* Discounts may vary based on options above
Add to Cart:
buy now
Shipping To  us start at $20.40,Over $100 Free shipping

Description:

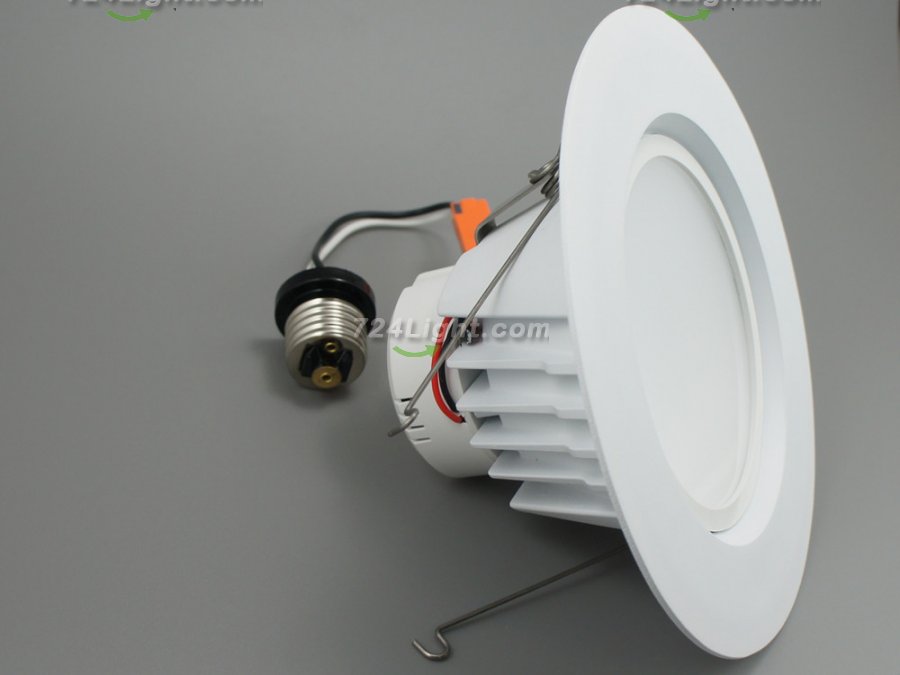

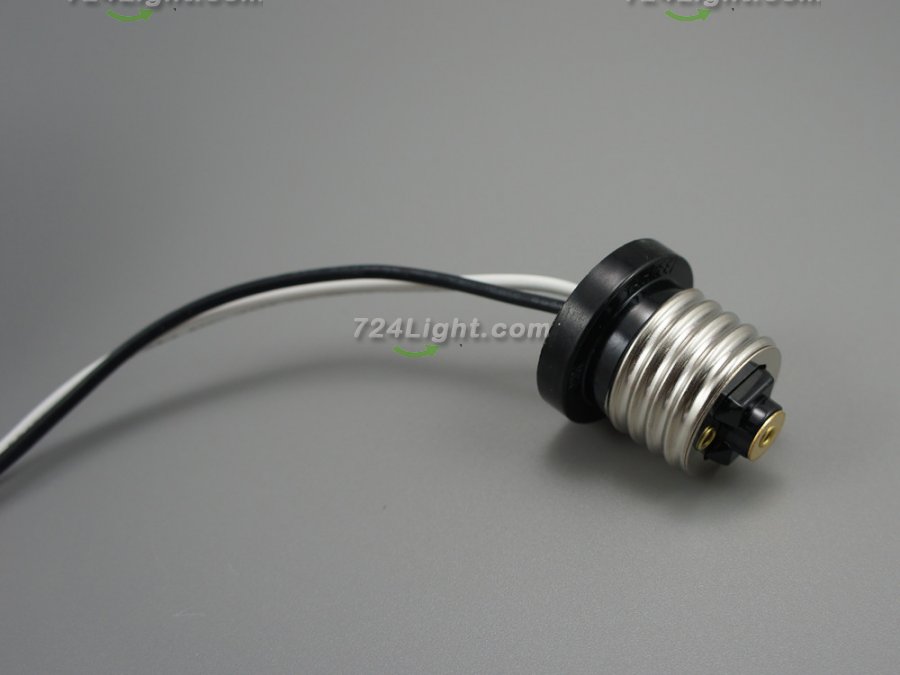

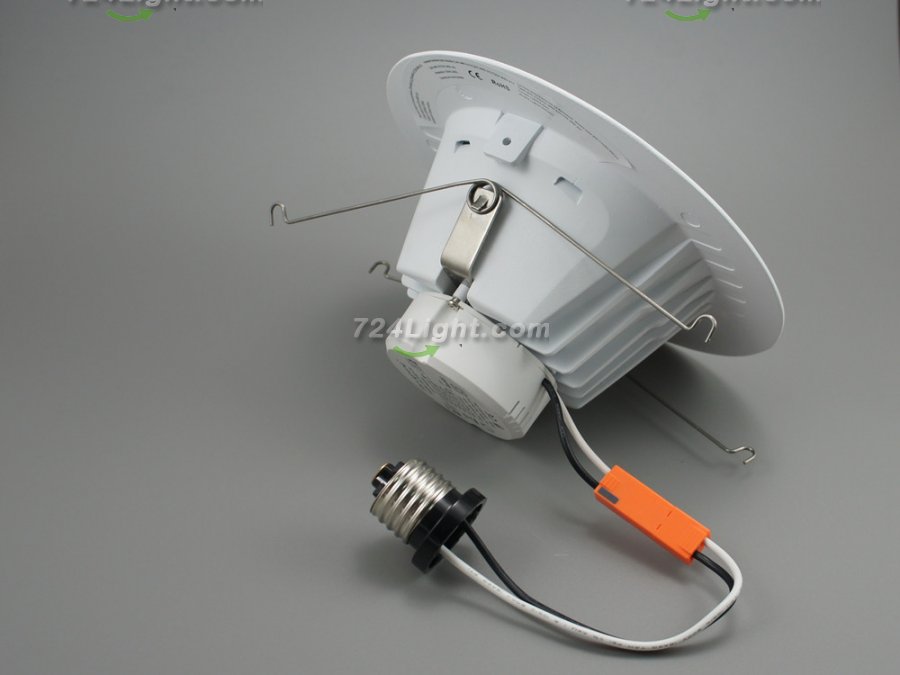

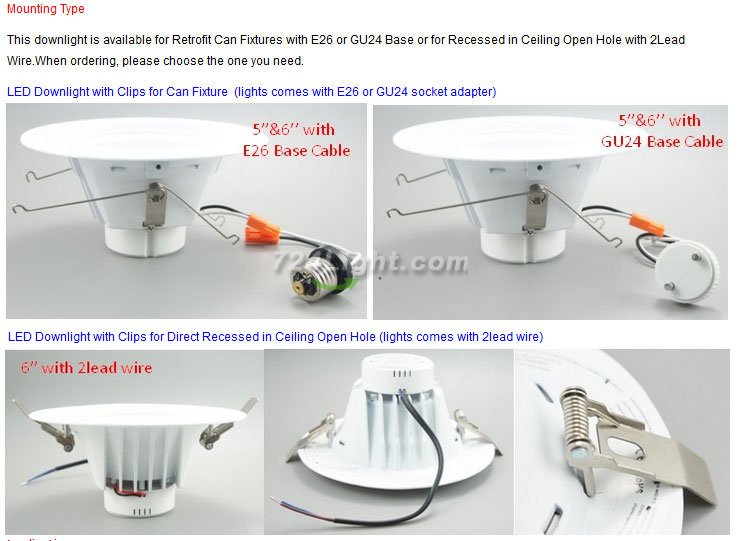

The LD-DL-HK-06 Series Recessed Down light integrates Philips 3030 LED light source and a compact high efficient driver into CFL/Halogen replacement.It is suitable for 120/220V AC input. With E26 Edison Screw Socket adapter or GU24 Socket Adapter, it can use for recessed retrofit down light or new construction down light application. It's compatible with most of the Capri/Halo/Juno and other competitors Cans. With 2 colors lead wire, it can be recessed in Ceiling Open Hole.(Big order/need customized  LED downlight, info@724light.com)

Product Specifications
Part number: LD-DL-HK-06-24W
Cut-out: Φ5&6inch/Φ125-185mm
Surface Diameter: 7.4"(186mm)
Power Consumption: 24W
Operating Voltage:200-240VAC/90-130VAC
Body Material: Aluminum
Replacement For: 180W Equivalent
Body Color:White
LED Color:Pure White(6000-6500k),Warm White(2700-3500k),Nature White(3800-4200k)
Lumen: 2200 Lumens
LED Type: Philips 3030 LED
LED Quantity: 24*1W/PCS
Beam Angle: Approx. 90°
CRI: 80 CR
Operating Temperature: -40~+45 °C
Dimmable: Yes
Power Factor: 0.90
Connector:2-Pin 10cm Power Line(4")
Lens:Clear
Lifetime: 50000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty: 2 Years
Weight : 1 kg
Dimensions(D*H): 186mm x 92mm
Packaging list : 1* LED Downlight
1* LED Driver

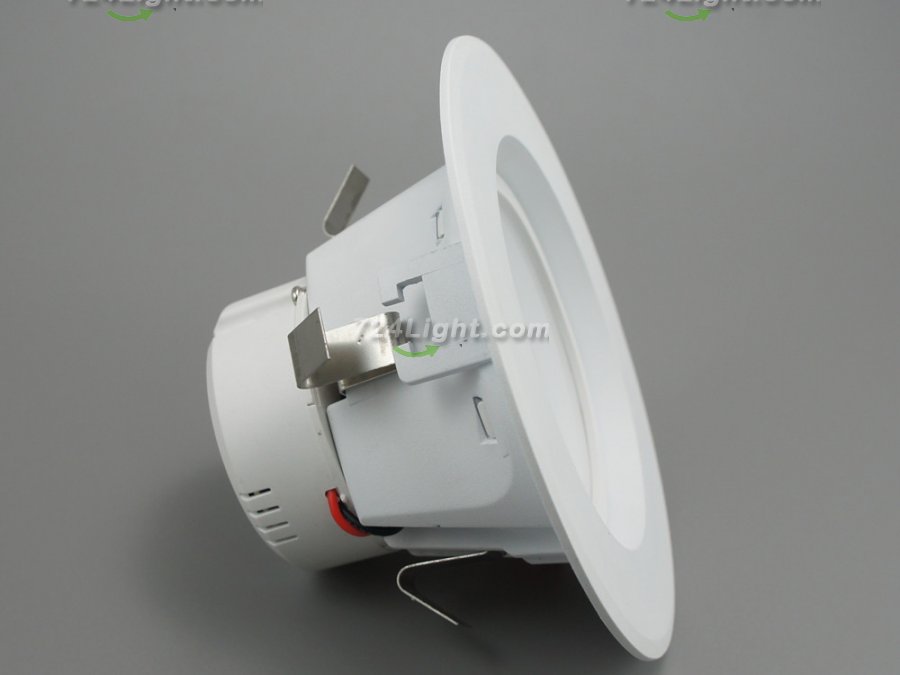

Heat Sink:

    The source mounts directly to heat sink extend aluminum heat sink with  even distribution hackle cool board.High thermal conductivity, reasonable of  radiation coefficient and convection coefficient to solve thermal management  system design of the cooling.This enables the LEDs to consistently run  cooler, providing significant boosts to lifetime, efficacy, and color consistency
Optical System:

    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior  surface prevent lighting glare very well, making the light effect quiteeven  and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

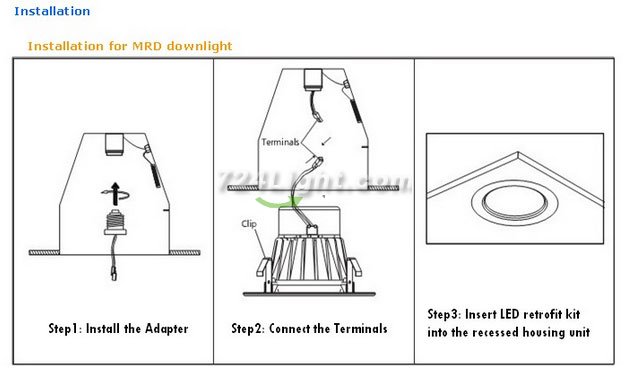

Install

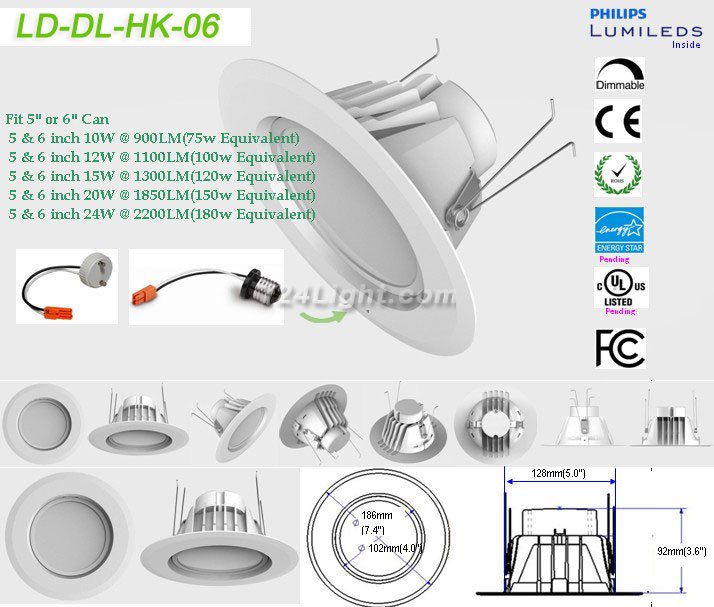

LD-DL-HK-06 Series LED Down Light
Part Number Wattage Color Lumen Replacement For LED Weight
10W
Pure wthite/Warm White/Nature White
900 Lumens
75W Equivalent
Philips 3030 LED
1kg
12W
Pure wthite/Warm White/Nature White
1100 Lumens
100W Equivalent
Philips 3030 LED
1kg
15W
Pure wthite/Warm White/Nature White
1300 Lumens
120W Equivalent
Philips 3030 LED
1kg
20W
Pure wthite/Warm White/Nature White
1850 Lumens
150W Equivalent
Philips 3030 LED
1kg
24W
Pure wthite/Warm White/Nature White
2200 Lumens
180W Equivalent
Philips 3030 LED
1kg
