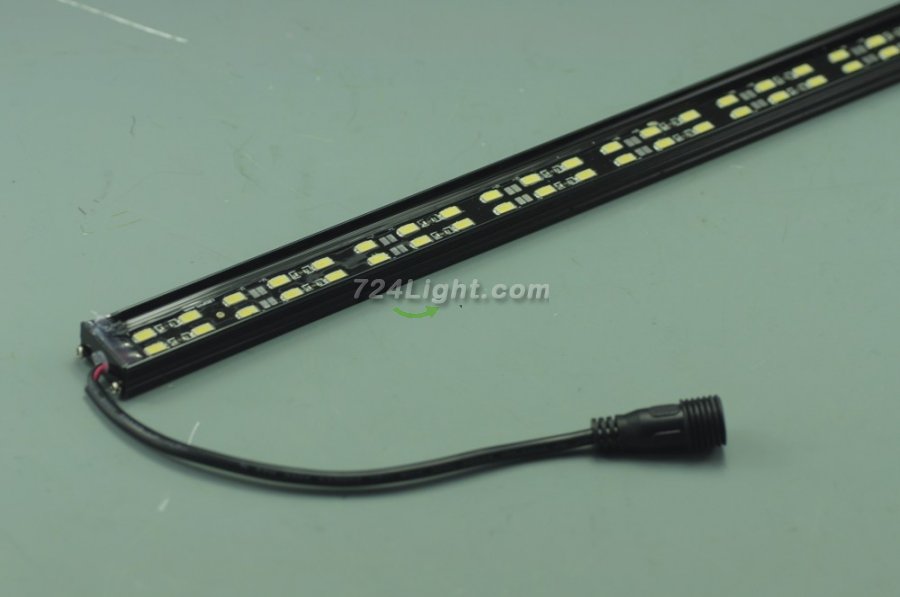

This LED Waterproof Rigid Strips with DC Connecter can be used for floor,showcase,under cabinet lighting, furniture lighting, night lights, retail display lights, window lights, exhibitions, pictures, and many other purposes. (Big order, other color ,or need customized Rigid Strips bar contact Brandon, [email protected])

• Length:1meter(39.4 inch)
• Working Voltage: 12 VDC

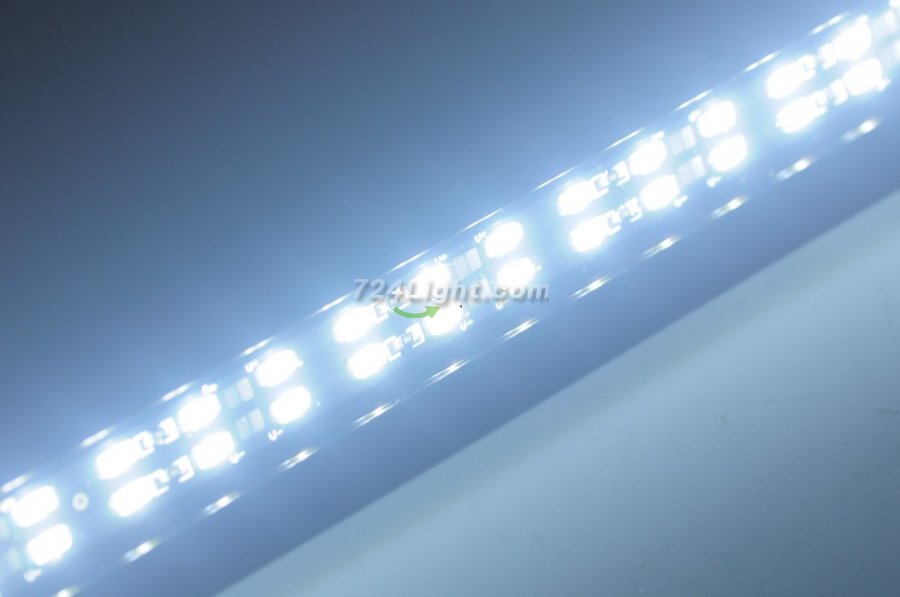

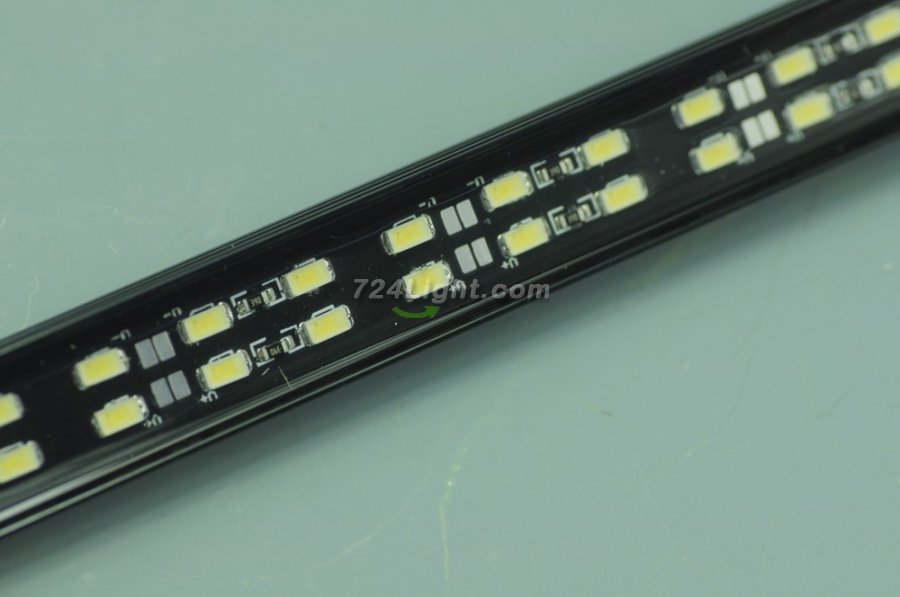

• Light Source:SMD Rigid 5630
• LED Quantity:144 leds
• Protection Rate (Waterproof IP67)
• Power consumption:SMD 5630 12V 1.5A 18W(Suggest 30w or 36w power supply)
• Lumens:SMD 5630 3888LM
• Body Color:Black
• For Strip Width:For Strip PCB 15 mm
• Base Material:Aluminum

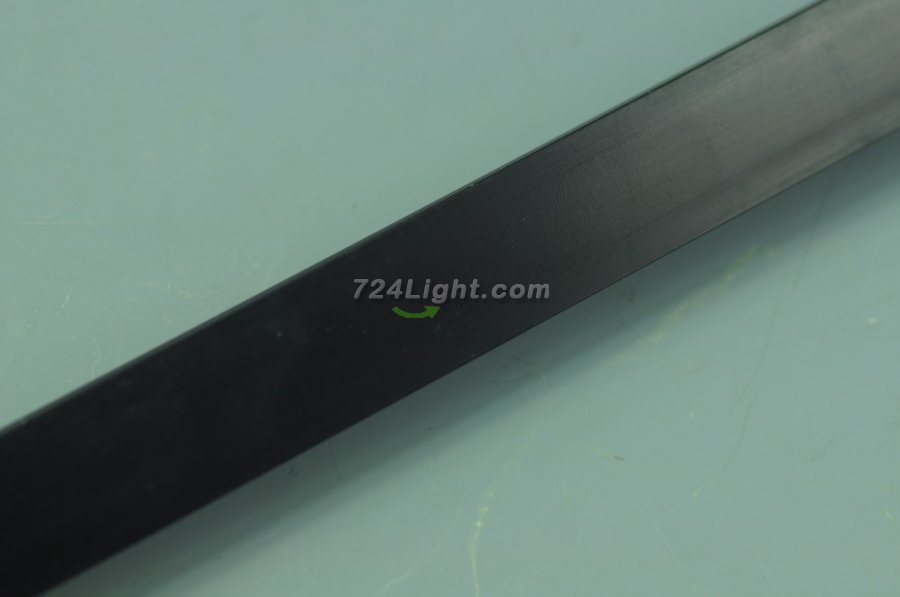

• Body Material:Anodized Aluminum
• Cover material:PC Light Clear Diffusion
• Waterproof Type: IP67
• Working Tempreture:-20 to 50°
• Length Abailable:1meter(39.4 inch),2meter(78.74inch),0.5meter(19.7inch)
• End Caps Dimension:17mm Height
• Aluminium Dimensions(HxWxL):10 mm x 20 mm x 1025mm


• Package Includes:

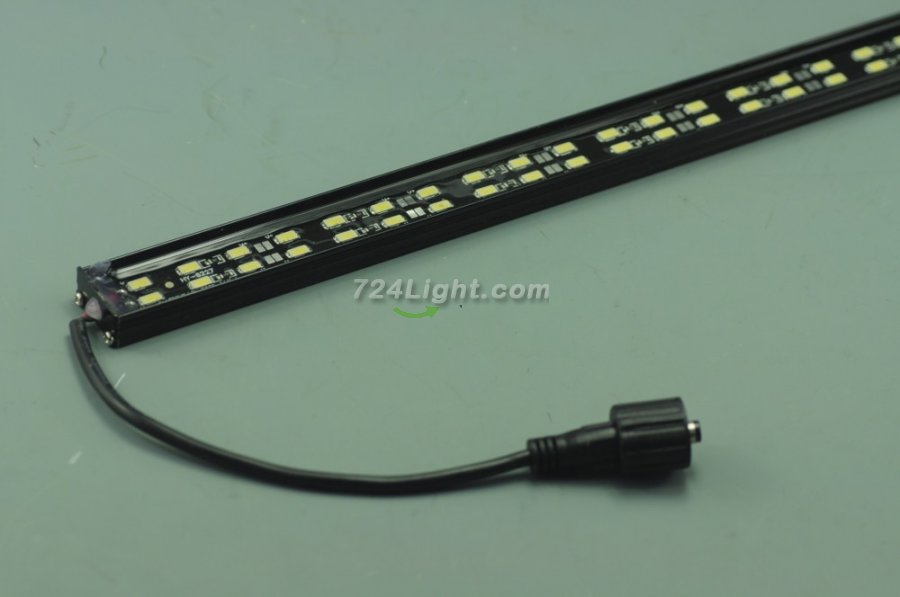

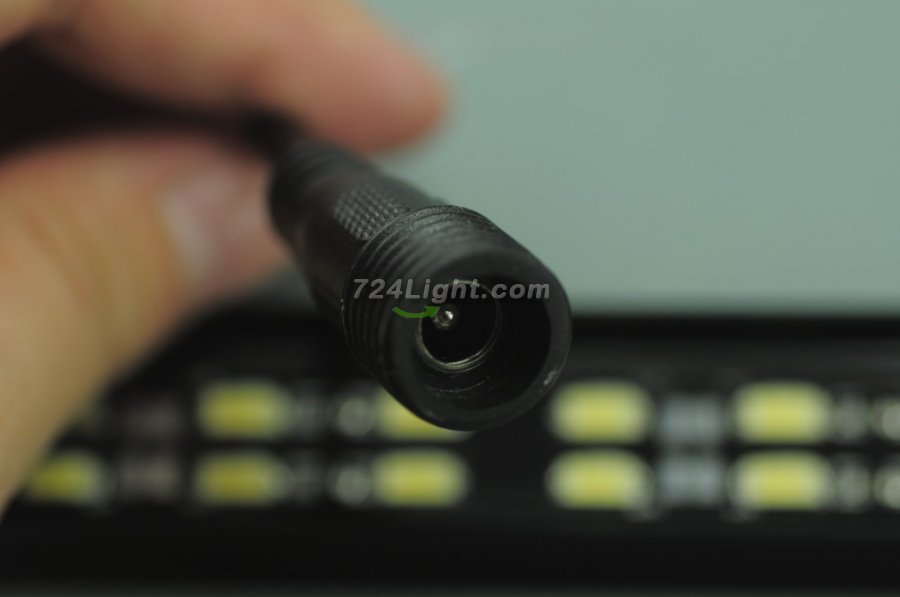

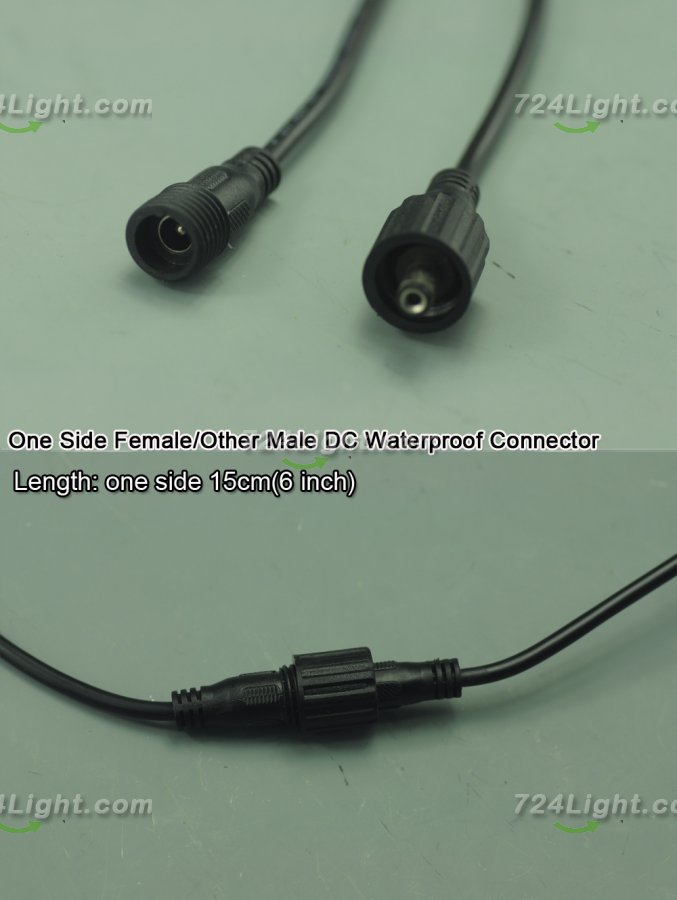

• 1 x LED Aluminium Strip Bar with DC connect (one side female and other side is male)


• Application
• - Shelves
• - Stands for fairs
• - Furniture Construction
• - Kitchens
• - Cabinets
• - Interior


• Notice:
• 1. If need 2 meter(200cm) channel , the min order is 10pcs (20meter),please cotact us
• 2. We are Factory and have a lot of profiles, Have stocks and could make shipment very soon.

RB-E-563015-144W-B Series LED Rigid Bar
