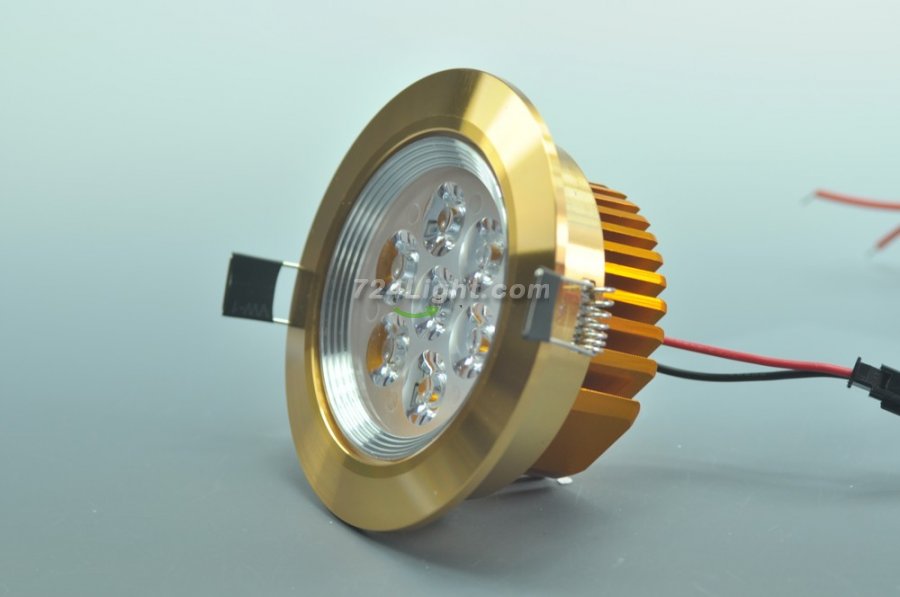

7W CL-HQ-03-7W LED Ceiling light Cut-out 90mm Diameter 4.3" Gold Recessed Dimmable/Non-Dimmable LED Downlight

Model: LD-CL-HQ-03-7W
Availability :  In Stock
  • 7W CL-HQ-03-7W LED Ceiling light Cut-out 90mm Diameter 4.3" Gold Recessed Dimmable/Non-Dimmable LED Downlight
  • 7W CL-HQ-03-7W LED Ceiling light Cut-out 90mm Diameter 4.3" Gold Recessed Dimmable/Non-Dimmable LED Downlight
  • 7W CL-HQ-03-7W LED Ceiling light Cut-out 90mm Diameter 4.3" Gold Recessed Dimmable/Non-Dimmable LED Downlight
  • 7W CL-HQ-03-7W LED Ceiling light Cut-out 90mm Diameter 4.3" Gold Recessed Dimmable/Non-Dimmable LED Downlight
  • 7W CL-HQ-03-7W LED Ceiling light Cut-out 90mm Diameter 4.3" Gold Recessed Dimmable/Non-Dimmable LED Downlight
  • 7W CL-HQ-03-7W LED Ceiling light Cut-out 90mm Diameter 4.3" Gold Recessed Dimmable/Non-Dimmable LED Downlight
$14.80
LED Color

Driver and Dimmable

Qty Discounts Off Price
1-4
$14.80		 5-9
$14.06		 10-19
$13.32		 20-49
$12.58		 50-99
$11.84		 100+
$11.10

* Discounts may vary based on options above
QTY :
Part Number Hole Size Size Material Surface Color Brightness Light Source Light Angle CRI Weight
LD-CL-HQ-03-12W 0.55 KG
LD-CL-HQ-03-9W 0.539 KG
LD-CL-HQ-03-5W 0.359 KG
LD-CL-HQ-03-3W 0.199 KG

724Light LD-CL-HQ-03 series 7W high lumens of exceptional 75+ CRI light,Lifetime > 50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized LED downlight, [email protected])

Product Specifications
Part number: LD-CL-HQ-03-7W
Cut-out: Φ90mm
Surface Diameter: 4.3"(109.5mm)
Power Consumption: 7W
Operating Voltage:100~277VAC
Body Material: Aluminum
Replacement For: 10.5W CFL
Body Color: Gold
LED Color: Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 595 Lumens
LED Type: Epistar Chip
LED Quantity: 7*1W/PCS
Beam Angle: Approx. 60°
CRI: 75 CR
Operating Temperature: -40~+45 °C
Dimmable: Dimmable(Default)/Non-Dimmable
Power Factor: 0.90
Connector: 2-Pin 10cm Power Line(4")
Lens:Clear
Lifetime: 50000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty: 2 Years
Weight : 0.364 kg
Dimensions(D*H): 109.5mm x 49mm
Packaging list : 1* LED Downlight
1* LED Driver
Heat Sink:
    The source mounts directly to heat sink extend aluminum heat sink with even distribution hackle cool board.High thermal conductivity, reasonable of radiation coefficient and convection coefficient to solve thermal management system design of the cooling.This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency
Optical System:
    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior surface prevent lighting glare very well, making the light effect quiteeven and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

Install

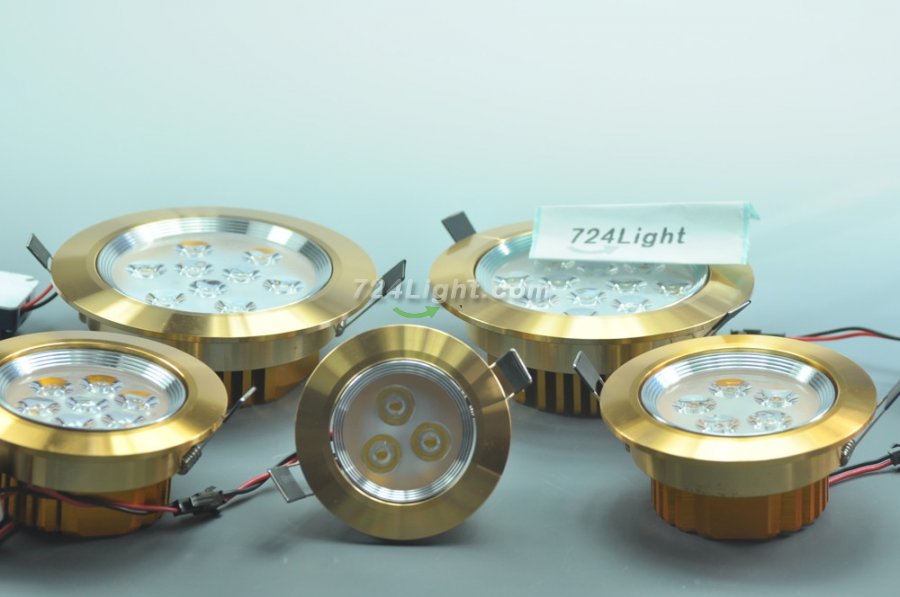

LD-CL-HQ-03 Series Other LED Down Light
Part Number Wattage Color Dimension(W*H) Cut-out LED Weight
3W
Pure wthite/Warm White
Φ85mm*45.5mm
Φ69.5mm
3*1W LED
0.199kg
5W
Pure wthite/Warm White
Φ109mm*48mm
Φ90.5mm
5*1W LED
0.359kg
7W
Pure wthite/Warm White
Φ109.5mm*49mm
Φ90.5mm
7*1W LED
0.364kg
9W
Pure wthite/Warm White
Φ139mm*49mm
Φ114mm
9*1W LED
0.539kg
12W
Pure wthite/Warm White
Φ139mm*48mm
Φ114mm
12*1W LED
0.550kg

7W CL-HQ-03-7W LED Ceiling light Cut-out 90mm Diameter 4.3" Gold Recessed Dimmable/Non-Dimmable LED Downlight
7W CL-HQ-03-7W LED Ceiling light Cut-out 90mm Diameter 4.3" Gold Recessed Dimmable/Non-Dimmable LED Downlight
7W CL-HQ-03-7W LED Ceiling light Cut-out 90mm Diameter 4.3" Gold Recessed Dimmable/Non-Dimmable LED Downlight
7W CL-HQ-03-7W LED Ceiling light Cut-out 90mm Diameter 4.3" Gold Recessed Dimmable/Non-Dimmable LED Downlight
7W CL-HQ-03-7W LED Ceiling light Cut-out 90mm Diameter 4.3" Gold Recessed Dimmable/Non-Dimmable LED Downlight
7W CL-HQ-03-7W LED Ceiling light Cut-out 90mm Diameter 4.3" Gold Recessed Dimmable/Non-Dimmable LED Downlight
