3W LED Driver(1-3)x1W LED Constant Current 3 Watt Driver 350MA 11V

Model: DR-SP-N-A350(1-3)3W
Availability :  In Stock
  • 3W LED Driver(1-3)x1W LED Constant Current 3 Watt Driver 350MA 11V
  • 3W LED Driver(1-3)x1W LED Constant Current 3 Watt Driver 350MA 11V
  • 3W LED Driver(1-3)x1W LED Constant Current 3 Watt Driver 350MA 11V
  • 3W LED Driver(1-3)x1W LED Constant Current 3 Watt Driver 350MA 11V
  • 3W LED Driver(1-3)x1W LED Constant Current 3 Watt Driver 350MA 11V
$2.99
Qty Discounts Off Price
1
$2.99		 2-4
$2.84		 5-14
$2.69		 15-19
$2.54		 20-49
$2.39		 50+
$2.24

QTY :
Warning: Missing argument 2 for zen_get_category_name(), called in /www/wwwroot/www.724light.com/includes/templates/yourstore/templates/tpl_product_info_display.php on line 473 and defined in /www/wwwroot/www.724light.com/includes/functions/functions_lookups.php on line 304

724Light 3W LED Constant Current Driver,it use for the 3W 2W 1W led downlight,led ceiling light ,all LED Chip In Series Connection (We can do any Current and dimensions led driver ,if need custom/wholesale ,please contact info@724light.com:)

Product Specifications
Part number:DR-SP-N-A350(1-3)3W
Input: AC100-240V 50/60Hz
Max Wattage: 3W
Output Current: 350MA±2%
Output Voltage: 11V
Suitable for : 1W,2W,3W down ceiling light
Any LED Chip In Series Connection
Dimensions: 68mm*33mm*22mm
Waterproof No-Waterproof
Lifetime:40000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty:2 Years
Weight : 0.03 kg
Packaging list: 1 pcs x LED Driver
Number into the box : 100pcs
Note: the red and black line should connet 1-3pcs at least,notover 3pcs.

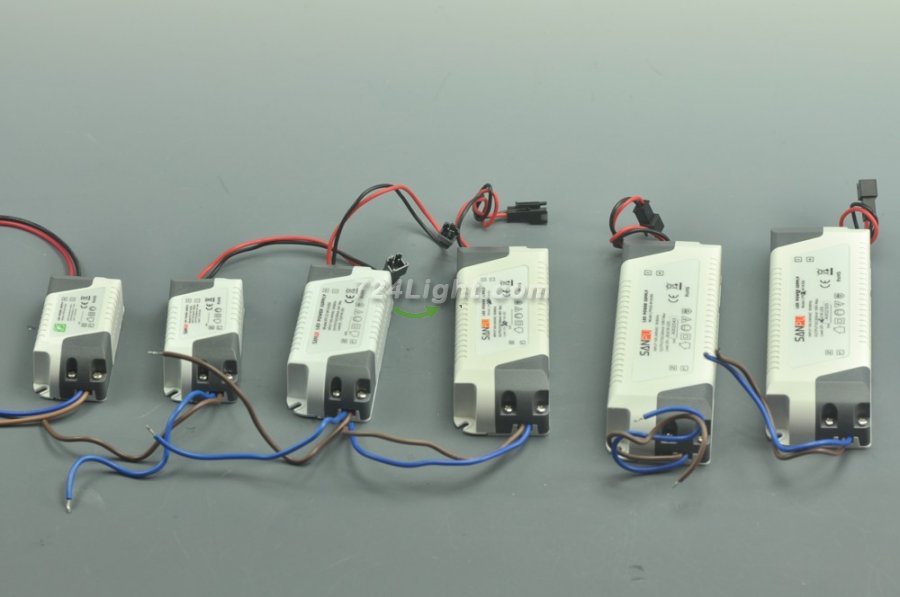

Images Part Number Wattage Max Wattage Output Voltage Suitable for Dimensions
3W LED Driver DR-SP-N-A350(1-3)3W (1-3)x1W 3W 11V 1W,2W,3W down ceiling light
Any LED Chip In Series Connection 		68mm*33mm*22mm
7W LED Driver DR-SP-N-A350(4-7)7W (4-7)x1W 7W 25V 4W,5W,6W 7W down ceiling light
Any LED Chip In Series Connection 		68mm*33mm*22mm
12W LED Driver DR-SP-N-A350(8-12)12W (8-12)x1W 12W 42V 8W,9W,10W,11W,12W down ceiling light
Any LED Chip In Series Connection 		90mm*38mm*22mm
20W LED Driver DR-SP-N-A350(15-20)20W (15-20)x1W 20W 67V 15W 16W 17W 18W 19W 20W down ceiling light
Any LED Chip In Series Connection 		110mm*42mm*24mm
25W LED Driver DR-SP-N-A350(20-25)25W (20-25)x1W 25W 87.5V 20W 21W 22W 23W 24W 25W down ceiling light
Any LED Chip In Series Connection 		132mm*45mm*24mm
30W LED Driver DR-SP-N-A350(20-30)30W (20-30)x1W 30W 105V 20W 21W 22W 23W 24W 25W 26W 27W 28W 29W 30W down ceiling light
Any LED Chip In Series Connection 		132mm*45mm*24mm
