  4. 3W LD-DL-GLB-01-3W Black Shell LED Track Light LED 3*1W Pure White LED Track Lamp Diameter 55mm LED Spotlight

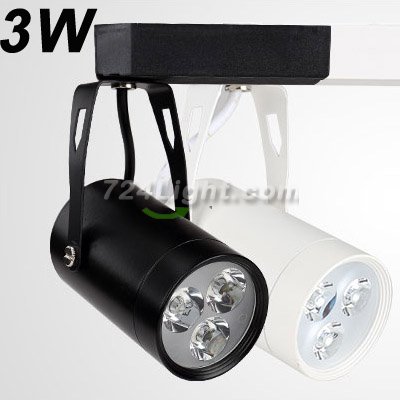

3W LD-DL-GLB-01-3W Black Shell LED Track Light LED 3*1W Pure White LED Track Lamp Diameter 55mm LED Spotlight

Model: LD-DL-GLB-01-3W-PW
Availability :  In Stock
  • 3W LD-DL-GLB-01-3W Black Shell LED Track Light LED 3*1W Pure White LED Track Lamp Diameter 55mm LED Spotlight
  • 3W LD-DL-GLB-01-3W Black Shell LED Track Light LED 3*1W Pure White LED Track Lamp Diameter 55mm LED Spotlight
$13.50
LED Color

Driver and Dimmable

Qty Discounts Off Price
1-4
$13.50		 5-9
$12.83		 10-19
$12.15		 20-49
$11.48		 50-99
$10.80		 100+
$10.13

* Discounts may vary based on options above
QTY :
Part Number Hole Size Size Material Surface Color Brightness Light Source Light Angle CRI Weight
LD-TL-AC-002 0.05 KG
LD-TL-AL-001 0.2 KG
LD-DL-GLB-01-5W-PW 0.25 KG
LD-DL-GLB-01-5W-WW 0.25 KG
LD-DL-GLB-01-3W-WW 0.2 KG
LD-DL-GLB-01-18W-PW 0.6 KG
LD-DL-GLB-01-18W-WW 0.6 KG
LD-DL-GLB-01-12W 0.6 KG
LD-DL-GLB-01-7W 0.4 KG

724Light LD-DL-GLB-01-3W series 3W high lumens of exceptional 75+ CRI light,Lifetime > 50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized LED downlight, [email protected])

Product Specifications
Part number: LD-DL-GLB-01-3W
Surface Diameter: 55mm
Power Consumption: 3W
Operating Voltage:110~250VAC
Body Material: Aluminum +Plastic
Replacement For: 4.5W CFL
Body Color: Black
LED Color: Pure White(5500-6500k)
Lumen: 255 Lumens
LED Type: Epistar Chip
LED Quantity: 3*1W/PCS
Beam Angle: Approx. 120°
CRI: 75 CR
Operating Temperature: -40~+45 °C
Dimmable: Dimmable
Power Factor: 0.90
Connector: 2-Pin 10cm Power Line(4")
Lens:Frosted
Lifetime: 50000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty: 3 Years
Weight : 0.09 kg
Dimensions(D*H): 55mm x 103mm
Packaging list : 1* LED Downlight
1* LED Driver
Heat Sink:
    The source mounts directly to heat sink extend aluminum heat sink with even distribution hackle cool board.High thermal conductivity, reasonable of radiation coefficient and convection coefficient to solve thermal management system design of the cooling.This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency
Optical System:
    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior surface prevent lighting glare very well, making the light effect quiteeven and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

Install


LD-DL-GLB-01 Series LED Down Light
Part Number Wattage Color Dimension(D*H) Shell Color LED
3W
Pure wthite
Φ55mm*103mm
Black
3*1W
3W
Warm White
Φ55mm*103mm
White
3*1W
5W
Pure wthite
Φ70mm*130mm
Black
5*1W
5W
Warm White
Φ70mm*130mm
White
5*1W
7W
Pure wthite/Warm White
Φ70mm*130mm
Black/White
7*1W
12W
Pure wthite/Warm White
Φ100mm*187mm
Black/White
12*1W
18W
Pure wthite
Φ120mm*200mm
Black
18*1W
18W
Warm White
Φ120mm*200mm
White
18*1W
