  4. 12W DL-HQ-101-12W LED Spotlight Cut-out 128.5mm Diameter 6.2" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light

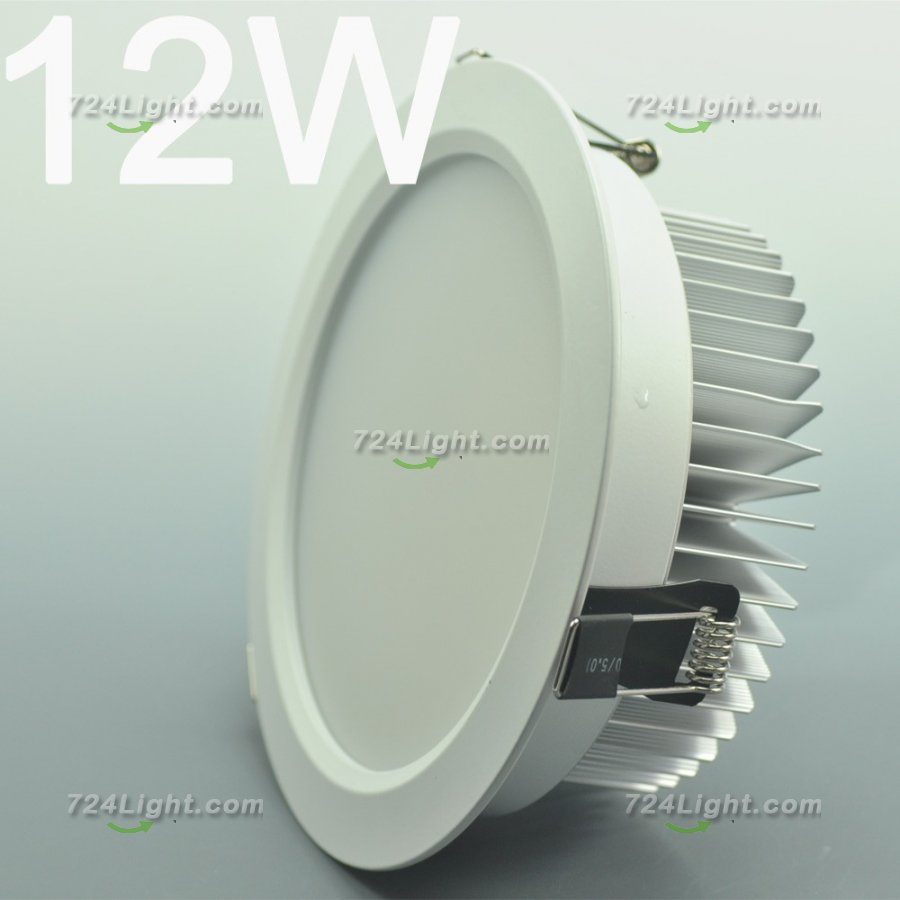

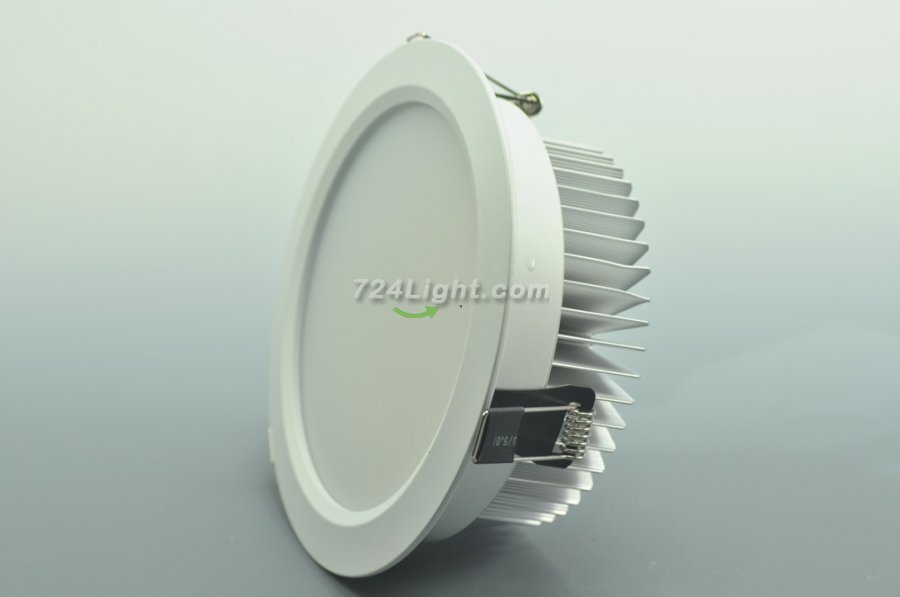

12W DL-HQ-101-12W LED Spotlight Cut-out 128.5mm Diameter 6.2" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light

Model: LD-DL-HQ-101-12W
Availability :  In Stock
  • 12W DL-HQ-101-12W LED Spotlight Cut-out 128.5mm Diameter 6.2" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W DL-HQ-101-12W LED Spotlight Cut-out 128.5mm Diameter 6.2" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W DL-HQ-101-12W LED Spotlight Cut-out 128.5mm Diameter 6.2" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W DL-HQ-101-12W LED Spotlight Cut-out 128.5mm Diameter 6.2" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W DL-HQ-101-12W LED Spotlight Cut-out 128.5mm Diameter 6.2" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W DL-HQ-101-12W LED Spotlight Cut-out 128.5mm Diameter 6.2" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
  • 12W DL-HQ-101-12W LED Spotlight Cut-out 128.5mm Diameter 6.2" White Recessed LED Dimmable/Non-Dimmable LED Ceiling light
$30.00
LED Color

Driver and Dimmable

Qty Discounts Off Price
1-4
$30.00		 5-9
$28.50		 10-19
$27.00		 20-49
$25.50		 50-99
$24.00		 100+
$22.50

* Discounts may vary based on options above
QTY :
Part Number Hole Size Size Material Surface Color Brightness Light Source Light Angle CRI Weight
LD-DL-HQ-101-18W 0.593 KG
LD-DL-HQ-101-7W 0.339 KG
LD-DL-HQ-101-5W 0.247 KG
LD-DL-HQ-101-3W 0.168 KG

724Light LD-DL-HQ-101 series 12W high lumens of exceptional 75+ CRI light,Lifetime >  50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized  LED downlight, [email protected])


Product Specifications
Part number: LD-DL-HQ-101-12W
Cut-out: Φ128.5mm
Surface Diameter: 6.2"(157mm)
Power Consumption: 12W
Operating Voltage:100~277VAC
Body Material: Aluminum
Replacement For: 18W CFL
Body Color:White
LED Color:Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 1020 Lumens
LED Type: Epistar Chip
LED Quantity: 12*1W/PCS
Beam Angle: Approx. 120°
CRI: 75 CR
Operating Temperature: -40~+45 °C
Dimmable: Dimmable(Default)/Non-Dimmable
Power Factor: 0.90
Connector:2-Pin 10cm Power Line(4")
Lens:Clear
Lifetime: 50000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty: 2 Years
Weight : 0.583 kg
Dimensions(D*H): 157mm x 62mm
Packaging list : 1* LED Downlight
1* LED Driver

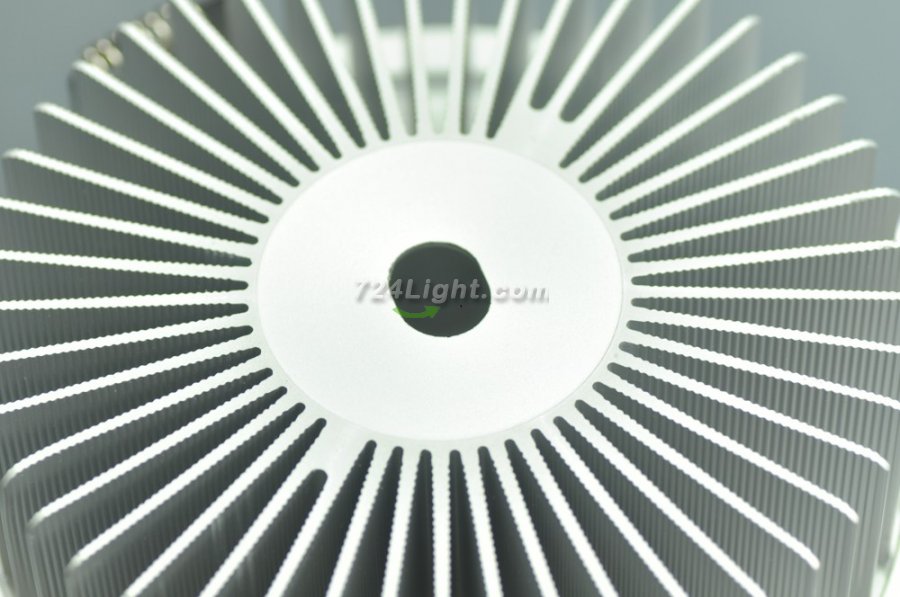

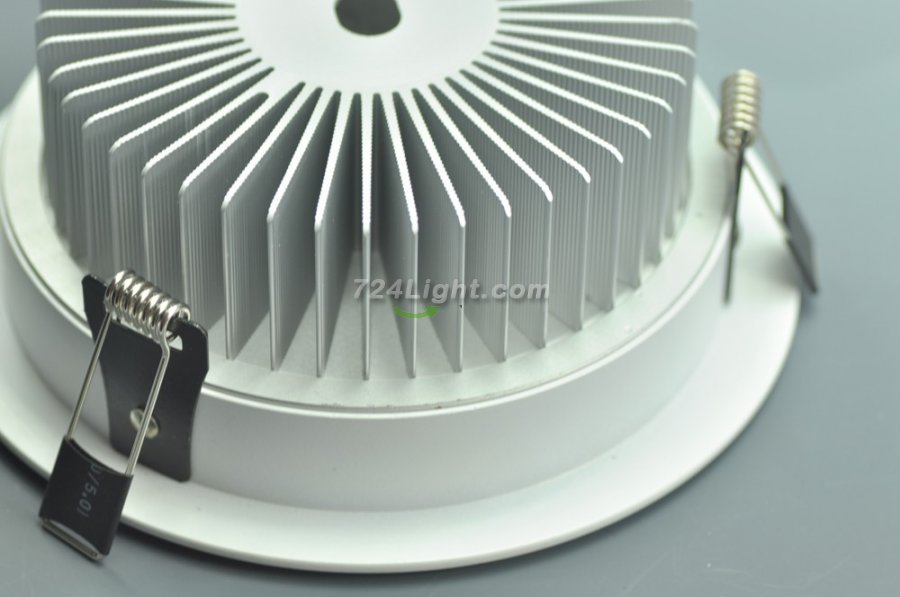

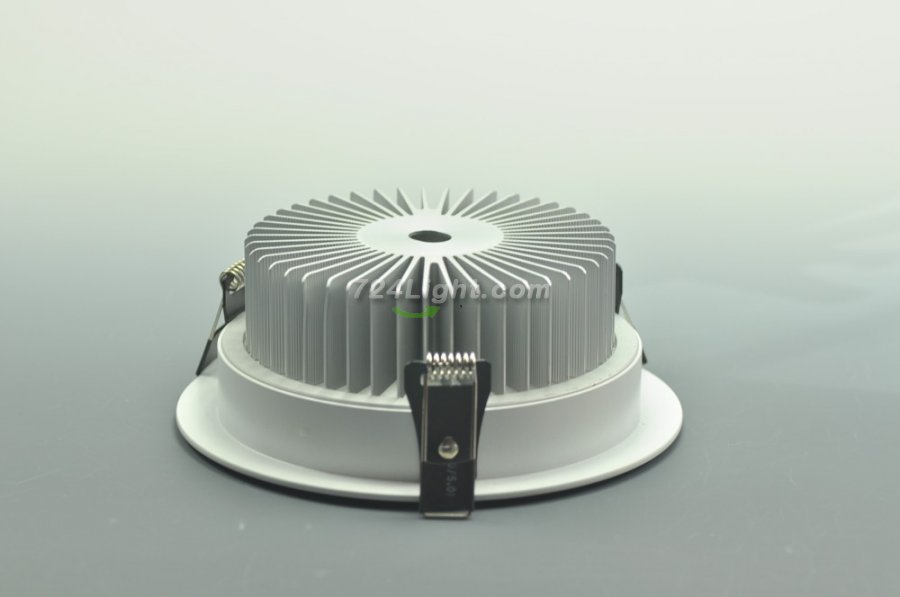

Heat Sink:

    The source mounts directly to heat sink extend aluminum heat sink with  even distribution hackle cool board.High thermal conductivity, reasonable of  radiation coefficient and convection coefficient to solve thermal management  system design of the cooling.This enables the LEDs to consistently run  cooler, providing significant boosts to lifetime, efficacy, and color consistency
Optical System:

    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior  surface prevent lighting glare very well, making the light effect quiteeven  and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

Install

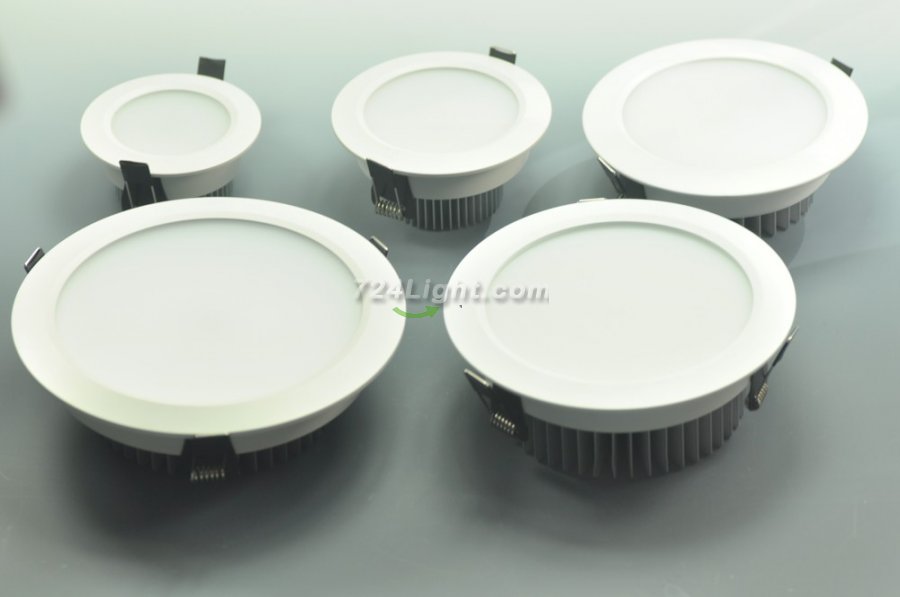

LD-DL-HQ-101 Series Other LED Down Light
Part Number Wattage Color Dimension(W*H) Cut-out LED Weight
3W
Pure wthite/Warm White
Φ90mm*43.5mm
Φ75mm
SMD2835
0.168kg
5W
Pure wthite/Warm White
Φ109mm*54.5mm
Φ93mm
SMD2835
0.247kg
7W
Pure wthite/Warm White
Φ140.5mm*51mm
Φ115mm
SMD2835
0.339kg
12W
Pure wthite/Warm White
Φ157mm*62mm
Φ128.5mm
SMD2835
0.583kg
18W
Pure wthite/Warm White
Φ180mm*60mm
Φ137mm
SMD2835
0.593kg
