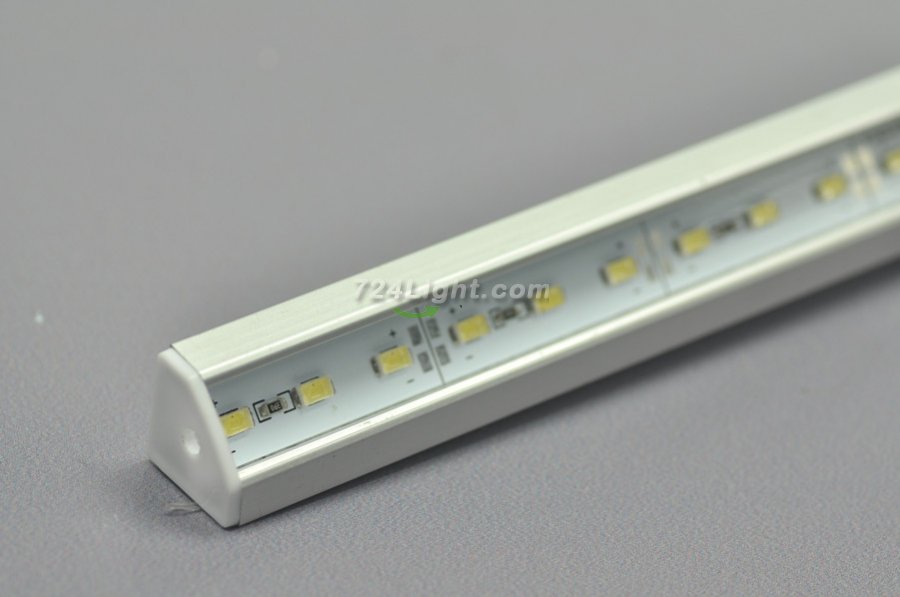

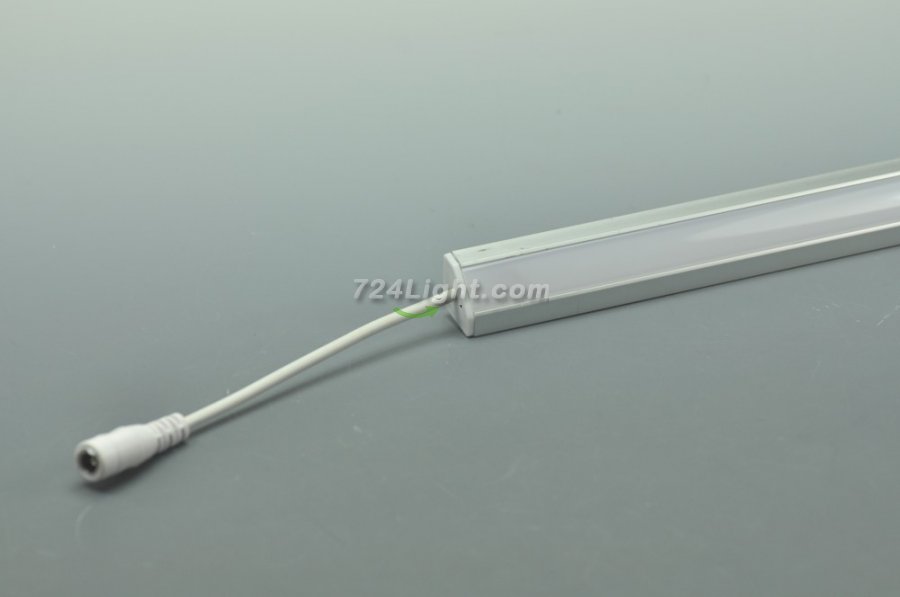

This Aluminium Rigid Strips with supbright smd 5050 or 5630 led strip light , 72LEDs/Meter,High stable LED chip used in the LED which has high brightness, low degradation and longevity. it use the 12V 2A Power Supply , if you're strictly concerned about saving energy this is good choose .IT can be used for cabinet , ceilings ,floor,showcase,under cabinet lighting, furniture lighting, night lights, retail display lights, window lights, exhibitions, pictures, and many other purposes. (Big order, other color ,or need customized Rigid Strips bar contact Brandon, [email protected])

• Length
• 1.2meter-120cm(47inch)84leds
• Working Voltage: 12 VDC
• Light Source:SMD 5050/SMD 5630
• LED Quantity:84 Leds
• Protection Rate (Waterproof IP67)
• Power Consumption:SMD 5050 12V 1.3A 15.6W---SMD 5630 12V 1.4A 16.8W(Suggest 30w or 36w power supply)
• Lumens:SMD 5050 2073M --- SMD 5630 2594LM
• Body Color:Silver
• For Strip Width:For Strip Rigid PCB 10 mm
• Base Material:Aluminum
• Body Material:Anodized Aluminum
• Cover material:PC Light Diffusion
• Waterproof Type: NO Waterproof
• Working Tempreture:-20 to 50°
• Length Abailable:0.5meter(50cm 19.7inch),1meter(39.7inch 60cm)
• End Caps Dimension:18mm Height
• Aluminium Dimensions(HxW):18 mm x 34 mm


• Application
• - Shelves
• - Stands for fairs
• - Furniture Construction
• - Kitchens
• - Cabinets
• - Interior


• Package Includes:
• 1 x LED Rigid Strip Light Bar


• Notice:
• 1. If need other length channel or other color led light, the min order is 10pcs ,please cotact us
• 2. We are Factory and have a lot of strip bar, Have stocks and could make shipment very soon.

ALL LD-RG-SH-006 Series LED Strip Bar
