Superbright CREE 18W LD-DL-AJ-01-18W 9*2W LED Jewellery Downlight Cut-out 120mm-130mm Diameter 5.4" LED Down Light

Model: LD-DL-AJ-01-18W
Availability :  In Stock
  • Superbright CREE 18W LD-DL-AJ-01-18W 9*2W LED Jewellery Downlight Cut-out 120mm-130mm Diameter 5.4" LED Down Light
  • Superbright CREE 18W LD-DL-AJ-01-18W 9*2W LED Jewellery Downlight Cut-out 120mm-130mm Diameter 5.4" LED Down Light
  • Superbright CREE 18W LD-DL-AJ-01-18W 9*2W LED Jewellery Downlight Cut-out 120mm-130mm Diameter 5.4" LED Down Light
  • Superbright CREE 18W LD-DL-AJ-01-18W 9*2W LED Jewellery Downlight Cut-out 120mm-130mm Diameter 5.4" LED Down Light
  • Superbright CREE 18W LD-DL-AJ-01-18W 9*2W LED Jewellery Downlight Cut-out 120mm-130mm Diameter 5.4" LED Down Light
  • Superbright CREE 18W LD-DL-AJ-01-18W 9*2W LED Jewellery Downlight Cut-out 120mm-130mm Diameter 5.4" LED Down Light
$46.60
LED Color

Driver and Dimmable

Qty Discounts Off Price
1-4
$46.60		 5-9
$44.27		 10-19
$41.94		 20-49
$39.61		 50-99
$37.28		 100+
$34.95

* Discounts may vary based on options above
QTY :
Part Number Hole Size Size Material Surface Color Brightness Light Source Light Angle CRI Weight
LD-DL-AJ-01-09W 0.213 KG
LD-DL-AJ-01-36W 0.25 KG
LD-DL-AJ-01-27W 0.25 KG
LD-DL-AJ-01-24W 0.25 KG
LD-DL-AJ-01-12W 0.25 KG
LD-DL-AJ-01-9W 0.213 KG

724Light LD-DL-AJ-01-18W series 18W high lumens of exceptional 75+ CRI light,Lifetime > 50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized LED downlight, [email protected])

Product Specifications
Part number: LD-DL-AJ-01-18W
Cut-out: Φ120mm-130mm
Surface Diameter: 5.4"(140mm)
Power Consumption: 18W
Operating Voltage:100~277VAC
Body Material: Aluminum +Plastic
Replacement For: 27W CFL
Body Color: White
LED Color: Pure White(6000-6500k),Warm White(2700-3500k)
Lumen: 1530 Lumens
LED Type: CREE LED
LED Quantity: 9*2W/PCS
Beam Angle: Approx. 120°
CRI: 75 CR
Operating Temperature: -40~+45 °C
Dimmable: Dimmable
Power Factor: 0.90
Connector: 2-Pin 10cm Power Line(4")
Lens:Clear
Lifetime: 50000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty: 3 Years
Weight : 0.213 kg
Dimensions(D*H): 140mm x 120mm
Packaging list : 1* LED Downlight
1* LED Driver
Heat Sink:

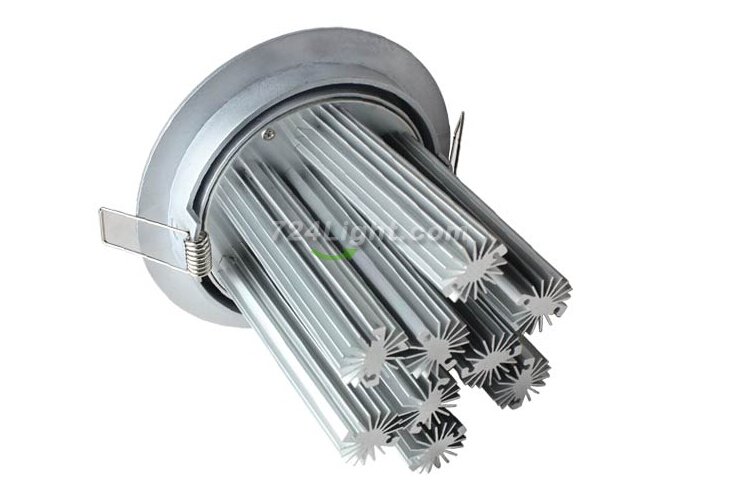

    The source mounts directly to heat sink extend aluminum heat sink with even distribution hackle cool board.High thermal conductivity, reasonable of radiation coefficient and convection coefficient to solve thermal management system design of the cooling.This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency
Optical System:
    The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior surface prevent lighting glare very well, making the light effect quiteeven and free from layering
Applications:
  • Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
  • Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines
  • Retail Store Display Lighting,Transportation, Railroad, Buses
  • Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting

Install


LD-DL-AJ-01 Series LED Down Light
Part Number Wattage Color Dimension(W*H) Cut-out LED
9W
Pure wthite/Warm White
Φ140mm x 120mm
Φ120mm-130mm
9*1W LED
12W
Pure wthite/Warm White
Φ140mm x 120mm
Φ120mm-130mm
12*1W LED
18W
Pure wthite/Warm White
Φ140mm x 120mm
Φ120mm-130mm
9*2W LED
24W
Pure wthite/Warm White
Φ140mm x 120mm
Φ120mm-130mm
12*2W LED
27W
Pure wthite/Warm White
Φ140mm x 120mm
Φ120mm-130mm
9*3W LED
36W
Pure wthite/Warm White
Φ140mm x 120mm
Φ120mm-130mm
12*3W LED
