PB-AP-ML-5056

Model: PB-AP-ML-5056
Availability :  In Stock
  • PB-AP-ML-5056
  • PB-AP-ML-5056
  • PB-AP-ML-5056
  • PB-AP-ML-5056
  • PB-AP-ML-5056
  • PB-AP-ML-5056
  • PB-AP-ML-5056
  • PB-AP-ML-5056
  • PB-AP-ML-5056
$18.99
Cover

Qty Discounts Off Price
3-9
$18.99		 10-19
$17.09		 20-49
$16.14		 50-99
$15.19		 100+
$14.24
* Discounts may vary based on options above
Min:  3
*Mixed OFF
QTY :

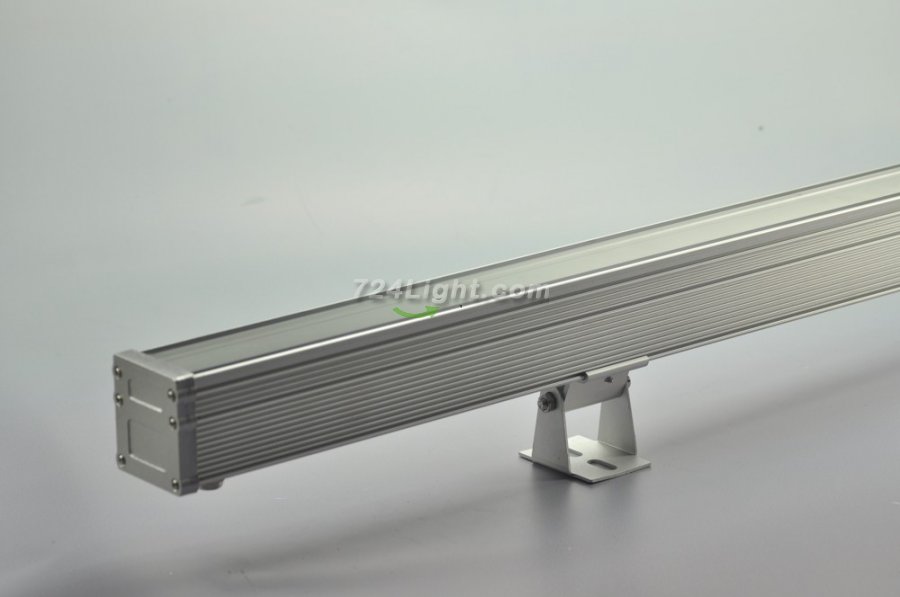

This LED Aluminium Channel can be used for outside landscape light,led strip light channel,LED flood light,led wall light and other need good heat eliminable led project install. (Big order/need customized aluminium LED Channel, [email protected])

  • Length:1 meter(39.4 inch)
  • Color:Silver
  • Base Material:Aluminum
  • Body Material:Anodized Aluminum

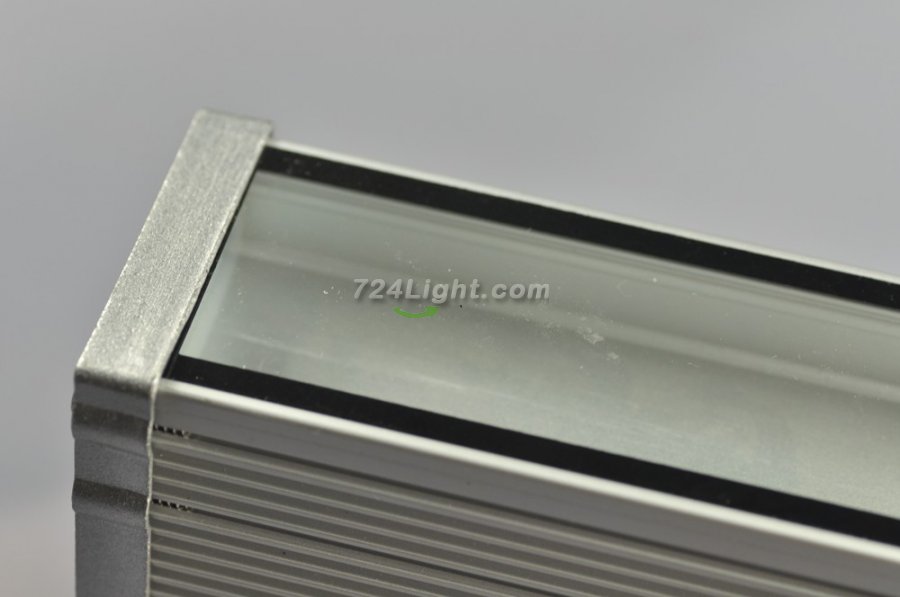

  • Cover : Clear Armoured glass(1000mm*46mm*3mm)
  • Waterproof Type: IP65(After install with glue)
  • Light Source:High-power lights, or SMD(5050,3528,5630,5730,2835 and so on)
  • Length Abailable:1meter(39.4 inch),2meter(78.74inch),0.5meter(19.7inch)

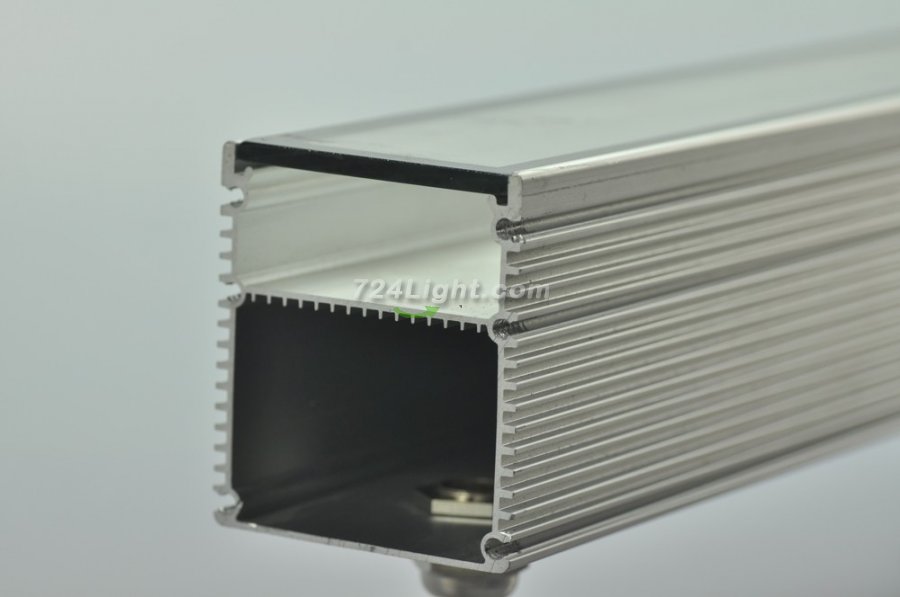

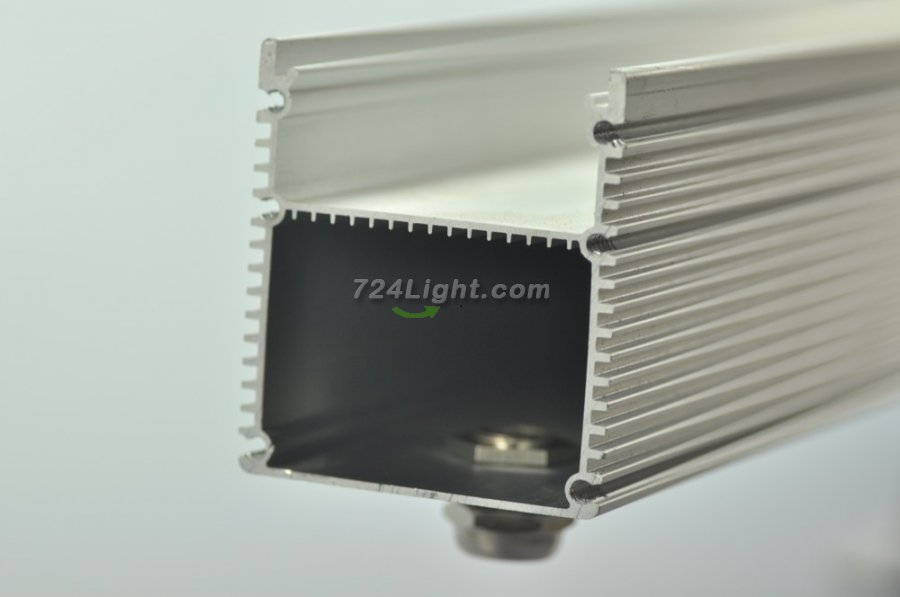

  • Inside Dimensions:(HxW)16.15mm x 41.5mm

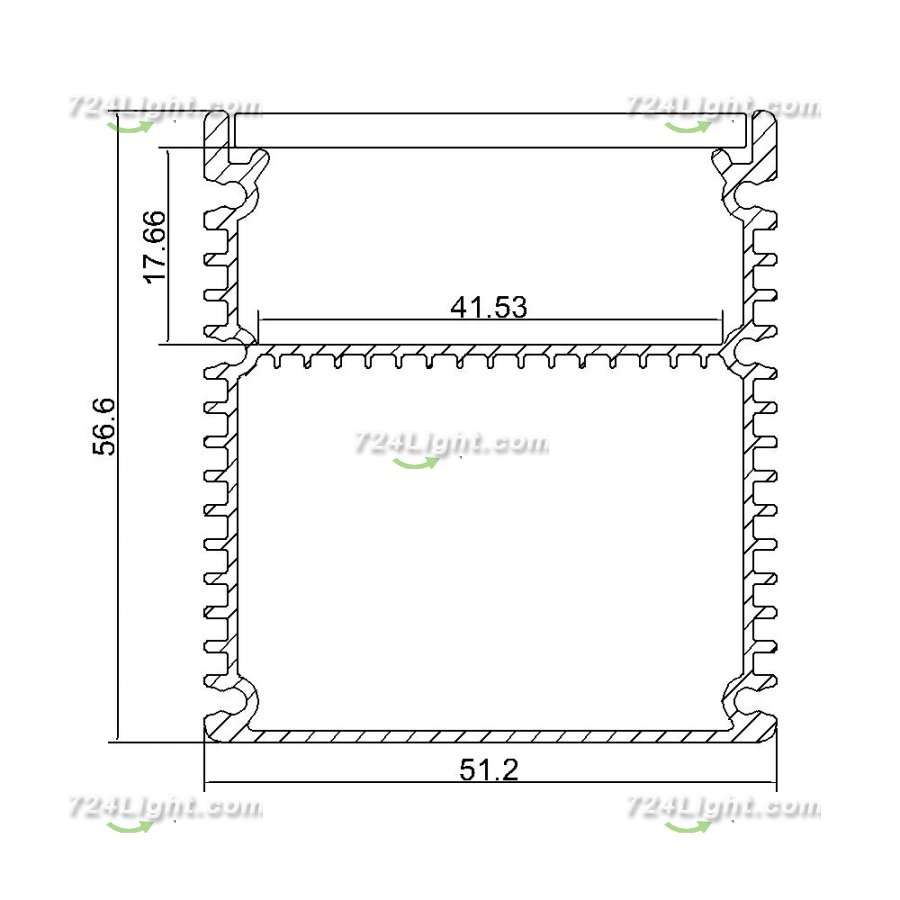

  • Outside Dimensions(HxW):56 mm x 50 mm(see follow first picture)
  • LED Power Support:18W-24W-36W

  • Package Includes:
  • 1 x LED Strip Aluminium Profile

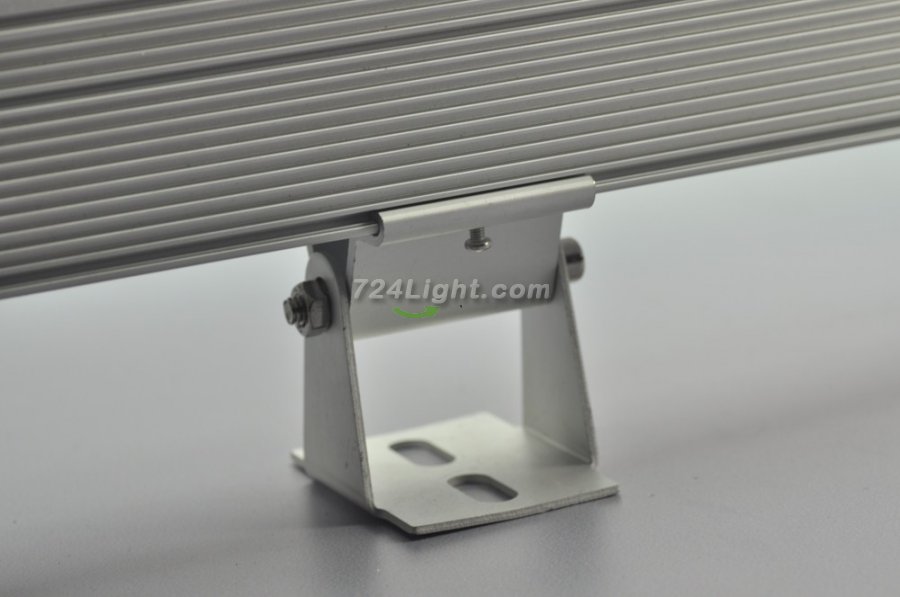

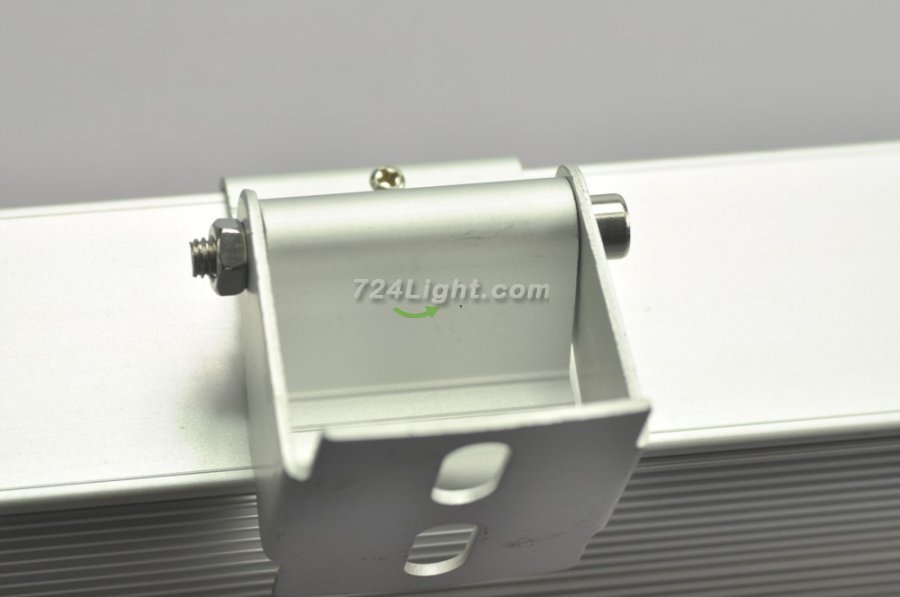

  • 2 x Mounting Clip Holders

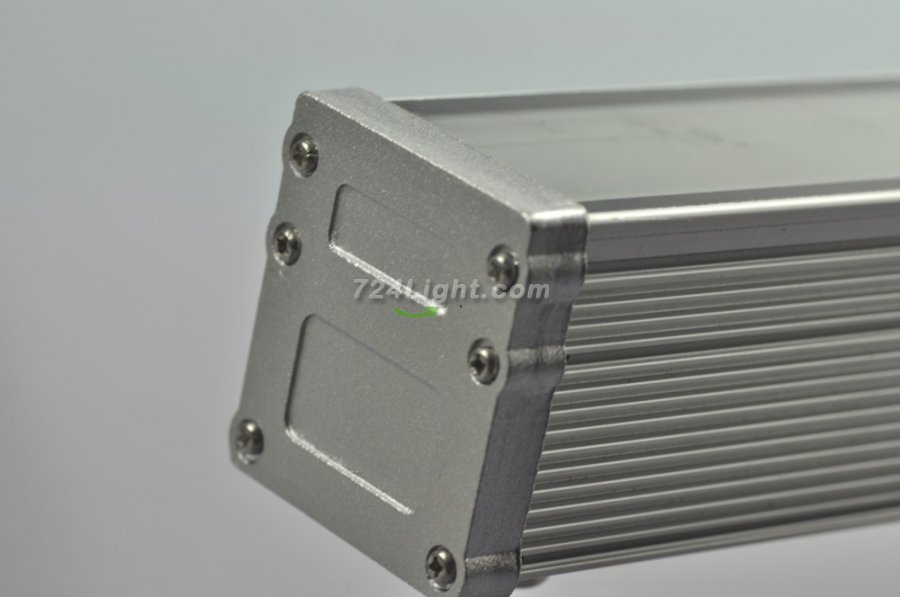

  • 2 x End Caps
  • 1 x Waterproof Screw
  • N x Steel Screws
  • 1 x Armoured glass

  • Application
  • - Outdoors:Bridge ,park, Garden,Sculpture, Plaza, Billboard,Stands for fairs
  • - Interior:Warehouse,Cabinets,LED Project that need good heat eliminable

  • Notice:
  • 1. If need 2 meter(200cm) channel , the min order is 5pcs (20meter),please cotact us
  • 2. We are Factory and have a lot of profiles, Have stocks and could make shipment very soon.
  • 3. We can do install led light and led driver,according your need
