LED Floodlight 120W Aluminium Housing DIY Outdoor Floodlight

Model: PB-AP-FML-B32-120W-2
Availability :  In Stock
  • LED Floodlight 120W Aluminium Housing DIY Outdoor Floodlight
  • LED Floodlight 120W Aluminium Housing DIY Outdoor Floodlight
  • LED Floodlight 120W Aluminium Housing DIY Outdoor Floodlight
$99.50
Qty Discounts Off Price
1-9
$99.50		 10-19
$89.55		 20-49
$84.58		 50-99
$79.60		 100+
$74.63
QTY :

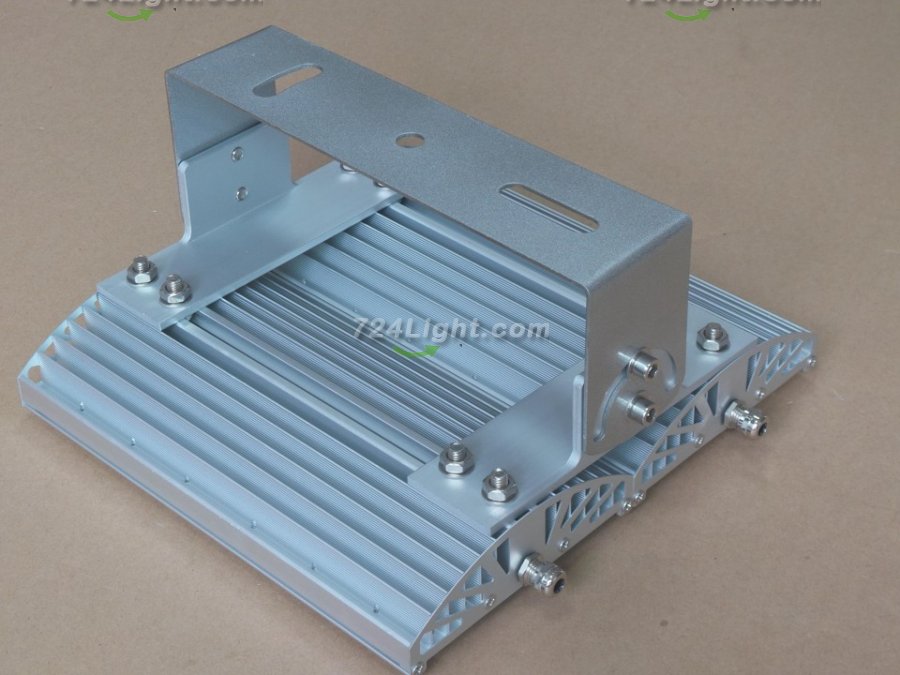

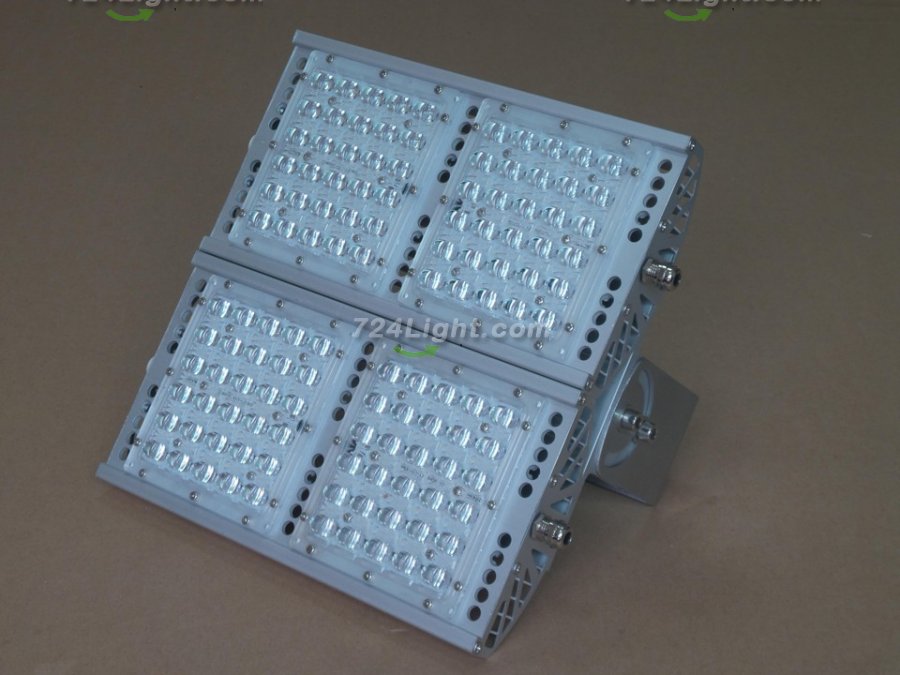

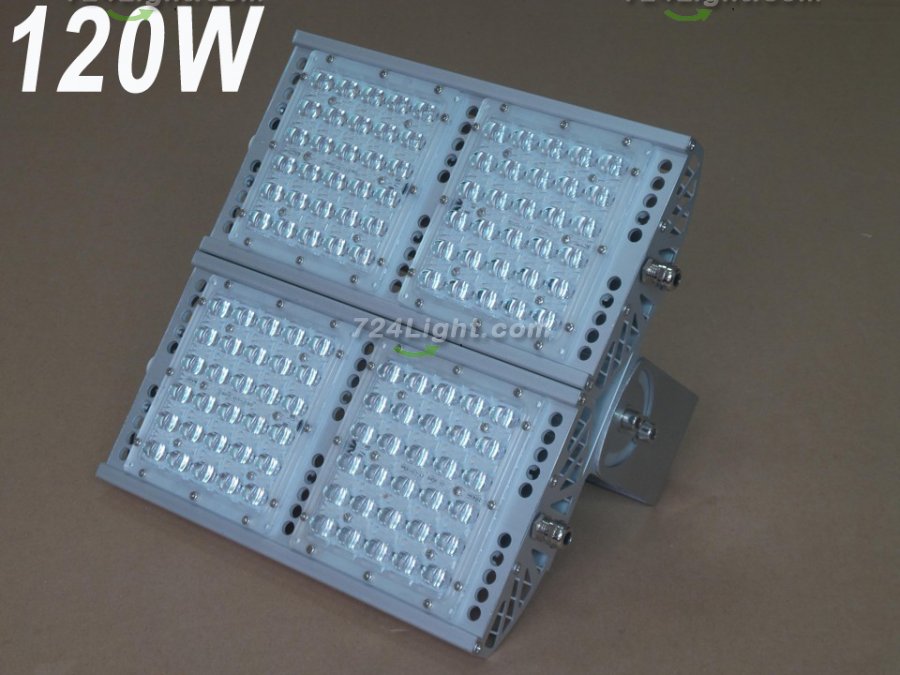

724Light Diy PB-AP-FML-B32-120W LED Floodlight Shell can use 120*1W LED(Not Included),the connection way is 15 Series Connections 8 Parallel Connections, with Waterproof Lens, waterproof level is IP65.The heat sink and shell integration design, good heat dissipation, easy to DIY install. (not include the led driver and led light)

Product Specifications
Part number:PB-AP-FML-B32-120W
Wattage: 120W
LED Quantity: Support 120*1W/PCS(Not Included)
Module Number: 4 PCS
PCB Connection: 15 Series Connections 8 Parallel Connections
Waterproof Lens: 8 PCS(with waterpoof gasket)
Waterproof : IP65
Shell Material Aluminum
T Type Holder Material: 6063 Aluminum
Fixed Bracket Material: 4mm Aluminum Plate
Size: 278*292*140mm
Lifetime:40000 Hours
Standards And Certifications:CE/FCC/ROHS Compliant
Warranty:2 Years
Weight : 3.8 kg
Packaging list: 1 x LED Floodlight Housing
8 x Sets Waterproof Lens
4 x PCB Panel
1 x Support Holder
Other accessories(screw,gasket)

ALL PB-AP-FML-B26 Series Floodlight Shell

Images Part Number Wattage LED Quantity PCB Connection Dimensions Weight
Floodlight Shell PB-AP-FML-B26-28W 28W Support 28*1W/PCS 14 Series Connections 2 Parallel Connections 132*242*40mm 1.3Kg
Floodlight Shell PB-AP-FML-B26-56W 56W Support 56*1W/PCS 14 Series Connections 4 Parallel Connections 246*278*40mm 2.15Kg

ALL PB-AP-FML-B27 Series Floodlight Shell

Images Part Number Wattage LED Quantity PCB Connection Dimensions Weight
Floodlight Shell PB-AP-FML-B27-30W 30W Support 30*1W/PCS 15 Series Connections 2 Parallel Connections 116*278*41mm 1.4Kg
Floodlight Shell PB-AP-FML-B27-60W 60W Support 60*1W/PCS 15 Series Connections 4 Parallel Connections 204*278*41mm 2.1Kg
Floodlight Shell PB-AP-FML-B27-90W 90W Support 90*1W/PCS 15 Series Connections 6 Parallel Connections 292*278*41mm 2.95Kg
Floodlight Shell PB-AP-FML-B27-120W 120W Support 120*1W/PCS 15 Series Connections 8 Parallel Connections 392*278*41mm 3.55Kg
Floodlight Shell PB-AP-FML-B27-28W 28W Support 28*1W/PCS 14 Series Connections 2 Parallel Connections 132*278*40mm 1.35Kg
Floodlight Shell PB-AP-FML-B27-56W 56W Support 56*1W/PCS 14 Series Connections 4 Parallel Connections 246*278*40mm 2.45Kg
Floodlight Shell PB-AP-FML-B27-84W 84W Support 84*1W/PCS 14 Series Connections 6 Parallel Connections 360*278*40mm 3.55Kg
Floodlight Shell PB-AP-FML-B27-112W 112W Support 112*1W/PCS 14 Series Connections 8 Parallel Connections 474*278*40mm 4.75Kg

ALL PB-AP-FML-B32 Series Floodlight Shell

Images Part Number Wattage LED Quantity PCB Connection Dimensions Weight
Floodlight Shell PB-AP-FML-B32-60W 60W Support 60*1W/PCS 15 Series Connections 4 Parallel Connections 270*145*140mm 2.1Kg
Floodlight Shell PB-AP-FML-B32-90W 90W Support 90*1W/PCS 15 Series Connections 6 Parallel Connections 395*145*140mm 2.6Kg
Floodlight Shell PB-AP-FML-B32-120W-1 120W Support 120*1W/PCS 15 Series Connections 8 Parallel Connections 520*145*140mm 3.1Kg
Floodlight Shell PB-AP-FML-B32-120W-2 120W Support 120*1W/PCS 15 Series Connections 8 Parallel Connections 278*292*140mm 3.8Kg
Floodlight Shell PB-AP-FML-B32-150W 150W Support 150*1W/PCS 15 Series Connections 10 Parallel Connections 645*145*140mm 3.6Kg
Floodlight Shell PB-AP-FML-B32-180W 180W Support 180*1W/PCS 15 Series Connections 12 Parallel Connections 395*145*140mm 4.8Kg
Floodlight Shell PB-AP-FML-B32-240W 240W Support 240*1W/PCS 15 Series Connections 14 Parallel Connections 520*292*140mm 5.8Kg
