LED 2.4G Wireless Remote globe type LED replacement bulb for traditional medium screw base lamps. Color temperature can be adjusted from 2700K to 6500K. Consumes 7.2 Watts of power using twenty four x 5630SMD LEDs. Includes hand held RF Variable Color Temperature Remote (Requires 2 x AAA batteries -- Not Included). Control range is 65 feet in open air. Multi-Zone function to control up to four separate zones of E27-VCT6 LED bulbs that can be linked and controlled by one or several wireless remotes or smartphones with the Wi-Fi LED Controller Hub (WIFI-CON -- Sold separately).

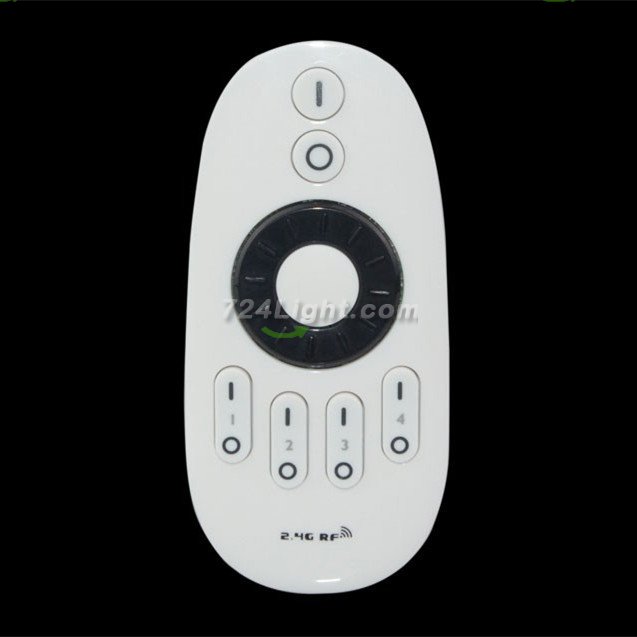

Wireless Remote

1. Master On(-)/Off(O)
Acts as a master On(-)/Off(O) control for all zone-linked VCT lights. Also activates the “Master” function, which allows the remote to control VCT lights in all zones. If a zone is currently active, pressing the master On(-) button restores the “Master” function to the remote.
2. Light Temperature Controls - Left(Warm)/Right(Cool)
Increases(left button) or decreases(right button) the light temperature level between warmer (yellow) and cooler (white) light.
3. Brightness Controls - Top(Increase)/Bottom(Decrease)
Increases(top button) or decreases(bottom button) the brightness level.
4. Selection LED Indicator
Flashes once to indicate when a command has been selected.
5. Zone On(|)/Off(O) - Zones 1-4
Allows up to four “zones” (i.e. channels) of VCT lights to be separately linked and controlled by the remote. Pressing one of the Zone On(|) buttons activates that zone; commands will affect only lights in that zone. Once linked to a zone, lights remain linked until they are unlinked.

Set-Up Instructions
1. Install 2 AAA batteries (not included) in the wireless remote.
2. With power turned off, screw the VCT bulb into a socket.
3. Turn power on and wait until VCT bulb illuminates . If bulb does not illuminate, check socket and power connections.
4. The VCT bulb is ready for linking to the wireless remote.

Safety
DO NOT use with wall dimmers, relays or other control circuits.
DO NOT install with power applied to socket.
DO NOT expose the remote or bulb to direct or indirect moisture.

Linking Lights to Remote Zones

LED light bulbs are controlled exclusively through the multi-zone RF remote. Use the following procedures to establish remote links and send commands.

Linking a Light to a Remote
1.Switch off the main power supply to the light.
2.Restore power and within 3 seconds, choosing one of the "Zone On" (|) buttons, depress the button until the light begins flashing. It will flash white 2 times, indicating that the light is now linked to that numbered zone and can be controlled via the remote.

Activating a Zone
To activate a specific zone, depress the "Zone On" (|) button. The zone is now active and remote commands will only affect lights linked to that zone.

Unlinking a Light to the Remote
1.Determine which zone the light is linked to. This can be done by testing the Zone On/Off controls for each zone on the remote.
2.Switch off the main power supply to the light.
3.Restore power and within 3 seconds, depress one of the "Zone On" (|) buttons until the light flashes 10 times, indicating that the light has been unlinked.
An unlimited number of RGB(W) light strips can be linked to a zone. All the lights linked to that zone will display the commands entered on the wireless remote. Conversely, a single RGB(W) light strip can be linked to multiple remotes. When the light is unlinked, it will be unlinked to all remotes. Note: The wireless remote operates using radio frequency. The remote controller’s use is not restricted by normal obstructions such as walls, doors, etc. Once programmed they can be installed anywhere in range of the remote (up to 65 ft. or 20m).
