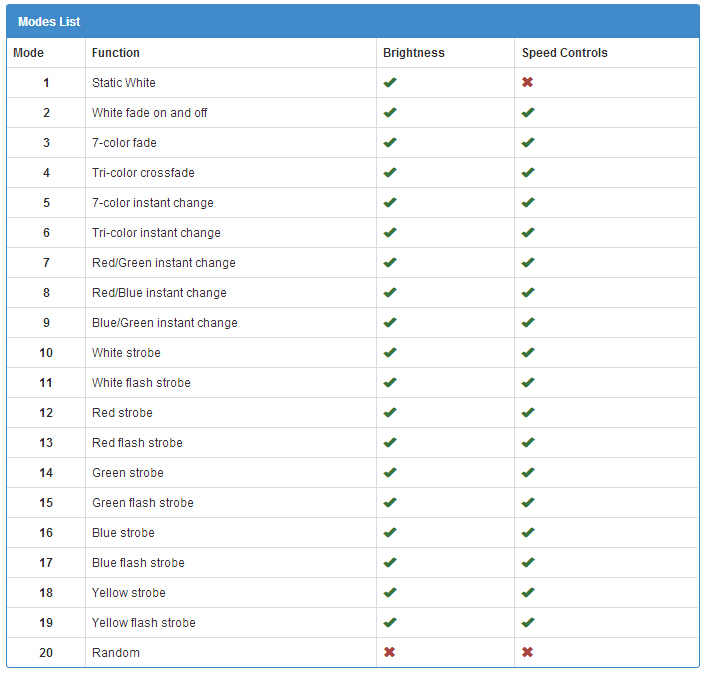

RF Touch Color Replacement Remote for RGB controllers and RGB LED bulbs. Control range of 65 feet in open air. Color selection wheel provides thousands of color options including pure white. 19 dynamic color-changing modes with speed, brightness and ON/OFF controls. Compatible with Wi-Fi LED Controller Hub (WIFI-CON -- Sold separately) for adjusting all controller functions using a Smartphone or tablet running Android or iOS. Search for the free app 'milight' in your device's marketplace.

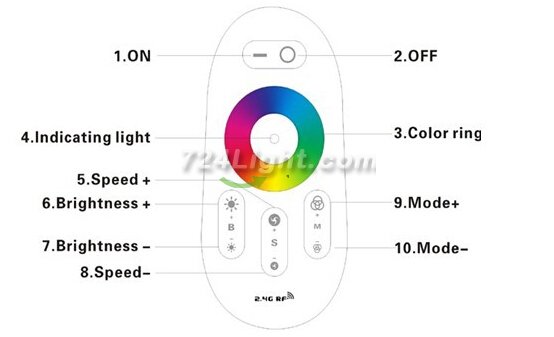

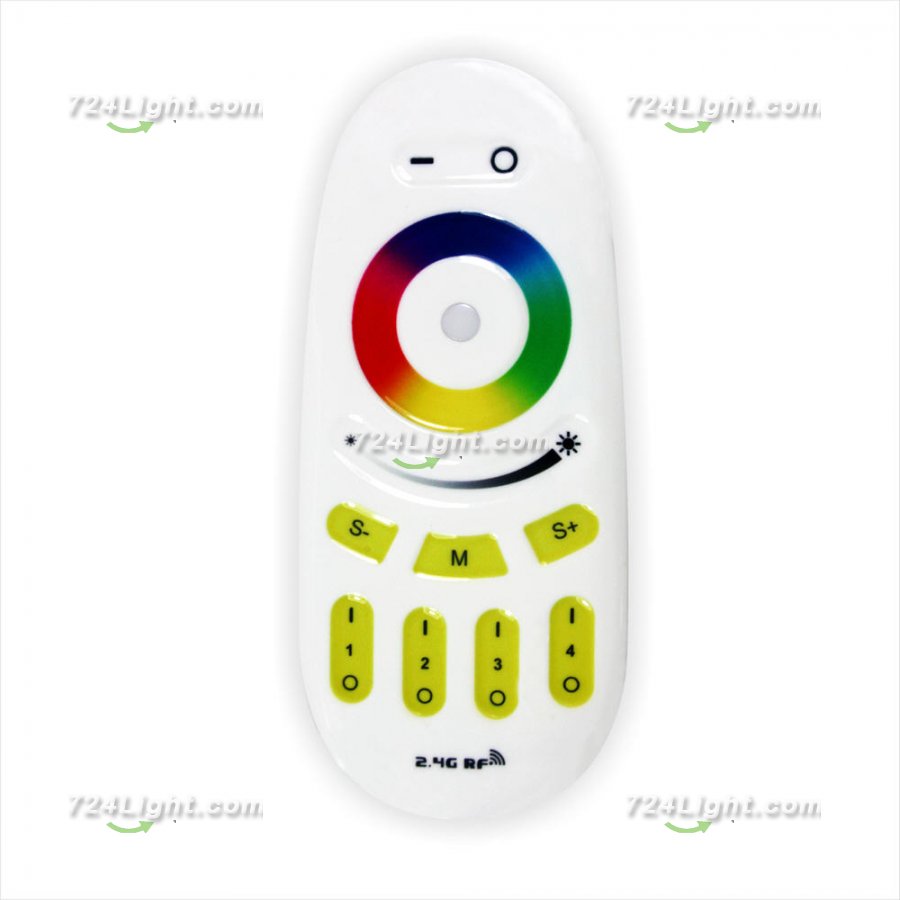

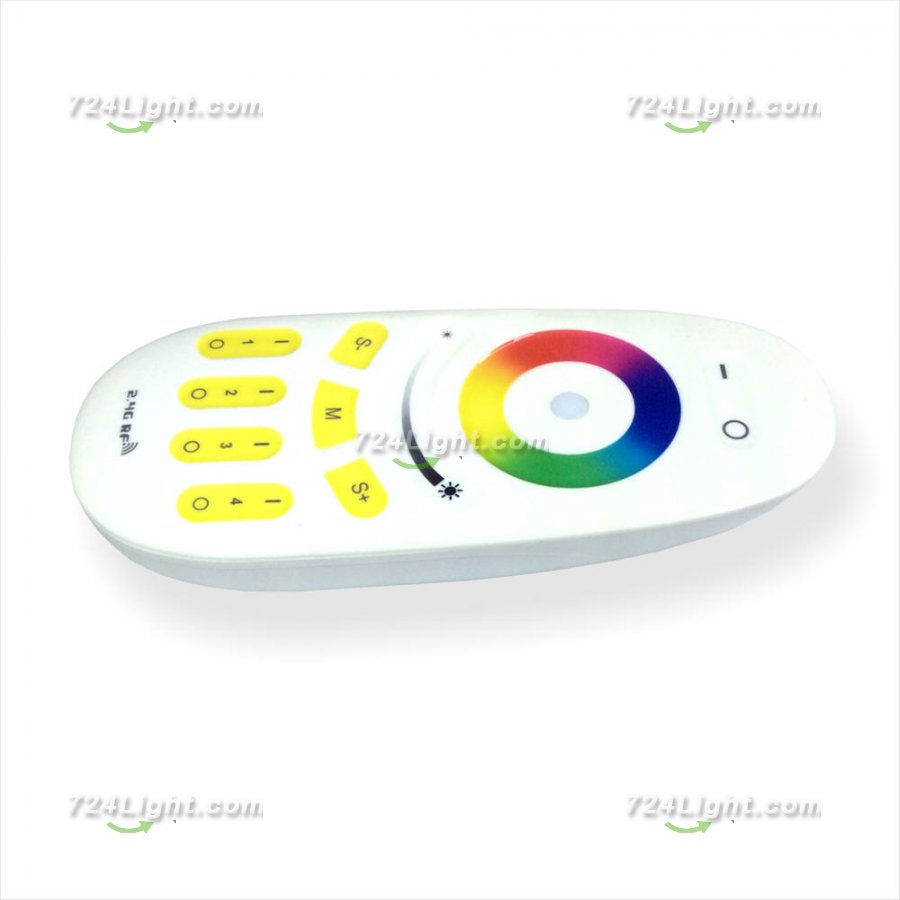

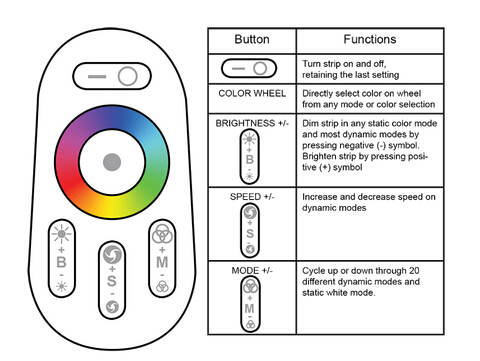

RF Touch Color Remote Control
Controller Pairing The Touch Remote features RF remote to controller device pairing to help eliminate interference from other nearby units. If you wish to control several controller devices from a single RF remote, the controllers first must be re-programmed. The easiest and fastest way to re-program several controller devices at once is to have them share a power supply or all plug in to a single power strip. Once programmed you can provide power as you would otherwise, sharing is only needed for the programming phase to ease the process -- Re-programming can be done one device at a time also.
Programming Procedure 1. Wire all controller devices to one power supply or power strip but don’t turn it on yet. 2. With the power off, grab the remote. 3. Turn on the power supply 4. Within 3 seconds of providing power press the button button once. If programming was successful any connected light strips should blink twice slowly and remote will immediately be functional.

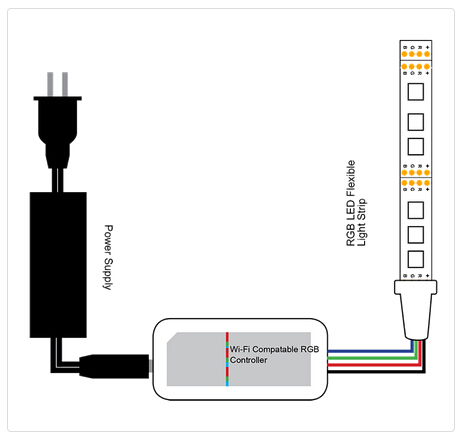

Instructions Pre-Test & Configure 1.Remove strip from reel and make connections to power supply and controller (see “Method 1†diagram). Briefly turn on strip using the included remote controller to ensure proper operation of the strip, power supply, controller, and remote. 2.Choose your desired yet suitable location for the power supply and controller. For use in dry locations only. 3.Ensure all installation surfaces are clean and dry. 4.Begin to remove strip’s backing while adhering to desired mounting surface. Press firmly to secure strips to surface. Mount controller and power supply to desired location.
Safety 1.DO NOT connect controller or strips directly to 120V AC power. This controller requires a 12V or 24V DC power supply. 2.DO NOT exeec max load of 18 Amps, overloading the controller may cause overheating, shorting, and possibly failure of controller. 3.Be sure the power supply is not plugged into an outlet before connecting or disconnecting any of the systems components. 4.DO NOT expose the controller and light strip to direct or indirect moisture. Always observe proper polarity when connecting power and load.
