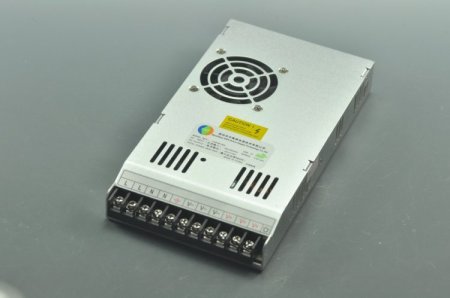

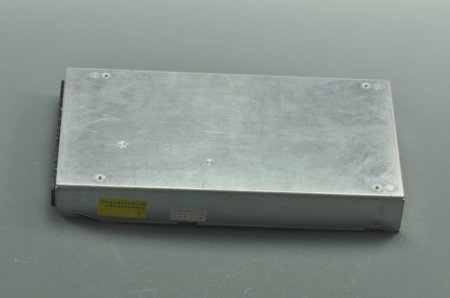

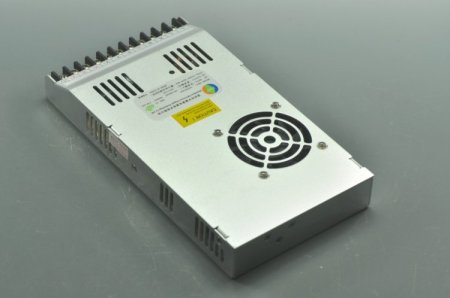

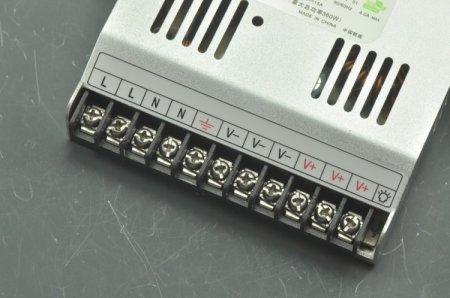

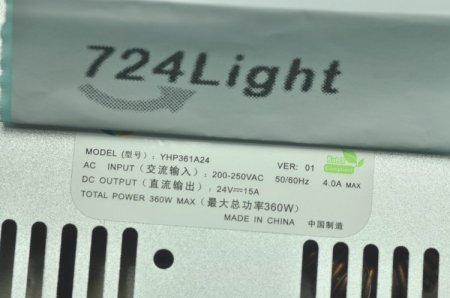

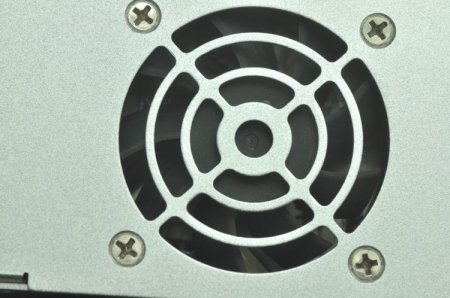

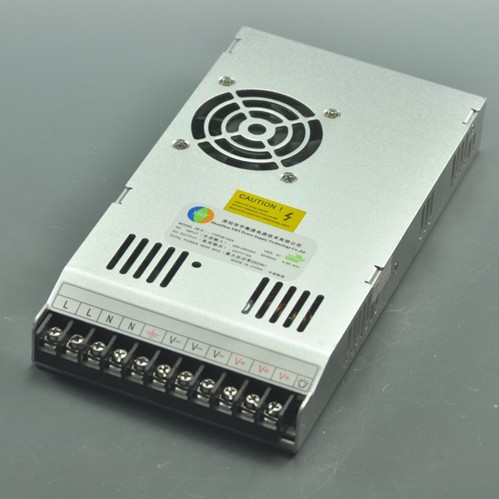

360 Watt LED Power Supply 24V 15A LED Power Supplies AC 200 - 250V For LED Strips LED Light
(image for) 360 Watt LED Power Supply 24V 15A LED Power Supplies AC 200 - 250V For LED Strips LED Light
(image for) 360 Watt LED Power Supply 24V 15A LED Power Supplies AC 200 - 250V For LED Strips LED Light
(image for) 360 Watt LED Power Supply 24V 15A LED Power Supplies AC 200 - 250V For LED Strips LED Light
(image for) 360 Watt LED Power Supply 24V 15A LED Power Supplies AC 200 - 250V For LED Strips LED Light
(image for) 360 Watt LED Power Supply 24V 15A LED Power Supplies AC 200 - 250V For LED Strips LED Light
(image for) 360 Watt LED Power Supply 24V 15A LED Power Supplies AC 200 - 250V For LED Strips LED Light
(image for) 360 Watt LED Power Supply 24V 15A LED Power Supplies AC 200 - 250V For LED Strips LED Light
(image for) 360 Watt LED Power Supply 24V 15A LED Power Supplies AC 200 - 250V For LED Strips LED Light
  • Model: GY-PS-YLY-E-360-24
  • Shipping Weight: 0.7 lbs
  • In Stock: 987

360 Watt LED Power Supply 24V 15A LED Power Supplies AC 200 - 250V For LED Strips LED Light

$54.90
(0  Reviews) Add Your Review
ModelGY-P24V15A-E OutputDc Voltage24VRated Current15ARated Power360WRipple&Noise180mvp-pVoltage ADJ.Range21.6-26.4VVoltage Tolerance±1.0%Line Regulation±0.5%Load Regulation±0.5%Setup,Rise Time300ms,50ms/230VAC 800ms,50ms/115Vac at full loadHold Up Time(typ.)90ms/230vac 12ms/115vac...
Add to Cart:
  • This product was added to our catalog on Tuesday 03 December, 2013.
Description
ModelGY-P24V15A-E
OutputDc Voltage24V
Rated Current15A
Rated Power360W
Ripple&Noise180mvp-p
Voltage ADJ.Range21.6-26.4V
Voltage Tolerance±1.0%
Line Regulation±0.5%
Load Regulation±0.5%
Setup,Rise Time300ms,50ms/230VAC 800ms,50ms/115Vac at full load
Hold Up Time(typ.)90ms/230vac 12ms/115vac At Full Load
inputVoltage RangeAC 200 - 250V
Frequency Range47-63Hz
Efficiency(typ.)81%
Ac Current(typ.)5.6A/115V  2.8A/230Vac
Inrush currentCold Start  25A/115Vac 50A/230V
leakage Current3.5mA/240VAC
ProtectionOverload105-150% rated output power
protection type:hiccup mode,recovers automatically after fault condition
115-135% rated output voltage
Over Voltage115-135% rated output voltage
Protection Type:hiccup mode,recovers automatically after fault condition
environmentWorking Temp -10~+60°c
Working Humidity20-90%rh non-condesing
Storage Temp,Humidity -20~+85°c,10-95%rh
Temp.Coefficient±0.03%°c(0-50°c)
Vibration10-500hz
Safety&EMCsafety standardCE RoHS
withstand voltageI/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
Isolation ResistanceI/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
EMI Conduction&radiationDesign refer to GB4943,UL60950,EN60950
EMC StandardDesign refer to GB9254,EN55022 Class A
DimensionL222*W120*H32mm
Weight0.7kg
