Technical Parameters
● working temperature: -20-60 ℃
● supply voltage: DC12-24V
● output: 4 channels

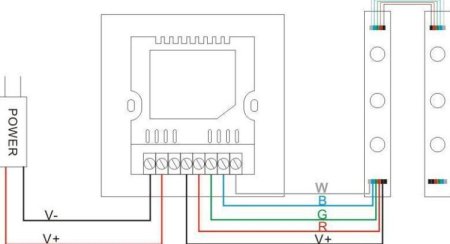

● connection mode: common anode
● external dimension: L86 Χ W86 Χ H36 mm
● packing size: L115Χ W110 Χ H56 mm
● net weight: 128g
● gross weight: 187g
● static power consumption: <1W
● output power: 12V<192W,24V<384W
6 Modes
# Mode Remark
1 RGB 3color jump Speed adjustable
2 RGB 3color strobe Speed adjustable
3 RGB 3color flash Speed adjustable
4 7color jump Speed adjustable
5 7color strobe Speed adjustable
6 7color flash Speed adjustable
