Wavelength Options: 380nm-385nm
Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.
IP Grade avaliable : Non-Waterproof , IP65 Waterproof , IP67 Waterproof , IP68 Waterproof

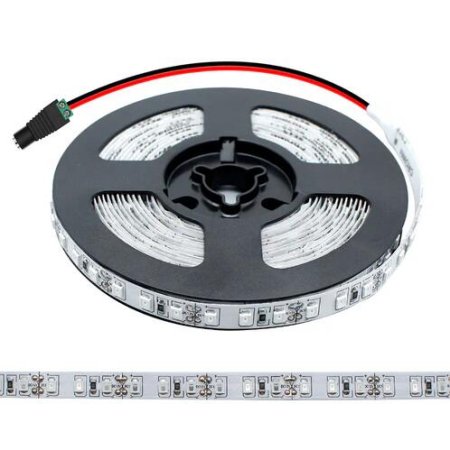

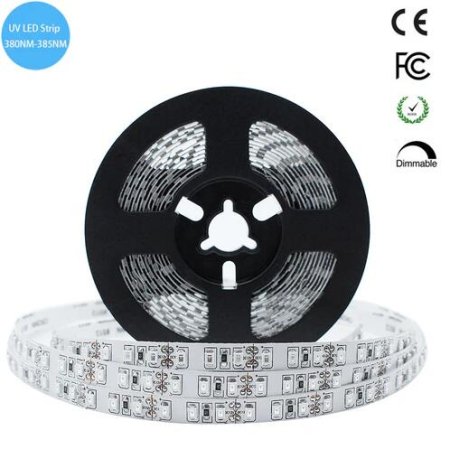

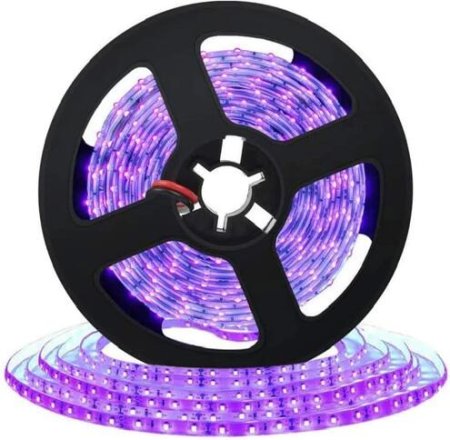

365nm-370nm & 380nm-385nm SMD3528-600 12V DC <48W, 4Amp UV (Ultraviolet) LED Strip Light Non-Waterproof Flexible White PCB Strip Light Ideal for UV Curing, Currency Validation, Mosquito killer, Fluorescence disclosing and Medical Field
Note: Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.
Strip Light Specification for 5 Meter Roll
LED Type: UV SMD3528
LED QTY.: 120LED/Meter
Input Voltage: 12V DC
Wattage (max): 9.6Watt/Meter
Cuttable: Every 3LED per 1'' can be cut

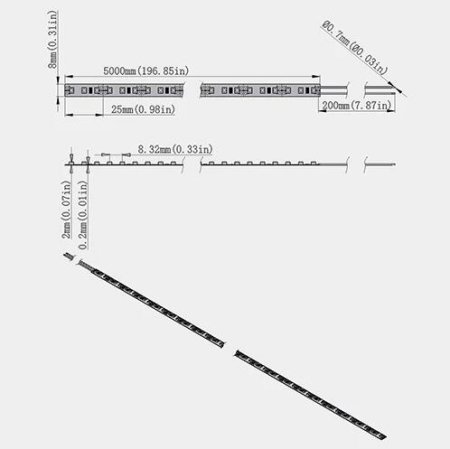

Size(W*H/mm): 8*2
Weight: 0.15kgs per 5meter per roll

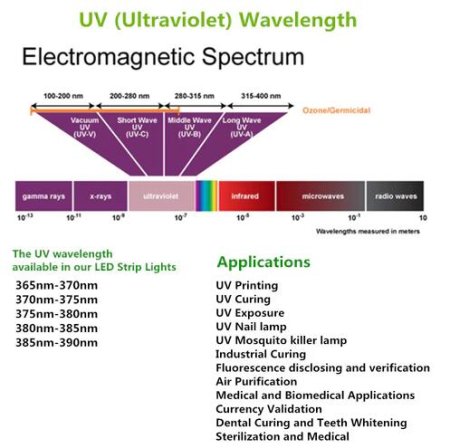

Wavelenght: 365nm-370nm,, 380nm-385nm
PCB Background color: White
PCB Backing: Double-sided Adhesive backing
Beam Angle: 120°
Dimming: PWM dimmable(more information please refer to different Dimmer applications)
Waterproof Type: Non-waterproof(indoor use)
Pre-wiring: 20cm Red/Black Lead wire at one end of the strip
UV LED Lights Application
UV Printing
UV Curing
UV Exposure
UV Nail lamp
UV Mosquito killer lampV
Industrial Curing
Fluorescence disclosing and verification
Air Purification
Medical and Biomedical Applications
Currency Validation
Dental Curing and Teeth Whitening
VSterilization and Medical
Warnings and Handling Instructions on UV LED Lights
UV-LEDs emit invisible ultraviolet radiation when in operation, which may be harmful to eyes or skin, even for brief periods. Do NOT look directly into the UV-LED during operation. Be sure that you and all persons in the vicinity wear adequate " UV " Safety protection for eyes and skin. If you incorporate a UV-LED into a product, be sure to provide WARNING labels.
