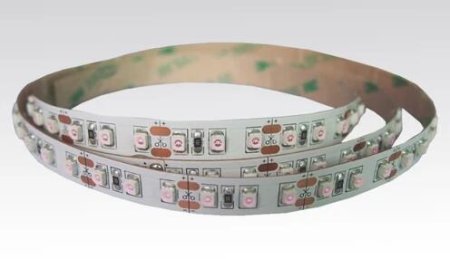

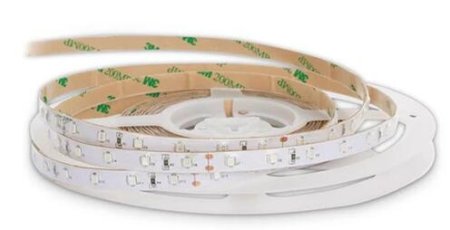

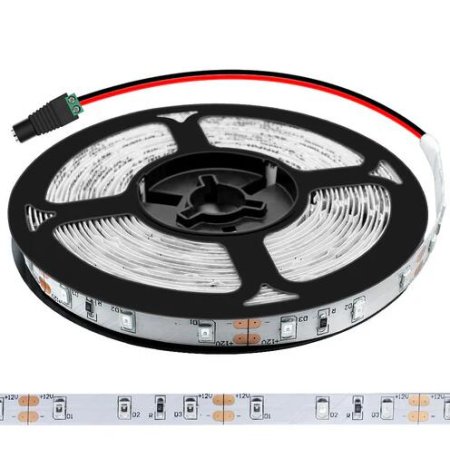

DC12V SMD2835-300-IR InfraRed 850nm/940nm IR LED Strip, 60LEDs 12W Per Meter Flex LED Tape
NOTE:
1) The Infrared LED Strip is invisible light
2) To put the IR strip under the Camera with Night Vision (NO IR filter), you can see red spot
Technical Specification
Wattage: 12W/Meter
Voltage: 12VDC
Beam Angle: 120°
Dimming： Yes (need to work compatible dimmer, and driver）
LED Type: SMD2835
Strip Section: 3LEDs per 2''
Width x Height: 8mm by 2mm (non-waterproof)
LED QTY.: 60LEDs/meter
Wavelength: 850nm/940nm Infrared

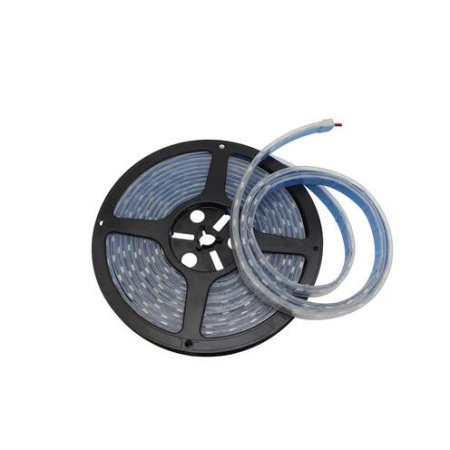

Protection Grade Options: Non-waterproof IP33, Waterproof IP65, IP67 and IP68
FPCB Background：White
Other Features
● PCB Backing :Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68 (2pcs every meter).
● Lead : Single color strip has two contacts(V+,V-) and is Polarity Sensitive.

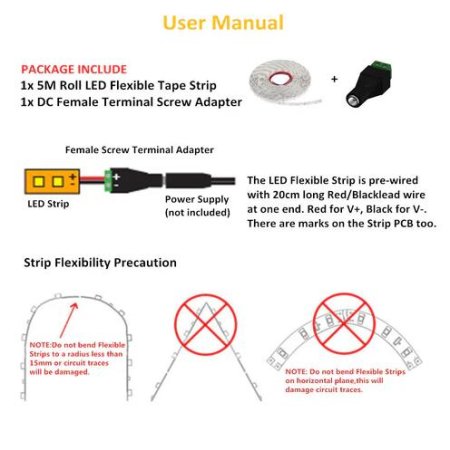

● Pre-wiring : 20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip.
● Weight : 0.2kgs/roll for non-waterproof; 0.3kgs/roll for IP65/IP67; 0.5kgs/roll for IP68.
SMD2835, 300Leds/reel, InfraRed (850nm/940nm), Flexible LED Strip, 3-LED Cuttable, DC12V, 60W/reel, 5A/reel, 120°, 5m/reel, width 8mm, On PCB with self-adhesive backing .
This product need a 12v 6amp 72watt LED power supply to power 1 reel (5 meters). And if you will cut the strip light, you can use some 8mm LED Strip Connectors for re-connection.
These 12 volt Flexible LED Strips are sold in 0.5,1,2,3,4 and 5 meters, if you need custom length, please contact us.
Applications
*For surveillance or security
*For the multitouch display
*For Night Version Light
Features
*Can be cut into 3-LED segments
*Adhesive backing
*12VDC Operation
*Dimmable - See our Dimmer Selection
Safty Tips

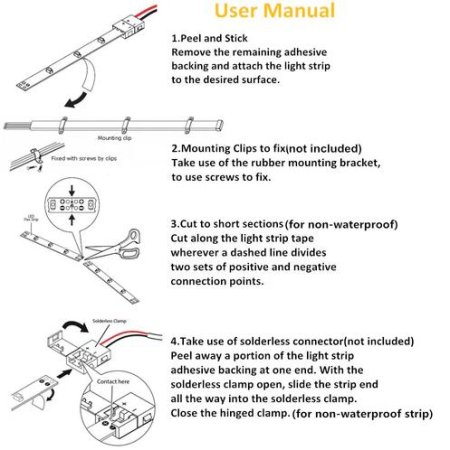

*Always disconnect power supply before cutting/connecting LED Light Strips.
*Do not crimp strip tape, attempt to bend strips width-wise, or length-wise to a radius less than 15mm
*Do not connect LED Light Strips directly to 120V AC power.
*Apply power to test LED Light Strips before mounting.
