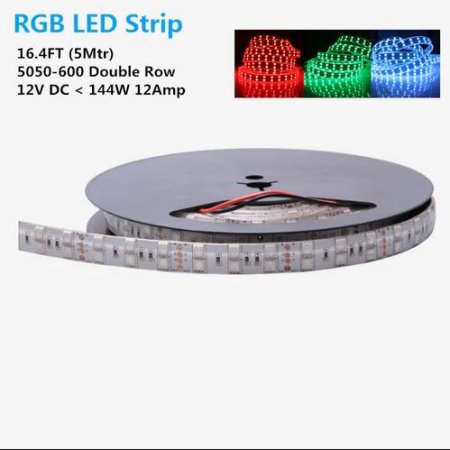

16.4FT/5M RGB LED Strips Lighting, SMD5050-600 120 LEDs Per Meter Double Row Flexible LED Strips, 15mm Width

* RGB Color Changing LED Strip

* 5050-600LED per 5 meter/roll High Density Double Row Strip, 12V DC < 144W 12Amp

* White PCB with adhesive backing

* IP grade: Non-waterproof IP33, Waterproof IP65, IP67 and IP68

* Need to work with RGB color changing LED Controlled (not included)

* The strip is 12V DC operating, be rated in 144W, we suggest to use a bigger transformer say 180Watt 15Amp to power it (not included)


16.4FT/5M RGB Color Changing LED Lighting Strip, SMD5050-600 120 LEDs Per Meter Double Row Flexible LED Strips, 15mm Width


Technical Specification

Wattage 28.8W/Meter Voltage 12V DC

Beam Angle 120° Dimming Yes

LED Type SMD5050 Strip Section 6LED per 2inch

WxH 15x2(mm) LED QTY.: 120LED/Meter

Length Available 0.5 to 5 Meter Available Color RGB color

Protection Grade Non-waterproof, IP65, IP67

PCB Background White


Other Features


Item DC12V SMD5050-600 Tri-Chip Double Row Flexible LED Strips 120LEDs 28.8W Per Meter

Weight 0.35kgs/roll for non-waterproof; 0.5kgs/roll for IP65/IP67

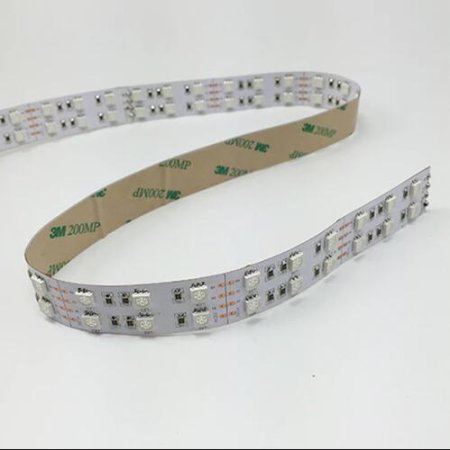

PCB Backing      Adhesive backing for Non-waterproof and waterproof IP65/IP67

Lead Wire RGB color strip has 4 contacts(V+,R-, G-, B-) and is Polarity Sensitive.

Pre-wiring 20cm(8'') RGBBlack lead wire is pre-soldered at one end of the strip


Package included:

• 1x 5meter per roll LED Flexible Strip
