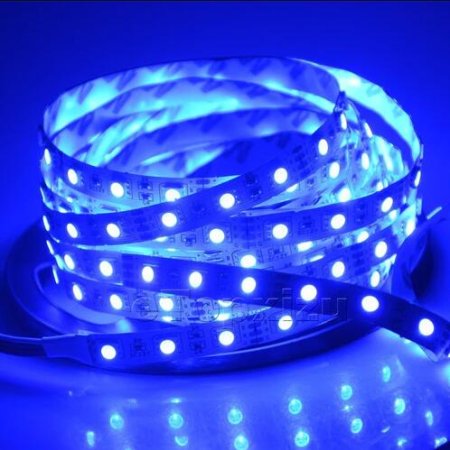

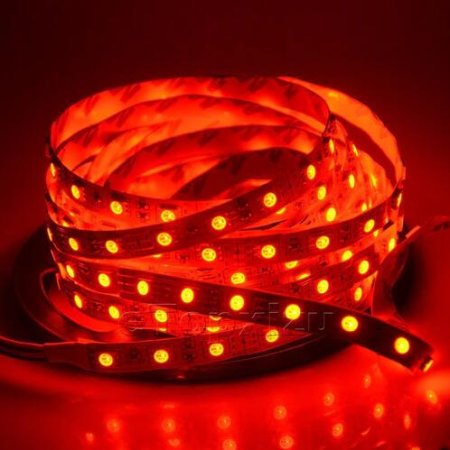

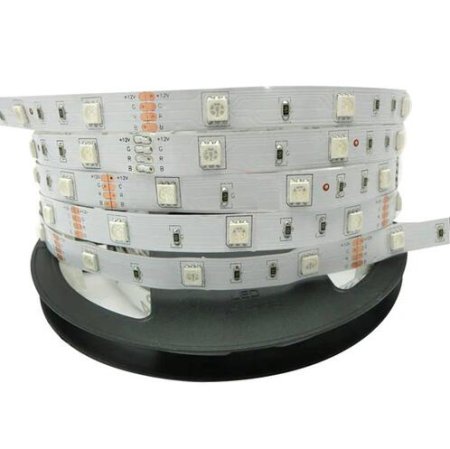

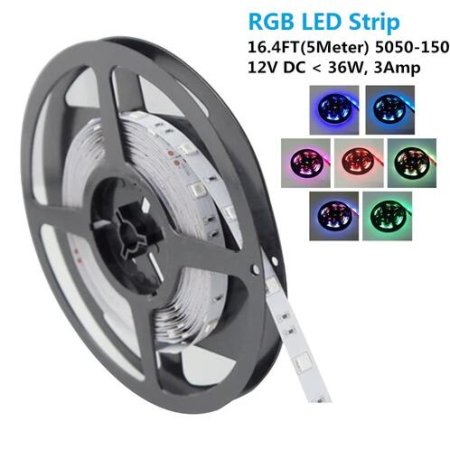

SMD5050-150 RGB Color Change Tri-Chip Flexible LED Strips 30 LEDs Per Meter

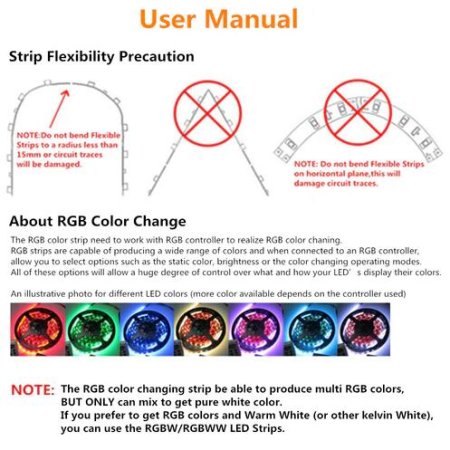

*RGB Color Changing Strip
*Length: SMD5050-150LED per 16.4FT(5Mtr)
*Power: 12VDC <36W 3Amp
*12V DC operating, need to work with 12V transformer if run to wall oulet (non included)
*IP Protection:Non-Waterproof, Waterproof IP65, IP67 and IP68 available
*Control: Need to work with matched RGB controller(non included)

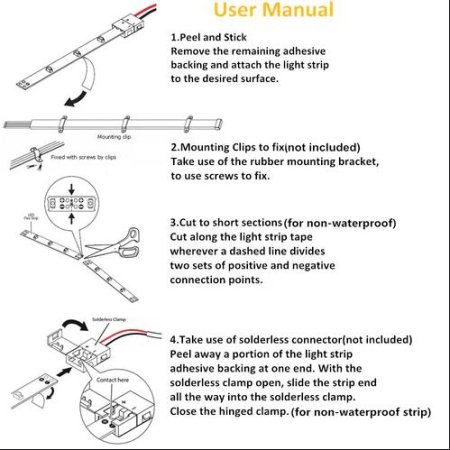

*Easy Installation: With double-sided adhesive tape back, very sticky that fit for various mounting materials
Technical Specification
Wattage 7.2W/Meter Voltage 12V DC
Beam Angle 120° Dimming Yes
LED Type SMD5050 Strip Section 3LED per 4inch
WxH 10x2(mm) LED QTY.: 30LED/Meter
Length Available 5 Meter Color RGB
Protection Grade Non-waterproof, IP65, IP67, IP68
PCB Background Yellow, White, Black
Other Features
Item RGB Color Changing 12VDC < 36W, 3Amp SMD5050 300 LED flexible strip, 5meter per roll
Weight 0.15kgs/roll for non-waterproof; 0.25kgs/roll for IP65/IP67; 0.5kgs/roll for IP68.
PCB Backing Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68 (2pcs every meter).
Lead Single color strip has two contacts(V+,V-) and is Polarity Sensitive.
Pre-wiring 20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip
Package included:
• 1x 5meter per roll LED Flexible Strip
