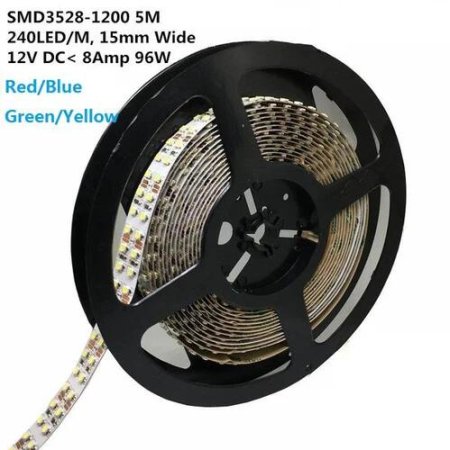

12V Red/Blue/Green/Yellow Dimmable LED Strip Light 15mm Double Row SMD3528-1200 1200LM 240 LEDs/Mtr

PECIFICATION

Item: 12VDC SMD3528 LED flexible strip, 1200LED per 5meter per roll

LED Type: single color SMD3528

LED QTY.: 240LED/Meter

Input Voltage: 12V DC

Wattage (max): 19.2Watt/Meter

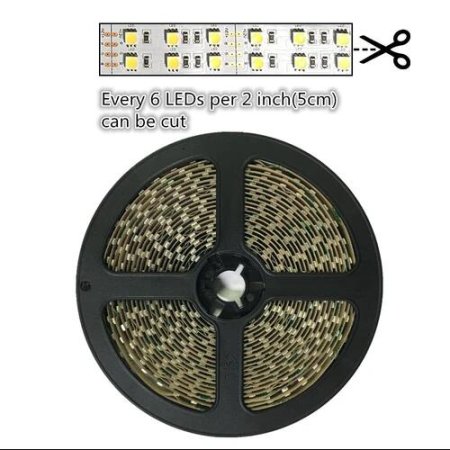

Cuttable: Every 6LED per 1'' can be cut

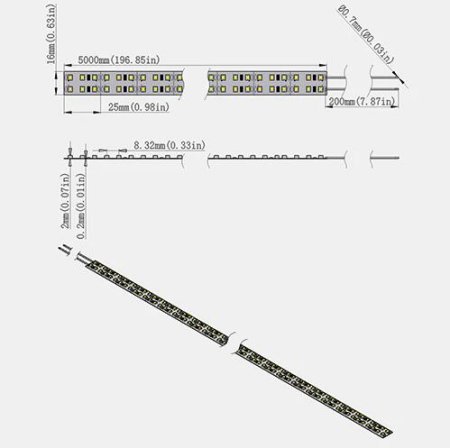

Size(W*H/mm): 15*2

Weight: 0.2kgs per 5meter per roll

Lumen Output: 1200LM/Meter (max)

Light Color: Red，Blue，Yellow，Green

CCT: 2700K-6500K

PCB color option: White

PCB Backing: Double-sided Adhesive backing, extra rubber mounting clip for IP67 and IP68

Beam Angle: 120°

Dimming: PWM dimmable(more information please refer to different Dimmer applications)

Waterproof Type: Non-waterproof(indoor use), Waterproof IP65, Waterproof IP67

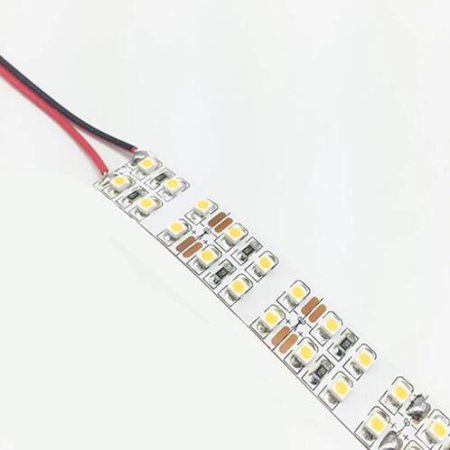

Pre-wiring: 20cm Red/Black Lead wire at one end of the strip

Packing: 5meter per roll packed in a static bag

NOTE:

* This 15mm wide strip has no comptaible solderless connector.

* When the strip make into a long run in 5meter, for there is voltage drop, which will cause some lost in brightness.
