FEATURES:
New !
In excellent condition
Long lasting (Last up to 100000hours)
Low Power Consumption
Intensely Bright
Low Forward Voltage Operated
Instant Light (Less than 100ns)
SPECIFICATIONS:

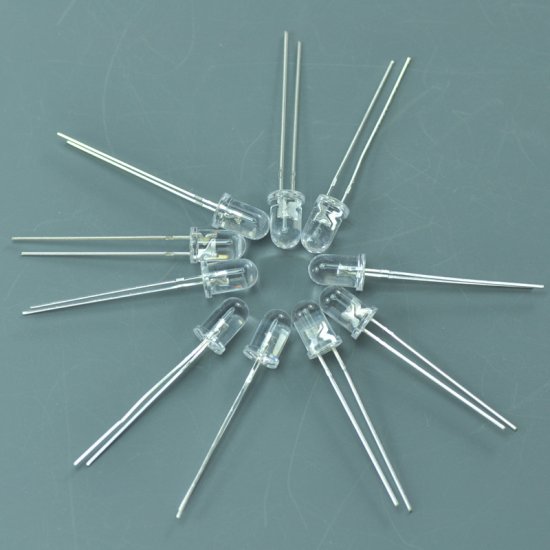

Led size: 5mm Â
Viewing Angel:20 Degree  Â
Source Material:AlGaInP Â Â
Emitting Colour: RED
LENS Type:Water clear
Luminous Intensity-MCD: Min: 4000mcd  Max: 8000 mcd
Reverse Voltage:5.0 V
DC Forward Voltage: Typical:2.0 V Max: 2.3V
DC Forward Current:20mA
Viewing Angle:20±10 degree
Lead Soldering Temp:260°C for 5 seconds
Intensely Bright
Absolute Maximum Ratings at Ta=25°C
| Items |
Symbol |
Absolute maximum Rating |
Unit |
| Power Dissipation |
PD |
100 |
mW |
| Forward Current(DC) |
IF |
20 |
mA |
| Peak Forward Current* |
IFP |
30 |
mA |
| Reverse Voltage |
VR |
5 |
V |
| Operation Temperature |
Topr |
-40~85 |
℃ |
| Storage Temperature |
Tstg |
-10~100 |
℃ |
| Lead Soldering Temperature |
Tsol |
Max.260°C for 5 sec Max. (3mm from the base of the epoxy bulb) |
*Pulse width≦0.1msec duty≦1/10
Electrical/Optical Characteristics at Ta=25°C
| Items |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
| Forward Dissipation |
VF |
IF=20mA |
1.9 |
/ |
2.3 |
V |
| Reverse Current(DC) |
IR |
VR=5V |
/ |
/ |
10 |
uA |
| Dominant Wavelength |
λD |
IF=20mA |
625 |
/ |
635 |
|
| Luminous Intensity |
IV |
IF=20mA |
4000 |
/ |
8000 |
mcd |
| 50% Power Angle |
△θ |
IF=20mA |
/ |
±10 |
/ |
deg |
