• Compatible with Mi-Light / MiBoxer 2.4GHz series remote
• Control Distance: 30m
• Brightness and color temperature adjustable
• Switching 3 output mode via one button (RGB / RGBW / RGB+CCT)
Available Downloads:
Manual

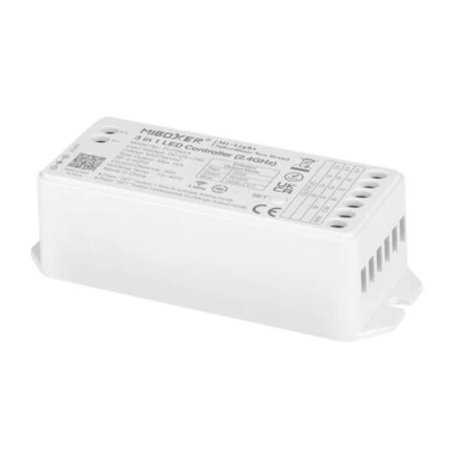

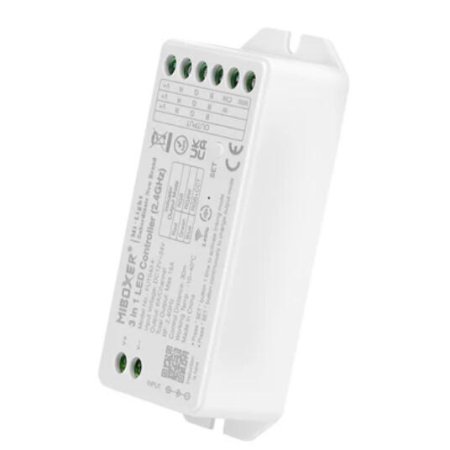

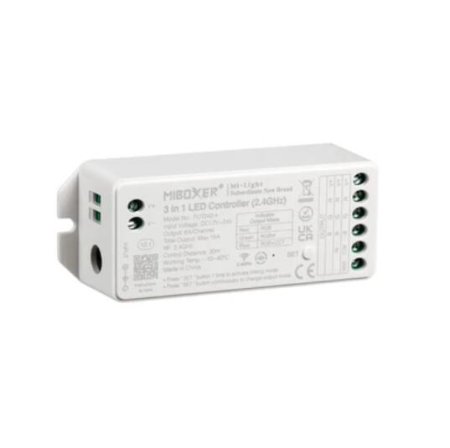

3 in 1 LED Controller (2.4GHz)
One controller = triple function (RGB / RGBW / RGB+CCT) Decrease the model number of your stock, manage stock easily

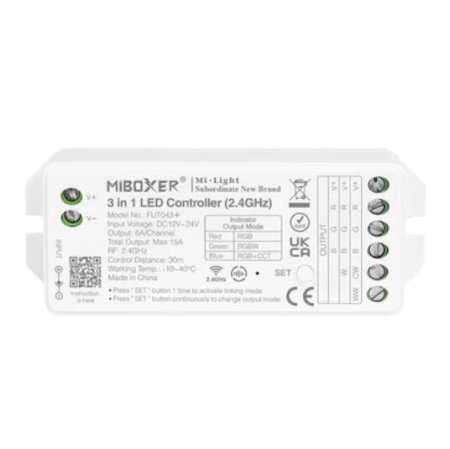

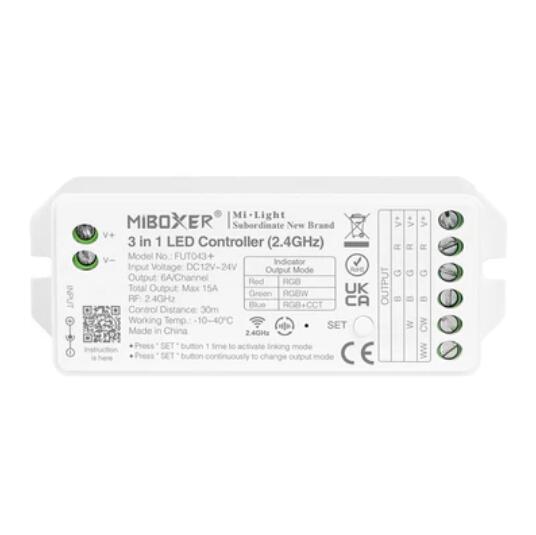

Product Parameters
Product Name :
3 in 1 LED Controller (2.4GHz)
Model No. :
FUT043+
Input Voltage :
DC12~24V
Output :
6A/Channel
Total Output:
Max 15A
RF :
2.4GHz
Control Distance :
30m
IP Rate:
–
Working Temperature :
-10~40°C
Output connection :
Common anode

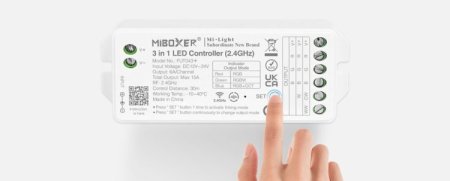

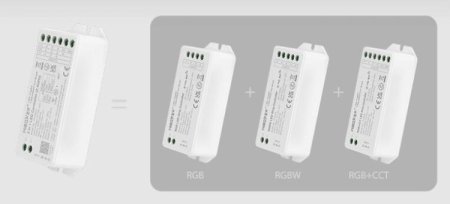

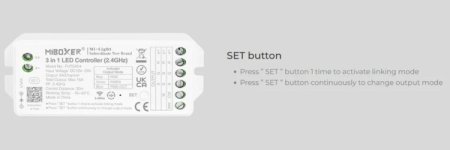

Switching 3 output mode via one button
RGB RGBW RGB+CCT
Multiple Functions, All-in-One Model
* 2.4GHz RF Remote control (Control distance 30m), the remote need to purchase separately
* 16 Millions of colors to choose
* Saturation adjustable, meet the diversified lighting
* Color temperature adjustable
* Brightness adjustable, smooth transition without flicker

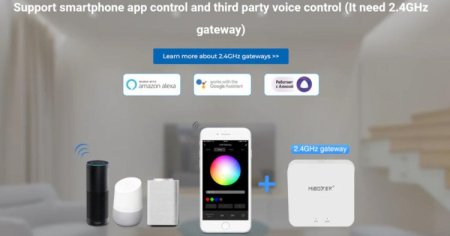

* Support Smartphone APP control, but need to use 2.4G Gateway, which also need to purchase separately.
Compatible with the following Remotes/Gateway/DMX512 Transmitter
FUT088--- FUT092--- FUT089--- WL-Box2 (Gateway)--- FUTD01
Signal transmitting
One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.
Modes synchronization
Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.
PWM high frequency / low frequency
High frequency / low frequency can be switched
