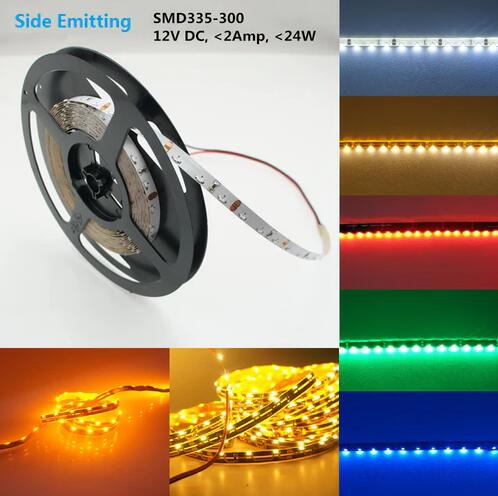

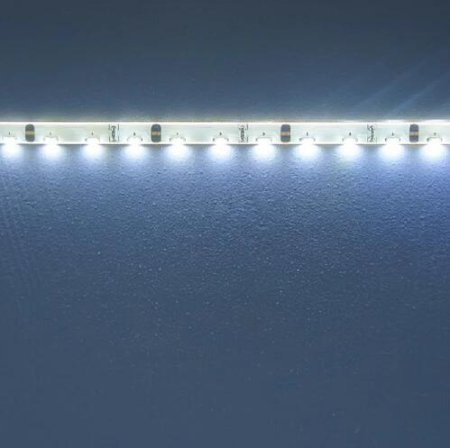

SMD335-300 flexible LED light strip with SMD 335 LEDs. Available in lengths of 0.5m(1.64ft), 1m(3.28ft), 2m(6.56ft), 3m(9.84ft), 5m(16.4ft) with White . Non-waterproof and IP65 flexible light strips will come with adhesive backing, IP67 strip will come with mounting clips.Can be cut into 3-LED segments for 12V DC operation version.
SPECIFICATION
Item ： 12VDC SMD335 side view LED flexible strip, 300LED per 5meter per roll
LED Type ：Side View SMD335
LED QTY：. 60LED/Meter
Cuttable： Every 3LED per 2'' can be cut
Size(W*H/mm) ：8*2
Weight： 0.15kgs per 5meter per roll(non-waterproof)
Input Voltage ：12V DC
Wattage (max)： 4.8Watt/Meter
Lumen Output ：200LM/Mtr @Warm White,220LM/Mtr @Natural White,250LM/Mtr @Pure White

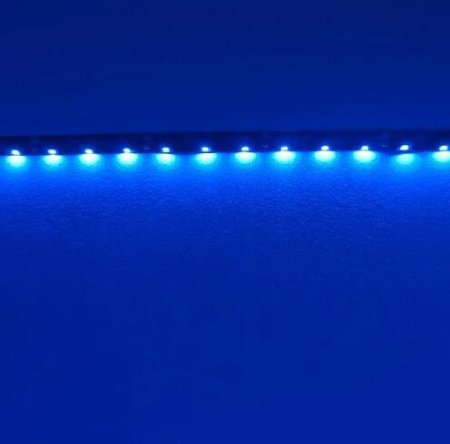

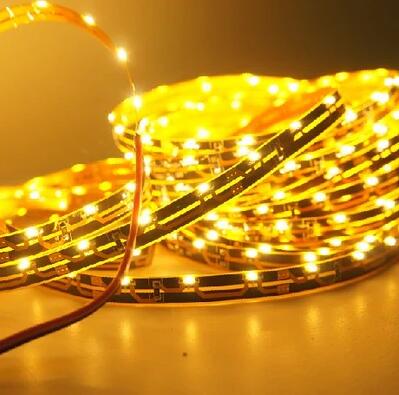

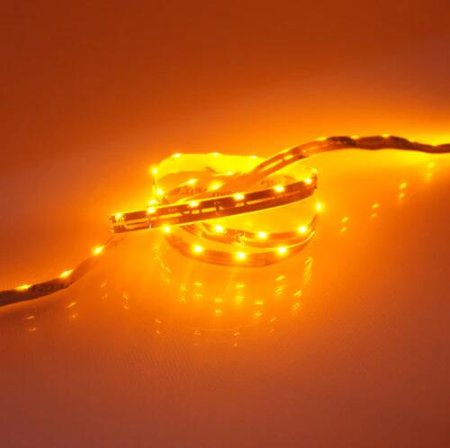

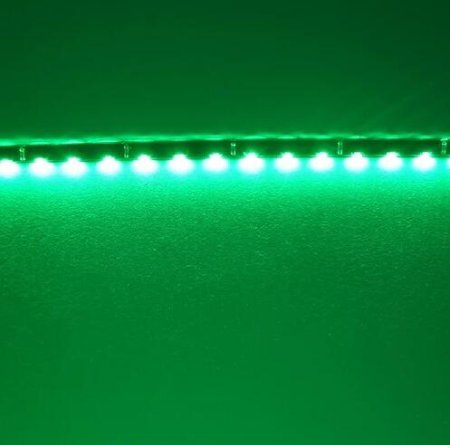

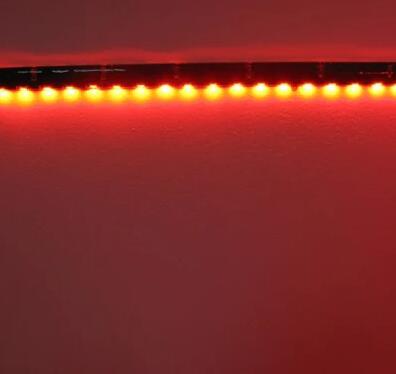

Light Color Pure White, Warm White, Natural White, Red, Green Yellow Blue
CCT 2700K-6500K
PCB color option： White

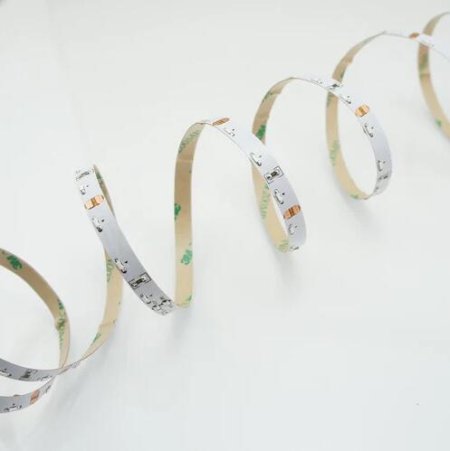

PCB Backing ： Adhesive backing for Non-waterproof and waterproof IP65, Mounting bracket for IP67 and IP68
Beam Angle ：120°
Dimming ：PWM dimmable
Waterproof Type ：Non-waterproof(indoor use), Waterproof IP65, If you need IP67, IP68 water proof, please contact us.
Pre-wiring： 20cm Red/Black Lead wire at one end of the strip

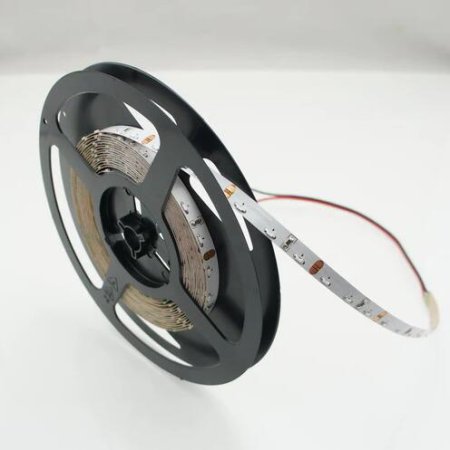

Packing： 5meter per roll packed in a static bag
DIMENSIONAL DRAWING
TIPS:
SMD335, 300Leds/reel, Flexible LED Strip, 3-LED Cuttable, DC12V, 24W/reel, 2A/reel, 120°, 5m/reel, width : 8mm, On PCB with self-adhesive backing .
Non-waterproof & waterproof are available.

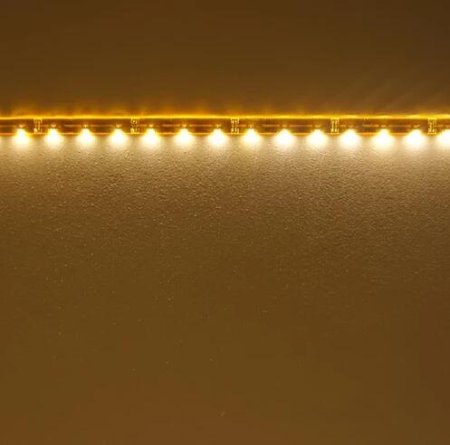

White colors are available in Pure White (5500-6500K), Warm White (3000-3500K), and Natural White (4000-4500K). Contact us if you have special color temperature requirement.
The delivery date of Nature White(4000-4500K) would be longer.
This product need a 12v 3amp 36watt LED power supply for 1 reel (5 meters) or you can use 12v 5amp 60watt LED Adapter to run 2 reels (10meters). If you will cut the strip light, you may need some 8mm LED Strip Connectors for it.
These 12 volt Flexible LED Strips are sold in 0.5, 1, 2, 3 and 5 meters(1 meter is equivalent to 3.28 feet), if you need custom length, please contact us.
