The
70W SPL-A-G-051-series LED Suspension Linear is an energy-efficient, low maintenance alternative to traditional linear fluorescent in a variety of commercial, low bay lighting applications. Compact and sleek in design, the linear features a long rated life of 50,000 hours . Ideal for industrial, commercial and light assembly applications. AC90-240 input ,Consumes
70 Watts of power using
288PCS high power 5050 SMD LEDs. welcome wholesale , also If need any length and color please contact info@724light.com
| Product Specifications |
|---|
| Part number: | SPL-A-G-051-8F |
| Mount Type: | Suspended |
| Finish: | Silver Oxide |
| Length: | 96Â inch(2.42meter) |
| Operating Voltage: | 90~260 VAC |
| Power Consumption: | 70W |
| Replacement For: | T8 105W to 110W Fluorescent |
| Color option: | Pure White , Warm White,Cool White,Double White(PW+WW) |
| Color Temperature: | Pure White(6000-6500k),Warm White(2700-3500k),Cool White, |
| Lumen: | Pure White:6912 Lumens
Warm White:6612 Lumens |
| LED Type: | SMD5050 |
| LED Quantity: | 288 |
| Beam Angle: | Approx. 120° |
| CRI: | 80 CR |
| Operating Temperature: | -40~+45 °C |
| Power Input: | Directly Use AC 90~240V |
| Dimmable: | No |
| Power Factor: | 0.97 |
| Connector: | OneSide AC 3Pin Power CordÂ
Brown:L(LIVE)
Blue: N(NEUTRAL)
Yellow/Green:E(EARTH) |
| Lens: | Frosted |
| Lifetime: | 50000 Hours |
| Standards And Certifications: | CE/FCC/ROHS Compliant |
| Warranty: | 4 Years |
| Weight : | 3Â kg |

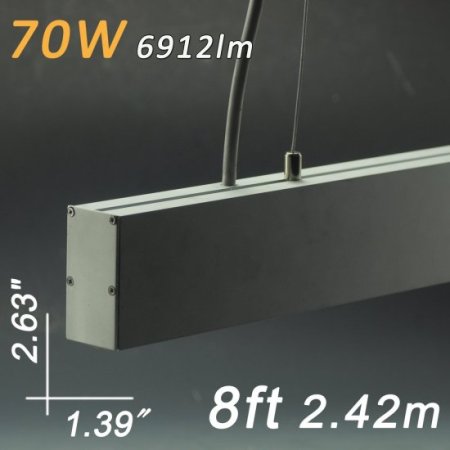

| Dimensions(L*H*W): | 96" x 2.63"x 1.39"(2440mm x 75mm x 55mm) |
| Packaging list : | 1* LED Linear (driver include)
2 * Droplight Accessories package(steel line and Binding screw) |
| Housing: |
|---|
- 6063 Rugged extruded aluminum housing.
- Each LED module is equipped with an upper limit thermal control to ensure fixture lifetime throughout the temperature range.
|
| Electrical: |
|---|
- 120-277 volt.
- System power factor is >90% and THD <20%.
|
| Mounting : |
|---|
- Suspended the steel line, place the Gem Bar (with ground screw inserted)into the Canopy over top , and attch all components together with a countersunk,connect AC power cord
|
| Controller optional: |
|---|
Default without controller - 1: Motion and Daylight sensor
- 2: Wireless remoter controller
|
| Applications: |
|---|
- Suspended Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting
- Lighting in Production Area, Warehouse,Coolers, Freezers, Vending Machines
- Retail Store Display Lighting,Transportation, Railroad, Buses
- Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting
|
