Product Packge Inlcude:
1x LED T8 Tube
1x Tri-proof Tube Fixture
Tube Specificaiton
Length--- Wattage--- Lumen Output--- Dimension
2feet----- 10W-------- 800LM-------- A:590mm; B:604mm; C:29mm
4feet----- 18W-------- 1650LM-------- A:1198mm;B:1212mm;C:29mm
5feet----- 25W-------- 2350LM-------- A:1503mm;B:1517mm;C:29mm
Base Type: G13 (Medium Bi-pin)
Beam Angle: 120 degree
Bulb Type: T8 (bi-pin)
IP Rating: Non-Weatherproof
LED Type: 2835 SMD
Diffuser: Milky White
Operating Voltage Range: 110V/220VAC
Dimming: Yes,Available
CCT: 3000-6500K
Available color: Pure White, Warm White, Natural White

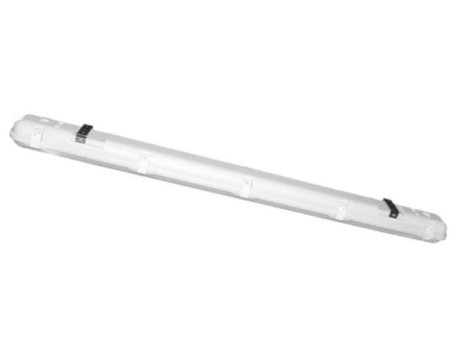

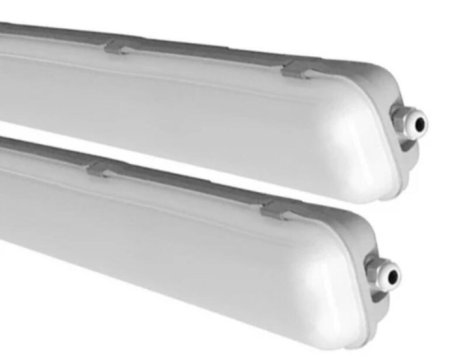

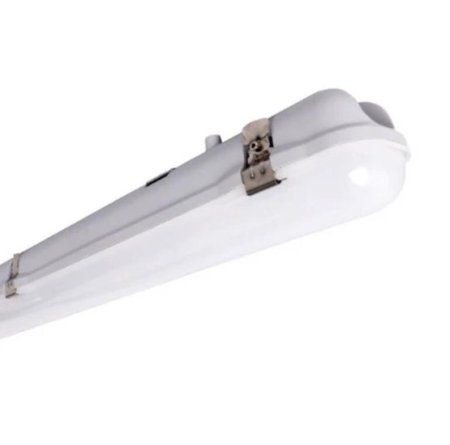

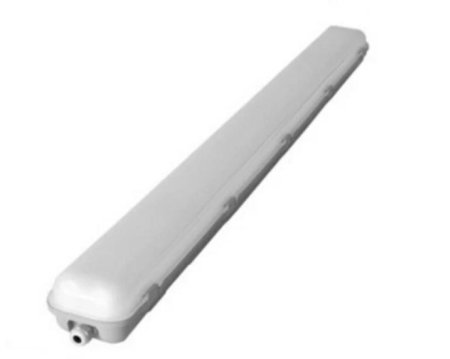

Tube Fixture Specificaiton
Tri-proof (waterproof, dust-proof, corrosion-proof) T8 Tube Fixture
Material: ABS Housing + PC Lens
Used for: 1pcs single tube
Power Type: one-end power in
Waterproof :IP65
Length L(mm) W(mm) H(mm) LF(mm) Clips(pcs) Net Weight(kg)
2feet--- 658---- 88---- 94---- 450---- 4----- 0.8
4feet--- 1266----88----94---- 860---- 8----- 1.5
5feet--- 1526----98----103----910----12-----2.25
Features for Tri-proof Tube Fixtures
Our tri-proof fixture LED light is one kind of professional luminaire made by specialized barriermaterial with 3 characteristics--water-proof, dust-proof & corrosion prevention. To ensure the stableness and durability of the lamp, we used the novel hasp on lamp housing, PC material on the protective box and the Nano coating on the lamp body , which keep it free from the water, dust and corrosion. Meanwhile, the plug and connector are comply with the double insulation requirement, which is safely enough for human using. Furthermore, we use the PMMA material and prism design to get the perfect high transmittance and concentrated light.
