Wavelength : 365nm-370nm
IP Grade avaliable : Non-Waterproof , IP67 Waterproof

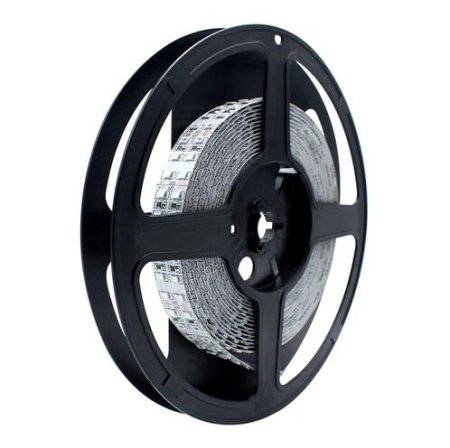

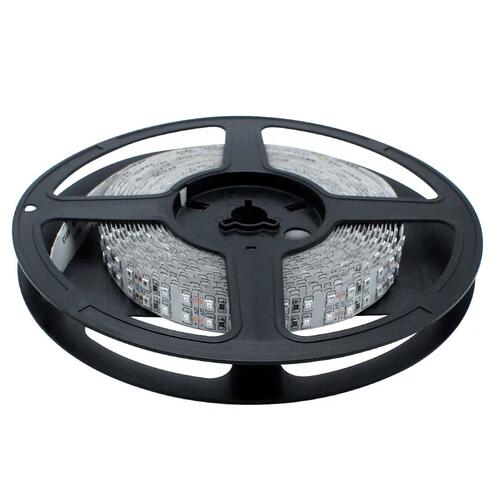

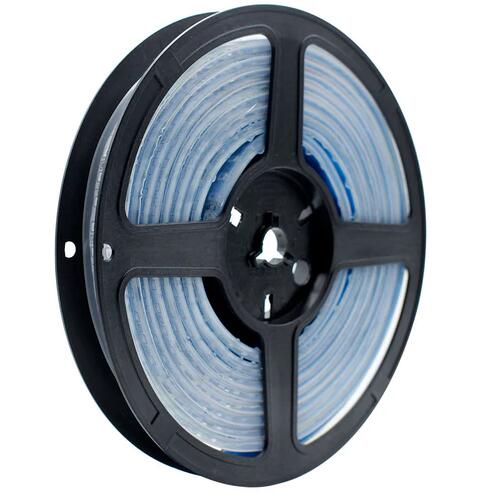

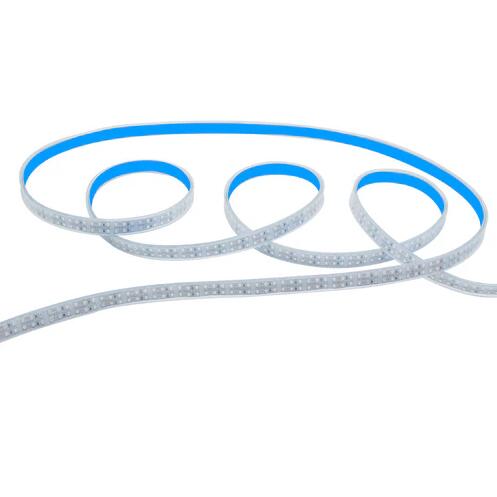

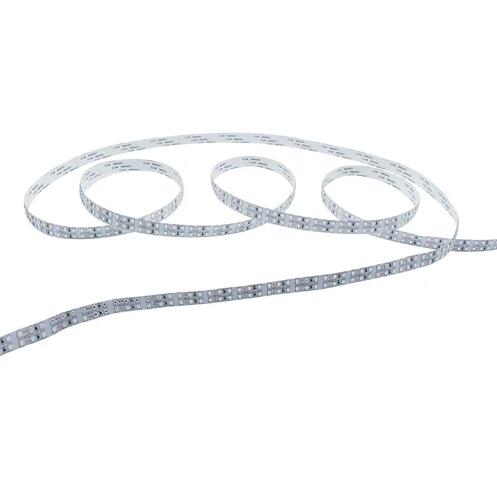

365nm-370nm SMD3528-1200 12V DC <96W, 8Amp UV (Ultraviolet) LED Strip Light Non-Waterproof Flexible White PCB Strip Light Ideal for Curing, Currency Validation, Mosquito killer, Fluorescence disclosing and Medical Field
Note: Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.
Strip Light Specification for 5 Meter Roll
LED Type: UV SMD3528
LED QTY.: 240LED/Meter
Input Voltage: 12V DC
Wattage (max): 19.2Watt/Meter
Cuttable: Every 6LED per 2'' can be cut
Size(W*H/mm): 8*2
Weight: 0.25kgs per 5meter per roll
Wavelength: 365nm-370nm
PCB Background color: White
PCB Backing: Double-sided Adhesive backing
Beam Angle: 120°
Dimming: PWM dimmable(more information please refer to different Dimmer applications)
Pre-wiring: 20cm Red/Black Lead wire at one end of the strip

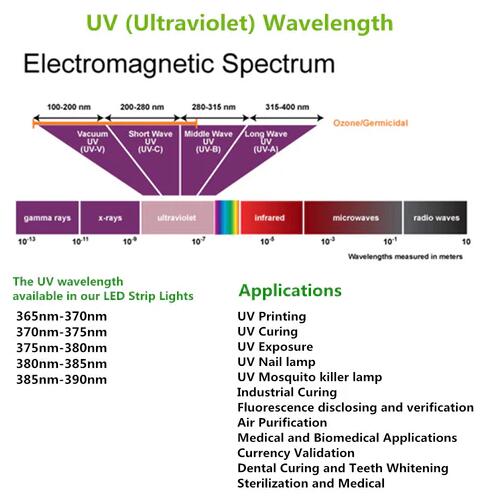

UV LED Lights Application
UV Mosquito killer lamp
Industrial Curing
Fluorescence disclosing and verification
Air Purification
Medical and Biomedical Applications
Currency Validation
Dental Curing and Teeth Whitening
Sterilization and Medical
Warnings and Handling Instructions on UV LED Lights
UV-LEDs emit invisible ultraviolet radiation when in operation, which may be harmful to eyes or skin, even for brief periods. Do NOT look directly into the UV-LED during operation. Be sure that you and all persons in the vicinity wear adequate " UV " Safety protection for eyes and skin. If you incorporate a UV-LED into a product, be sure to provide WARNING labels.
