Input Voltage: DC 12V
LED Type: SMD 5630
LED Density: 60LEDs/Meter
Beam Angle: 120 Degree
Strip Width: 10mm
LEDs Per Segment: 3 LEDs
Lumen Per Foot (White): 366 lm/ft
Power Consumption Per Meter : 15W @ 12V DC

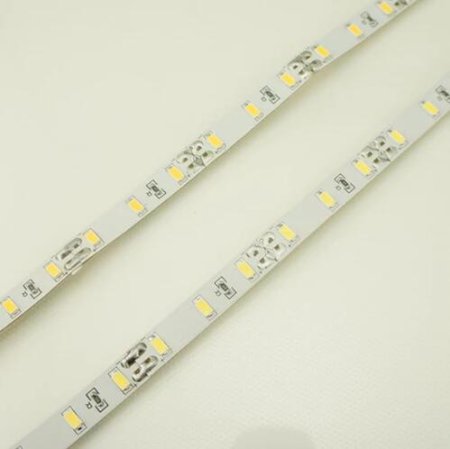

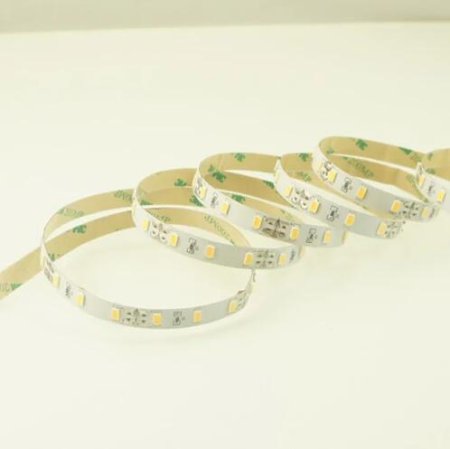

DC 12V Dimmable SMD5630-300 Flexible LED Strips 60 LEDs Per Meter 10mm Width 1200lm Per Meter. Available in lengths of 0.5m(1.64ft), 1m(3.28ft), 2m(6.56ft), 3m(9.84ft), 5m(16.4ft) with Yellow, White or Black finish. Non-waterproof, IP65, IP67 or IP68 strips is available. Can be cut into 3-LED segments for 12V DC operation version.
Item DC12V SAMSUNG SMD5630-300 LED Strips 60LEDs 15W Per Meter
Code HK-F5630X30-X
LED Type SAMSUNG 5630 LED
LED QTY. 60LED/Meter
Wattage (max) 15Watt/Meter
Lumen Output Note1 1500LM/Meter
Cuttable Every 3LED per 2'' (5cm) can be cut
Length available Lengths within 5meters(16.4feet) and multiple of 2''(5cm)
Size(W*H/mm) 10*2 (for non-waterproof)
Weight 0.15kgs/roll for non-waterproof; 0.25kgs/roll for IP65/IP67; 0.5kgs/roll for IP68.
Input Voltage 12V DC

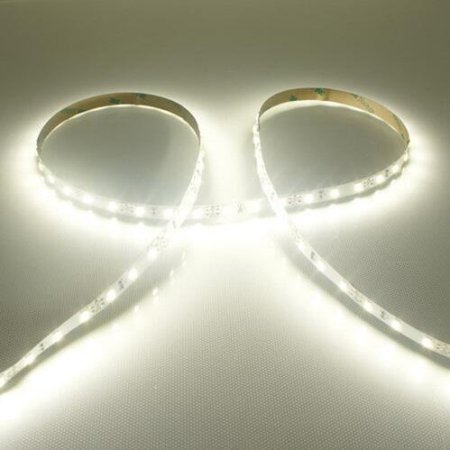

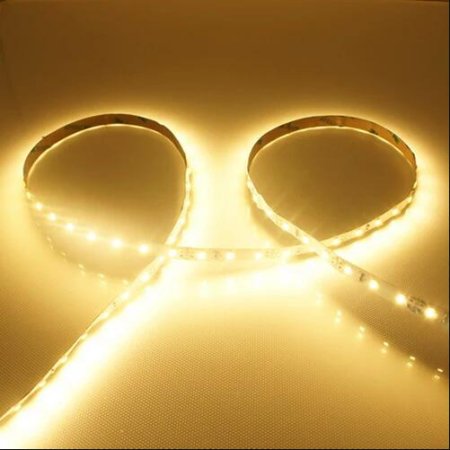

Light Color Pure White(5500-6000K), Natural White(4000-4500K), Warm White(3000-3500K)
PCB color option White, Black
PCB Backing Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68
Beam Angle 120°
Waterproof Type Non-waterproof(indoor use), Waterproof IP65, IP67, IP68
Dimming PWM dimmable (more information please refer to different Dimmer applications)
Lead Single color strip has two contacts(V+,V-) and is Polarity Sensitive.
Pre-wiring 20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip

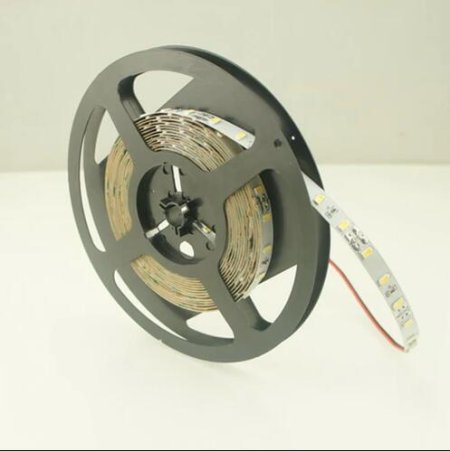

Packing 5meters(16.4feet) per roll packed in a static bag
Note 1: When the strip make into a long string, a full roll we say, for there is voltage drop, so there final power consumption will be lower than the rated max data. Also the lumen output of a long string will be lower than the rated data per meter. There is an around 15-25% derated than the max. The shorter the strip, the output data will be closer to the rated.
