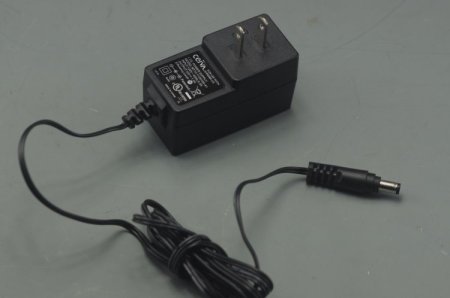

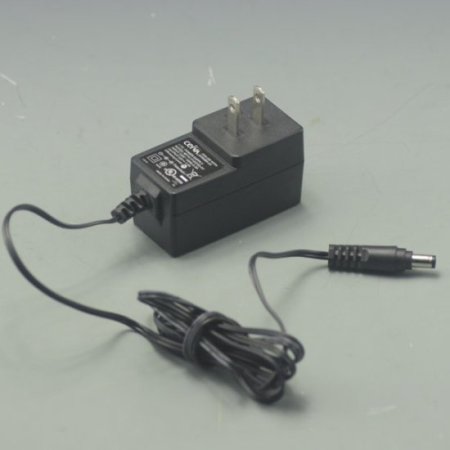

50pcs x 12v 1a power supply

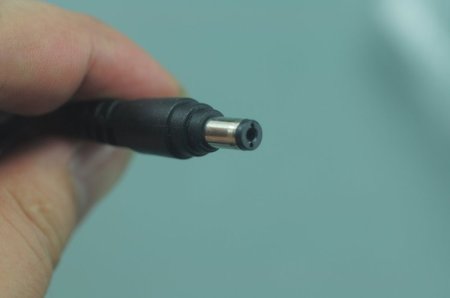

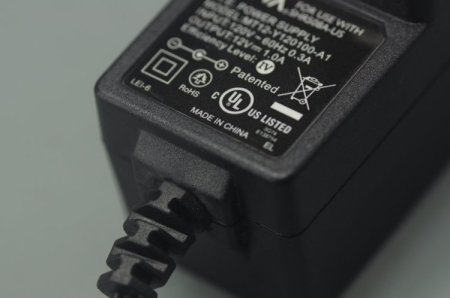

The dc out put is 5.5mm x 2.1mm 1.4meter (55")long . UL Listed power supply . Note :this input is AC120V only for USA and Canada . online UL checkE138754
| Model | PS-UL-AI-P12W12V1A-110 |
| Series | PS-UL-AI-P12W12V1A |
| Output | Dc Voltage | 12V |
| Rated Current |
1A |
| Current Range |
0~1A |
| Rated Power |
12W |
| Ripple&Noise(max) Note.2 | 120mVp-p |
|
| Voltage Tolerance Note.3 | ±5.0% |
| Line Regulation | ±1.0% |
| Load Regulation | ±2.0% |
| Setup,Rise Time | 500ms, 20ms / 230VAC Â Â 5 at full load |
| Hold Up Time(typ.) | 50ms/230VAC Â Â Â Â Â 16ms/115VAC at full load |
| Input | Voltage Range Note.4 | 90 ~ 264VAC 127 ~ 370VDC |
| Frequency Range | 47-63Hz |
| Efficiency(typ.) | 85% |
| Ac Current(typ.) |
0.3A/120VAC |
| Inrush current | COLD START 45A |
| leakage Current |
0.25mA/120VAC |
| Protection | Overload | 110-150% rated output power
 protection type:hiccup mode,recovers automatically after fault condition
 115-135% rated output voltage  |
| Over Voltage | 13.8 ~ 16.2V |
| Protection type : Shut off o/p voltage, clamping by zener diode |
| Environment | Working Temp | -30 ~ +70℃ (Refer to "Derating Curve") |
| Working Humidity | 20-90%rh non-condesing |
| Storage Temp,Humidity | -40~+85 , 10~95% RH |
| Temp.Coefficient | ±0.03%°c(0-50°c) |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Safety&EMC | Safety Standard Note.6 | UL879, UL1310, CSA C22.2 No. 207-M89, CAN/CSA C22.2 No. 223-M91, IP67 approved ; design refer to TUV EN60950-1 |
| Withstand Voltage | I/P-O/P:3KVAC Â Â |
| Isolation Resistance | I/P-O/P:>100M Ohms / 500VDC / 25 / 70% RH |
| EMC Emission | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
| EMI Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A |
| Others | MTBF | 320.7Khrs min. MIL-HDBK-217F (25 ) |
| Dimension |
66*38*32mm (L*W*H) |
| Packing |
0.01Kg |
| Warranty |
3 years warranty |
| Datasheet | |
| Note: |
Â
- 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
- 6.Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7.The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit.
- 8.Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.
 |
