Mini RGB Controller Dimmer 12V 6A 3 Keys for 5050 3528 RGB LED Strip Light

(image for) Mini RGB Controller Dimmer 12V 6A 3 Keys for 5050 3528 RGB LED Strip Light

Mini RGB Controller Dimmer 12V 6A 3 Keys for 5050 3528 RGB LED Strip Light

Model: LD-TCM-050-A
Shipping Weight: 0.005kg
In Stock: 999485

Qty Discounts Off Price

* Discounts may vary based on options above

$2.18

LD-TCM-050-A

(0 Reviews) Add Your Review

Base Type: Mini controller RGB Control Using objectsï¼š3528 5050 RGB Item color: white Work Voltage: 12VDC Dynamic Effects: 19 modes Static Effect: 20 modes Total length: 18CM Lamp with interface: 4 pin Button: 3 key Features: Latest 3 keys manual controller is designed to...

This product was added to our catalog on Wednesday 10 July, 2013.

Description

Base Type: Mini controller RGB Control
Using objectsï¼š3528 5050 RGB
Item color: white
Work Voltage: 12VDC
Dynamic Effects: 19 modes
Static Effect: 20 modes
Total length: 18CM
Lamp with interface: 4 pin
Button: 3 key
Features:
Latest 3 keys manual controller is designed to substitute 24 keys IR remote controller.
Small size, convenient to use, competitive price with reliable quality.

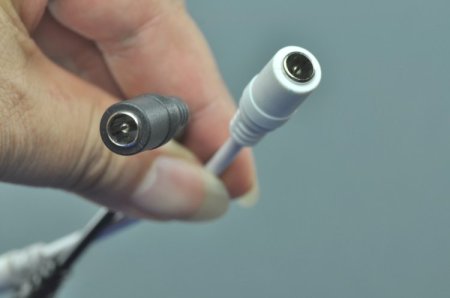

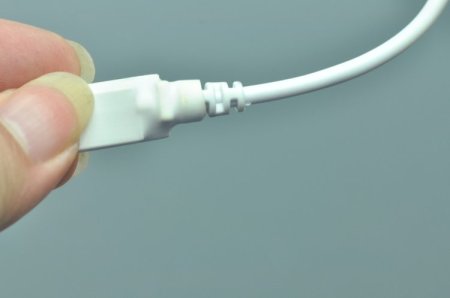

One end is 4pins female connector, the other is DC female adapter.
Package Included:
1PCS mini controller

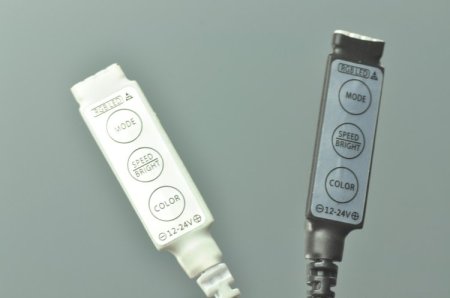

Key functions:

Key	functions
MODE	Dynamic modes switch
SPEED/BRIGHT	To adjust the speed(dynamic modes) or brightness(static modes)
COLOR	Static color replacement

Mode Table

NO.	mode	NO.	mode
1	Full color gradual change	11	Six color jumpy change
2	Three-color fade in then fade out	12	3-color strobe change
3	Seven-color fade in then fade out	13	Red flash explosion
4	Red fade in then fade out	14	Yellow flash explosion
5	Yellow fade in then fade out	15	Green flash explosion
6	Green fade in then fade out	16	Blue flash explosion
7	Cyan fade in then fade out	17	White flash explosion
8	Blue fade in then fade out	18	Six color flash explosion
9	White fade in then fade out	19	AutoPlay
10	Three colors jumpy change	?	?

Color Table

NO.	Color	NO.	Color
1	Static red	11	Static light blue
2	Static green	12	Static cyan
3	Static blue	13	Static light green
4	Static orange	14	Static yellowish green
5	Static deep yellow	15	Static yellow-green
6	Static pink	16	Static white
7	Static purple	17	Static green white
8	Static brown	18	Static ivory
9	Static violet blue	19	Static pink white
10	Static dark blue	20	Static warm white
