Universal single color mini LED dimmer can dim any 12VDC
LED products from 10%-100% using Pulse Width Modulation (PWM)
circuit push button control from stepped intensity adjustment.
5 dynamic flashing modes with adjustable speeds.

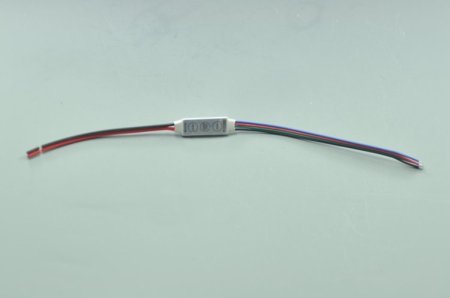

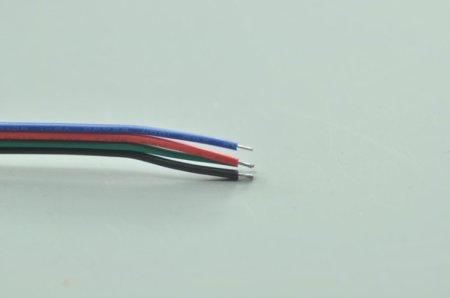

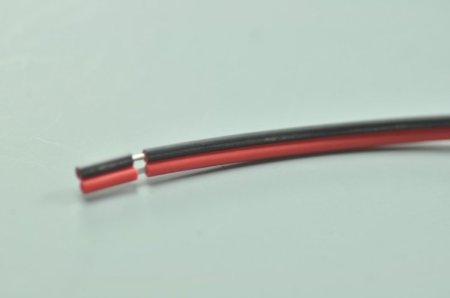

Maximum load is 5 Amps - holding Speed/Bright button turns LEDs ON/OFF. Attached 4" power input and controller output wire leads.
| Specifications: |
| Supply Voltage: DC 12V |
Product size: (L)40 x (W)13 x (H)5 mm |
| Max load current: 5Amps |
Net Weight: 30g |
| Output 1 channel |
Working temperature: -20~60°C |
| Static power consumption: < 1 Watt |
| Output Power: 60 Watts |
| Function: Dim LED product from 10~100% using PWM with CPS series Power Supplies |

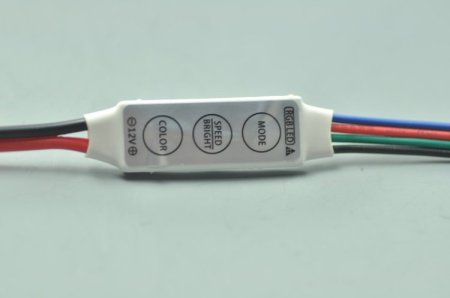

Directions: Press "Color" button to activate static mode. Press "Speed/Bright" button to incrementally dim 8 steps and return to full brightness. "Mode" button enters dynamic flashing patterns. Press "Mode" to cycle through the 5 different patterns. Pressing "Speed/Bright" button will incremently decrease speed 6 steps and return to fastest speed. Hold Speed/Bright button turns LEDs ON/OF
