350 Watt LED Power Supply 12V 29.1A LED Power Supplies Waterproof IP65 For LED Strips LED Lighting

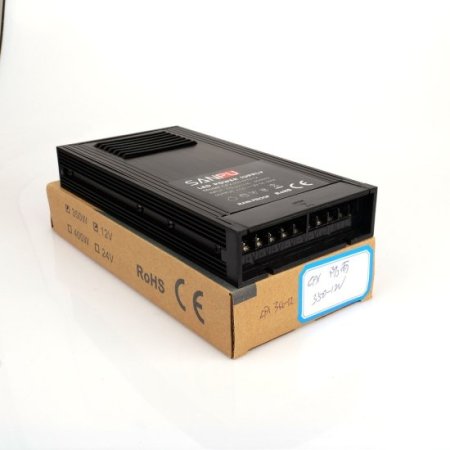

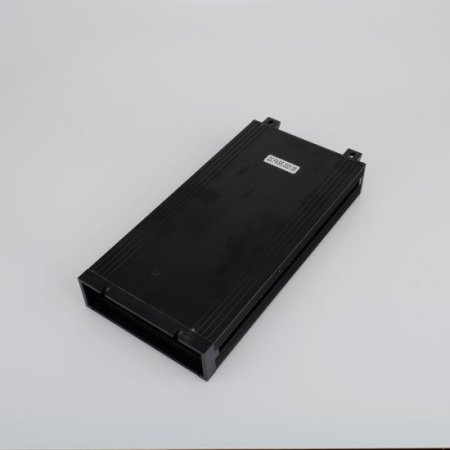

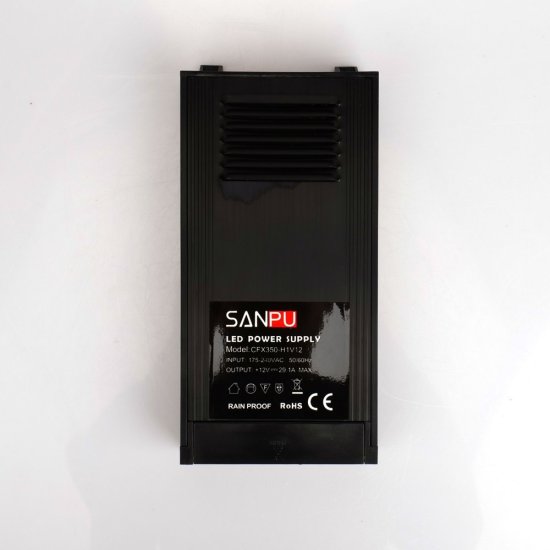

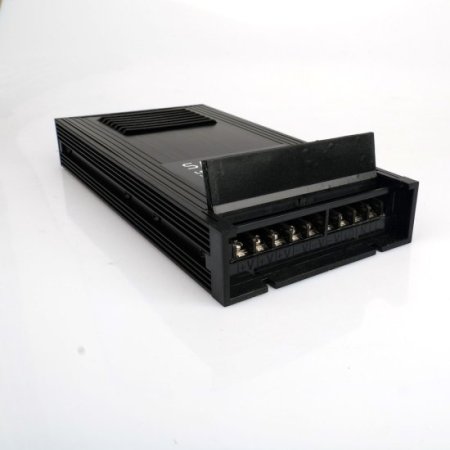

(image for) 350 Watt LED Power Supply 12V 29.1A LED Power Supplies Waterproof IP65 For LED Strips LED Lighting
(image for) 350 Watt LED Power Supply 12V 29.1A LED Power Supplies Waterproof IP65 For LED Strips LED Lighting
(image for) 350 Watt LED Power Supply 12V 29.1A LED Power Supplies Waterproof IP65 For LED Strips LED Lighting
(image for) 350 Watt LED Power Supply 12V 29.1A LED Power Supplies Waterproof IP65 For LED Strips LED Lighting
(image for) 350 Watt LED Power Supply 12V 29.1A LED Power Supplies Waterproof IP65 For LED Strips LED Lighting
(image for) 350 Watt LED Power Supply 12V 29.1A LED Power Supplies Waterproof IP65 For LED Strips LED Lighting
  • Model: SP-CFX-350-12
  • Shipping Weight: 1.01kg
  • In Stock: 1000

350 Watt LED Power Supply 12V 29.1A LED Power Supplies Waterproof IP65 For LED Strips LED Lighting

$66.90
SP-CFX-350-12
Qty Discounts Off Price
1
$66.90		 2-4
$63.56		 5-14
$60.21		 15-19
$56.87		 20-49
$53.52		 50+
$50.18

(0  Reviews) Add Your Review
Model SP-CFX-350-12   Output Dc Voltage 12V Rated Current 29.1A Rated Power 350W Ripple&Noise 180mvp-p Voltage ADJ.Range 10.8-13.2V ...
Add to Cart:
  • This product was added to our catalog on Wednesday 15 November, 2017.
Description
Model SP-CFX-350-12
Output Dc Voltage 12V
Rated Current 29.1A
Rated Power 350W
Ripple&Noise 180mvp-p
Voltage ADJ.Range 10.8-13.2V
Voltage Tolerance ±1.0%
Line Regulation ±0.5%
Load Regulation ±1.0%
Setup,Rise Time 300ms,50ms/230VAC 800ms,50ms/115Vac at full load
Hold Up Time(typ.) 90ms/230vac 12ms/115vac At Full Load
input Voltage Range 85-264VAC 120-370VDC
Frequency Range 47-63Hz
Efficiency(typ.) 74%
Ac Current(typ.) 5.6A/115V  2.8A/230Vac
Inrush current Cold Start  25A/115Vac 50A/230V
leakage Current 3.5mA/240VAC
Protection Overload 105-150% rated output power
protection type:hiccup mode,recovers automatically after fault condition
115-135% rated output voltage
Over Voltage 115-135% rated output voltage
Protection Type:hiccup mode,recovers automatically after fault condition
environment Working Temp  -10~+60°c
Working Humidity 20-90%rh non-condesing
Storage Temp,Humidity  -20~+85°c,10-95%rh
Temp.Coefficient ±0.03%°c(0-50°c)
Vibration 10-500hz
Safety&EMC safety standard CE RoHS
withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
Isolation Resistance I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
EMI Conduction&radiation Design refer to GB4943,UL60950,EN60950
EMC Standard Design refer to GB9254,EN55022 Class A
Dimension L218*W80*H33mm
Packing 0.96kg
