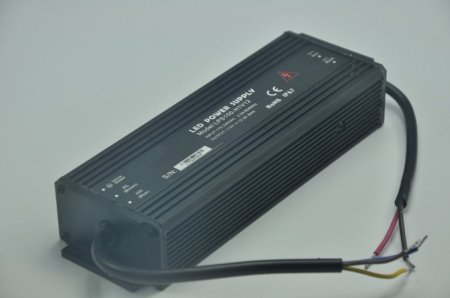

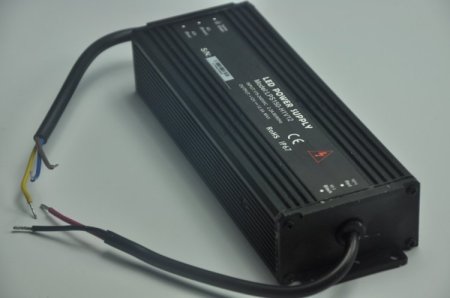

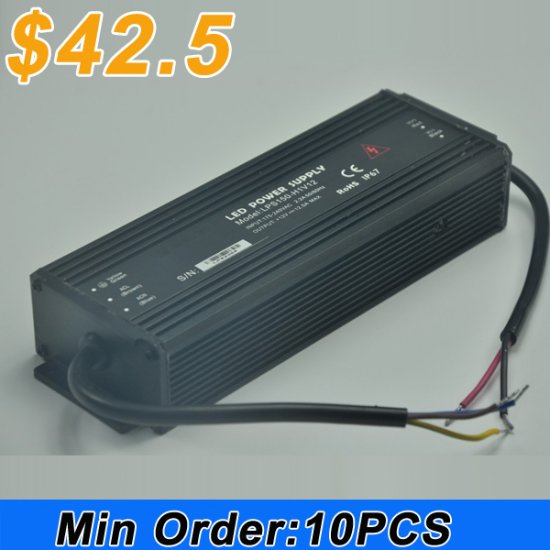

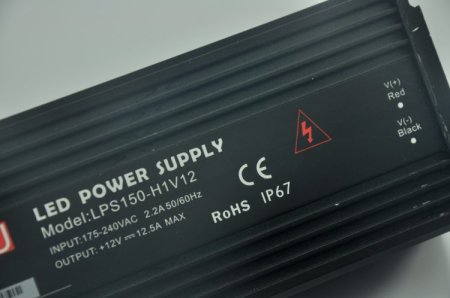

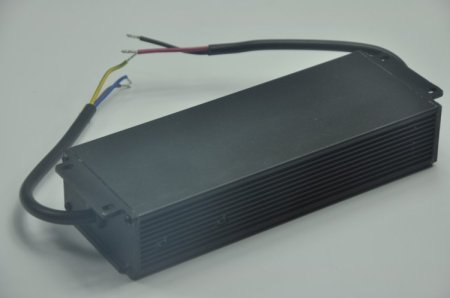

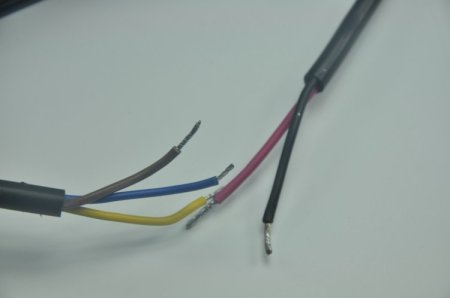

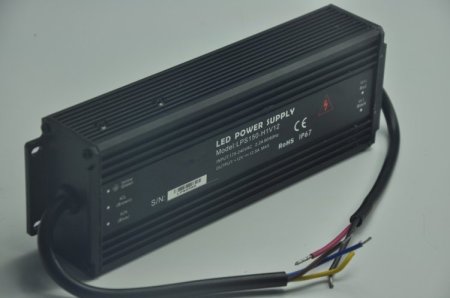

Wholesale 12V 12.5A LED Power Supply 150 Watt LED Power Supplies Rain-proof For LED Strips LED Light
(image for) Wholesale 12V 12.5A LED Power Supply 150 Watt LED Power Supplies Rain-proof For LED Strips LED Light
(image for) Wholesale 12V 12.5A LED Power Supply 150 Watt LED Power Supplies Rain-proof For LED Strips LED Light
(image for) Wholesale 12V 12.5A LED Power Supply 150 Watt LED Power Supplies Rain-proof For LED Strips LED Light
(image for) Wholesale 12V 12.5A LED Power Supply 150 Watt LED Power Supplies Rain-proof For LED Strips LED Light
(image for) Wholesale 12V 12.5A LED Power Supply 150 Watt LED Power Supplies Rain-proof For LED Strips LED Light
(image for) Wholesale 12V 12.5A LED Power Supply 150 Watt LED Power Supplies Rain-proof For LED Strips LED Light
(image for) Wholesale 12V 12.5A LED Power Supply 150 Watt LED Power Supplies Rain-proof For LED Strips LED Light
  • Model: SP-LPS-150-12-BW
  • Shipping Weight: 0.993kg
  • In Stock: 10000000

Wholesale 12V 12.5A LED Power Supply 150 Watt LED Power Supplies Rain-proof For LED Strips LED Light

$42.50
SP-LPS-150-12-BW
Quantity Discount
5 - 9
$40.38		10 - 19
$39.53		20 - 49
$39.10		50 - 99
$38.25		100 +
$36.13
(0  Reviews) Add Your Review
Model SP-LPS-150-12   Output Dc Voltage 12V Rated Current 12.5A Rated Power 150W Ripple&Noise 180mvp-p Voltage ADJ.Range 10.8-13.2V ...
Add to Cart:
Min:  10
  • This product was added to our catalog on Tuesday 04 August, 2015.
Description
Model SP-LPS-150-12
Output Dc Voltage 12V
Rated Current 12.5A
Rated Power 150W
Ripple&Noise 180mvp-p
Voltage ADJ.Range 10.8-13.2V
Voltage Tolerance ±1.0%
Line Regulation ±0.5%
Load Regulation ±1.0%
Setup,Rise Time 300ms,50ms/230VAC 800ms,50ms/115Vac at full load
Hold Up Time(typ.) 90ms/230vac 12ms/115vac At Full Load
input Voltage Range 175-240VAC
Frequency Range 50-60Hz
Efficiency(typ.) 74%
Ac Current(typ.) 5.6A/115V  2.8A/230Vac
Inrush current Cold Start  25A/115Vac 50A/230V
leakage Current 3.5mA/240VAC
Protection Overload 105-150% rated output power
protection type:hiccup mode,recovers automatically after fault condition
115-135% rated output voltage
Over Voltage 115-135% rated output voltage
Protection Type:hiccup mode,recovers automatically after fault condition
environment Working Temp  -10~+60°c
Working Humidity 20-90%rh non-condesing
Storage Temp,Humidity  -20~+85°c,10-95%rh
Temp.Coefficient ±0.03%°c(0-50°c)
Vibration 10-500hz
Safety&EMC safety standard CE RoHS
withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
Isolation Resistance I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
EMI Conduction&radiation Design refer to GB4943,UL60950,EN60950
EMC Standard Design refer to GB9254,EN55022 Class A
Dimension L195*W65*H30mm
Packing 0.993kg
