This LED Aluminium Channel can be used for outside landscape light,led strip light channel,LED flood light,led wall light and other need good heat eliminable led project install. (Big order/need customized aluminium LED Channel, info@724light.com)
- Length:1 meter(39.4 inch)
- Color:Silver
- Base Material:Aluminum
- Body Material:Anodized Aluminum
- Cover : Clear Armoured glass(1000mm*46mm*3mm)
- Waterproof Type: IP65(After install with glue)
- Light Source:High-power lights, or SMD(5050,3528,5630,5730,2835 and so on)
- Length Abailable:1meter(39.4 inch),2meter(78.74inch),0.5meter(19.7inch)
- Inside Dimensions:(HxW)22mm x 30mm

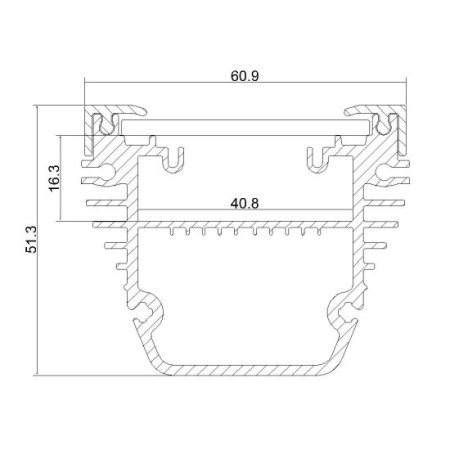

- Outside Dimensions(HxW):62 mm x 50 mm(see follow first picture)
- LED Power Support:18W-24W-36W-48W
- Package Includes:
- 1 x LED Strip Aluminium Profile

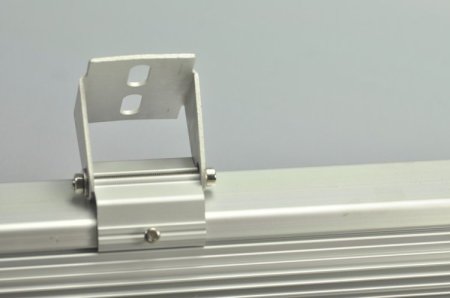

- 2 x Mounting Clip Holders

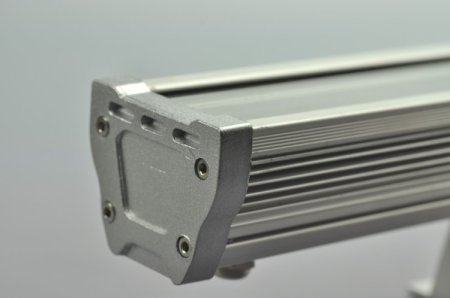

- 2 x End Caps

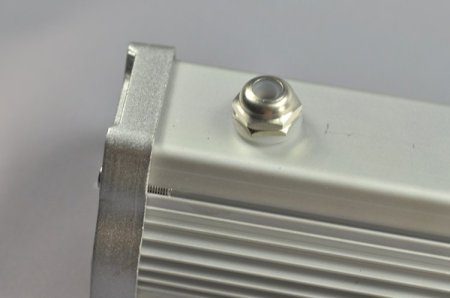

- 1 x Waterproof Screw
- N x Steel Screws
- 1 x Armoured glass
- Application
- - Outdoors:Bridge ,park, Garden,Sculpture, Plaza, Billboard,Stands for fairs
- - Interior:Warehouse,Cabinets,LED Project that need good heat eliminable
- Notice:
- 1. If need 2 meter(200cm) channel , the min order is 5pcs (20meter),please cotact us
- 2. We are Factory and have a lot of profiles, Have stocks and could make shipment very soon.
- 3. We can do install led light and led driver,according your need
