| Model |

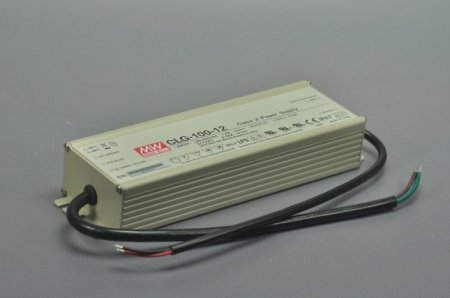

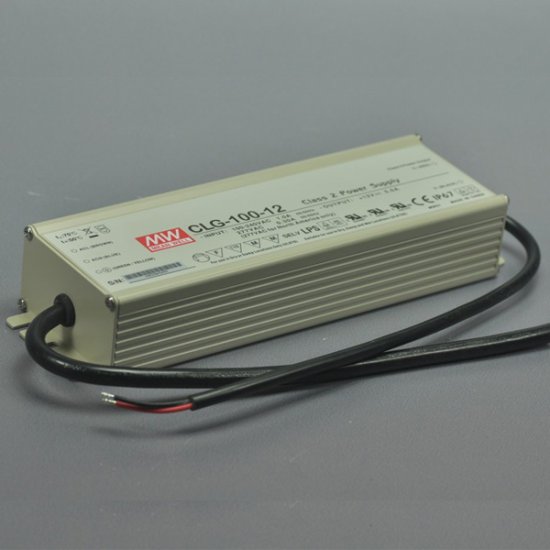

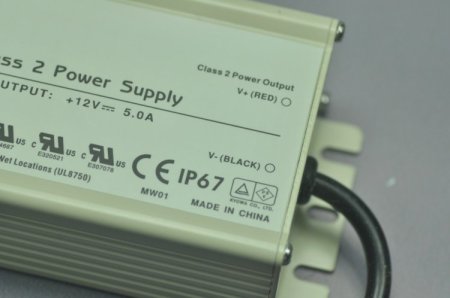

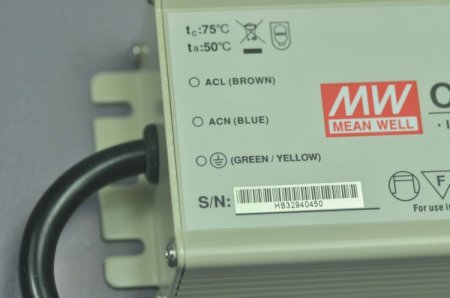

CLG-100 |
| Series |
CLG-100-12 |
| Output |
Dc Voltage |
12V |
| CONSTANT CURRENT REGION Note.7 |
9 ~ 12V |
| Rated Current Note.5 |
5A |
| Rated Power Note.5 |
60W |
| Ripple&Noise(max) Note.2 |
150mVp-p |
| Voltage ADJ.Range |
Fixed. Can be modified between 0% ~ -15% rated output voltage |
| CURRENT ADJ. RANGE |
Fixed. Can be modified between 3% ~ -25% rated output current |
| Voltage Tolerance Note.3 |
±3.0% |
| Line Regulation |
±1.0% |
| Load Regulation |
±2.0% |
| Setup,Rise Time |
500ms, 80ms / 230VAC 1200ms, 80ms / 115VAC at full load |
| HOLD UP TIME (Typ.) |
60ms / 230VAC 30ms / 115VAC at full load |
|
| Input |
Voltage Range Note.4 |
90 ~ 295VAC 127 ~ 417VDC |
| Frequency Range |
47-63Hz |
| Efficiency(typ.) |
83% |
| Ac Current(typ.) |
12V:0.8A/115VAC 0.4A/230VAC 0.3A/277VAC |
| Inrush current(typ.) |
COLD START 40A(twidth=1030μs measured at 50% Ipeak) at 230VAC |
| leakage Current |
<0.75mA / 240VAC |
| Protection |
Over Current(typ.) |
95 ~ 102%
Protection type : Constant current limiting, recovers automatically after fault condition is removed |
| Over Voltage |
13 ~ 16V |
| Protection type : Shut down and latch off o/p voltage, re-power on to recover |
| Environment |
Working Temp |
-30 ~ +70℃ (Refer to "Derating Curve") |
| Working Humidity |
20-95%rh non-condesing |
| Storage Temp,Humidity |
-40~+85 , 10~95% RH |
| Temp.Coefficient |
±0.03%°c(0-50°c) |
| Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Safety&EMC |
Safety Standard |
UL879, UL8750, UL1310, TUV EN61347-1, EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V),
CSA C22.2 No. 250.0-08(except for 48V), CSA C22.2 No. 207-M89(except for 48V), IP67, J61347-1, J61347-2-13 approved |
| Withstand Voltage |
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Isolation Resistance |
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
| EMC Emission |
Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (≧75% load) ; EN61000-3-3 |
| EMI Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547, light industry level (surge 4KV), criteria A |
| Others |
MTBF |
495.7Khrs min. MIL-HDBK-217F (25 ) |
| Dimension |
222.2*68*38.8mm (L*W*H) |
| Packing |
1Kg;12pcs/13Kg/0.58CUFT |
| Warranty |
2 years warranty |
| Datasheet |
|
| Note: |
- 1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4.Derating may be needed under low input voltages. Please check the static characteristics for more details..
- 5. This is the maximum possible output current and power, over load protection may be activated slightly below this level to comply with the requirement of UL1310 class 2.
- 6. 3 years warranty is guaranteed for operating ambient temperature no higher than 68℃.
- 7.Please refer to "DRIVING METHODS OF LED MODULE".
- 8.Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.
- 9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
- 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
|
