18W DL-HQ-202-18W LED Panel light Round Diameter 175mm Height 46mm PVC Acrylic Cover Cabinet LED LED Light

724Light LD-DL-HQ-202 series 18W high lumens of exceptional 75+ CRI light,Lifetime > 50000hr, Pure white and warm white color options,Dimmable/Non-Dimmable options. maximum 85 lumens per watt.50% energy saving, and easy to install, suitable for office, home, indoor, lobby, living room, bedroom, bathroom, kitchen, cabinet, company.(Big order/need customized LED downlight, info@724light.com)

Product Specifications
Part number:	LD-DL-HQ-202-18W
Cut-out:	Φ175mm
Surface Diameter:	6.9"(175mm)
Power Consumption:	18W
Operating Voltage:	100~277VAC
Body Material:	Aluminum
Replacement For:	27W CFL
Body Color:	White
LED Color:	Pure White(6000-6500k),Warm White(2700-3500k)
Lumen:	1530 Lumens
LED Type:	Epistar Chip
LED Quantity:	18*1W/PCS
Beam Angle:	Approx. 360°
CRI:	75 CR
Operating Temperature:	-40~+45 °C
Dimmable:	Dimmable(Default)/Non-Dimmable
Power Factor:	0.90
Connector:	2-Pin 10cm Power Line(4")
Lens:	Clear
Lifetime:	50000 Hours
Standards And Certifications:	CE/FCC/ROHS Compliant
Warranty:	2 Years
Weight :	0.642 kg
Dimensions(D*H):	175mm x 46mm

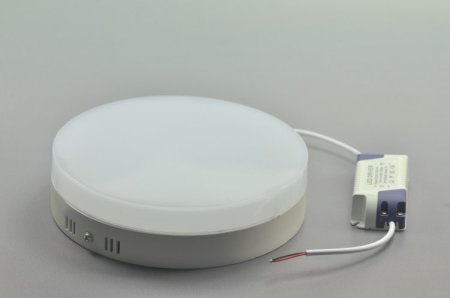

Packaging list :	1* LED Downlight 1* LED Driver
Heat Sink:
The source mounts directly to heat sink extend aluminum heat sink with even distribution hackle cool board.High thermal conductivity, reasonable of radiation coefficient and convection coefficient to solve thermal management system design of the cooling.This enables the LEDs to consistently run cooler, providing significant boosts to lifetime, efficacy, and color consistency
Optical System:
The reflector is made of metal material and with surface oxidized, which effectively enhances the lumen output ratio. Also its fish scale shape design on interior surface prevent lighting glare very well, making the light effect quiteeven and free from layering
Applications:
Ceiling Lights in Office, Schools, Hallways,Parking Garage, Parking Structure Lighting Lighting in education,government, Warehouse,Coolers, Freezers, Vending Machines Retail Store Display Lighting,Transportation, Railroad, Buses Undercabinet or Cabinet Lights,Light Boxes, Signage Backlighting
