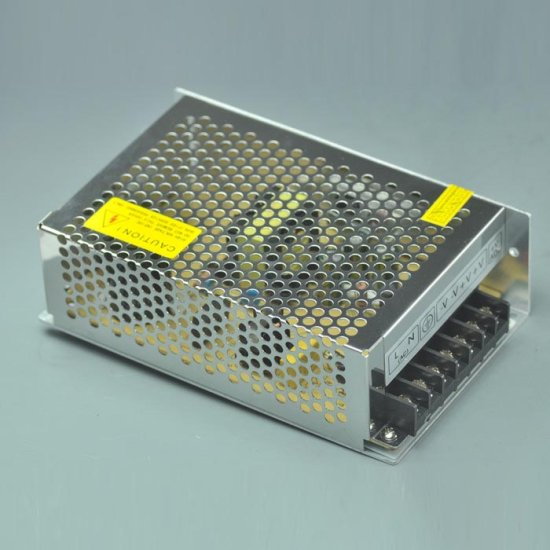

150 Watt LED Power Supply 24V 6.25A LED Power Supplies For LED Strips LED Light

$29.80

SP-PS-150-24

Quantity Discount
5 - 9 $28.31	10 - 19 $27.71	20 - 49 $27.42	50 - 99 $26.82	100 + $25.33

Model GY-P150W24V6.25A-E Output Dc Voltage 24V Rated Current 6.25A Rated Power 150W Ripple&Noise 180mvp-p Voltage ADJ.Range 10.8-13.2V ...

Description

Model		GY-P150W24V6.25A-E
Output	Dc Voltage	24V
	Rated Current	6.25A
	Rated Power	150W
	Ripple&Noise	180mvp-p
	Voltage ADJ.Range	10.8-13.2V
	Voltage Tolerance	Â±1.0%
	Line Regulation	Â±0.5%
	Load Regulation	Â±1.0%
	Setup,Rise Time	300ms,50ms/230VAC 800ms,50ms/115Vac at full load
	Hold Up Time(typ.)	90ms/230vac 12ms/115vac At Full Load
input	Voltage Range	85-264VAC 120-370VDC
	Frequency Range	47-63Hz
	Efficiency(typ.)	74%
	Ac Current(typ.)	5.6A/115V Â 2.8A/230Vac
	Inrush current	Cold StartÂ 25A/115Vac 50A/230V
	leakage Current	3.5mA/240VAC
Protection	Overload	105-150% rated output power protection type:hiccup mode,recovers automatically after fault condition 115-135% rated output voltage
	Over Voltage	115-135% rated output voltage
		Protection Type:hiccup mode,recovers automatically after fault condition
environment	Working Temp	Â -10~+60Â°c
	Working Humidity	20-90%rh non-condesing
	Storage Temp,Humidity	Â -20~+85Â°c,10-95%rh
	Temp.Coefficient	Â±0.03%Â°c(0-50Â°c)
	Vibration	10-500hz
Safety&EMC	safety standard	CE RoHS
	withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
	Isolation Resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25Â°C/70%RH
	EMI Conduction&radiation	Design refer to GB4943,UL60950,EN60950
	EMC Standard	Design refer to GB9254,EN55022 Class A
	Dimension	*L167W105H56mm*
	Packing	0.48kg,48pcs/23.1kg
