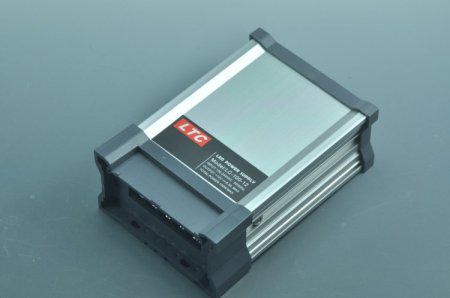

(image for) 60 Watt LED Power Supply 12V 5A LED Power Supplies Rain-proof AC 100 - 240V For LED Strips LED Light

60 Watt LED Power Supply 12V 5A LED Power Supplies Rain-proof AC 100 - 240V For LED Strips LED Light

Model: GY-PS-LTC-60-12
Shipping Weight: 0.27kg
In Stock: 989

60 Watt LED Power Supply 12V 5A LED Power Supplies Rain-proof AC 100 - 240V For LED Strips LED Light

$13.19

GY-PS-LTC-60-12

Qty Discounts Off Price
1 $13.19	2-4 $12.53	5-14 $11.87	15-19 $11.21	20-49 $10.55	50+ $9.89

(0 Reviews) Add Your Review

ModelGY-PS-LTC-60-12Â OutputDc Voltage12VRated Current5ARated Power60WRipple&Noise180mvp-pVoltage ADJ.Range10.8-13.2VVoltage ToleranceÂ±1.0%Line RegulationÂ±0.5%Load RegulationÂ±1.0%Setup,Rise Time300ms,50ms/230VAC 800ms,50ms/115Vac at full loadHold Up Time(typ.)90ms/230vac 12ms/115vac At...

This product was added to our catalog on Monday 02 December, 2013.

Description

Model		GY-PS-LTC-60-12	Â
Output	Dc Voltage	12V
	Rated Current	5A
	Rated Power	60W
	Ripple&Noise	180mvp-p
	Voltage ADJ.Range	10.8-13.2V
	Voltage Tolerance	Â±1.0%
	Line Regulation	Â±0.5%
	Load Regulation	Â±1.0%
	Setup,Rise Time	300ms,50ms/230VAC 800ms,50ms/115Vac at full load
	Hold Up Time(typ.)	90ms/230vac 12ms/115vac At Full Load
input	Voltage Range	AC 100 - 240V
	Frequency Range	47-63Hz
	Efficiency(typ.)	74%
	Ac Current(typ.)	5.6A/115V Â 2.8A/230Vac
	Inrush current	Cold StartÂ 25A/115Vac 50A/230V
	leakage Current	3.5mA/240VAC
Protection	Overload	105-150% rated output power protection type:hiccup mode,recovers automatically after fault condition 115-135% rated output voltage
	Over Voltage	115-135% rated output voltage
		Protection Type:hiccup mode,recovers automatically after fault condition
environment	Working Temp	Â -10~+60Â°c
	Working Humidity	20-90%rh non-condesing
	Storage Temp,Humidity	Â -20~+85Â°c,10-95%rh
	Temp.Coefficient	Â±0.03%Â°c(0-50Â°c)
	Vibration	10-500hz
Safety&EMC	safety standard	CE RoHS
	withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
	Isolation Resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25Â°C/70%RH
	EMI Conduction&radiation	Design refer to GB4943,UL60950,EN60950
	EMC Standard	Design refer to GB9254,EN55022 Class A
	Dimension	*L120W90H50mm*
	Packing	0.27kg,105pcs/28.35kg
