Applications:
For the Led Strip/Wireless Router, ADSL Cats, HUB, Switches, Security Cameras.Audio/Video Power Supply.
Input Voltage: 100~240V AC 50/60Hz
Output Voltage: 12V DC
Output Current: 1AÂ 2A 3A 4A 5A 6A 8A 10A 12.5A
Output Plug diameter: Inside diameter 2.1 Â Â Â Â
Outside diameter 5.5mm x 2.5mm （2.1mm）
Widely used in Industrial automation, LED display, communications, etc.
Working Temperature: 0~40℃
Storage Temperature: -20~60℃
Ambient Humidity: 0~95% Non-Condensation
Package Included:

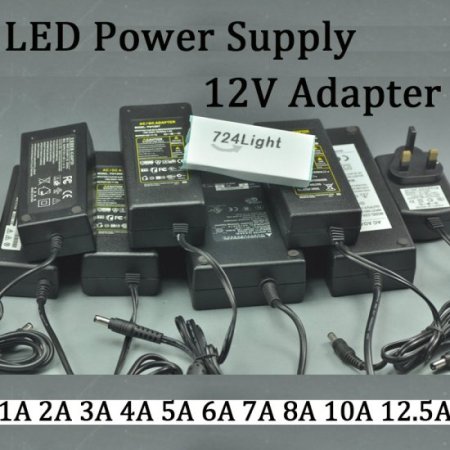

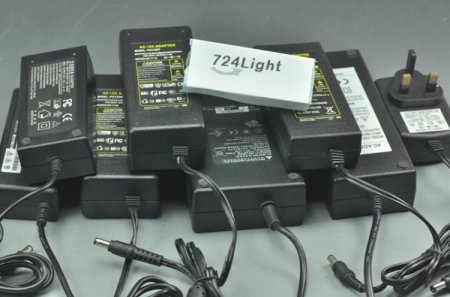

1 X 12V Power Supply
Model |
Power |
Output Voltage |
Output Current |
Output Adaptor |
Weight |
|

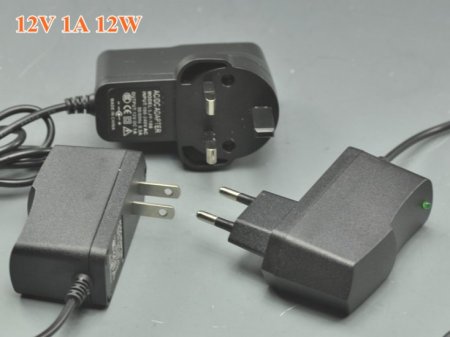

12W |
12V |
1A
|
5.5mm x 2.1mm |
77g |
|

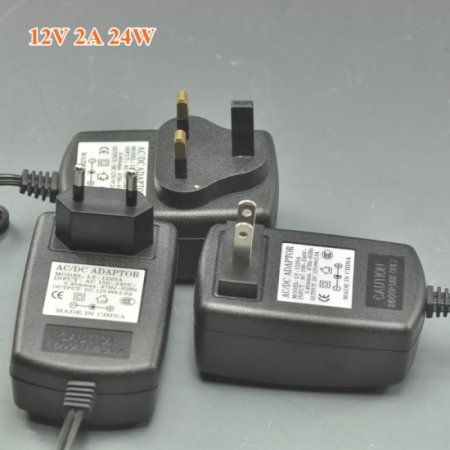

24W |
12V |
2A |
5.5mm x 2.1mm |
107g |
|
36W |
12V |
3A |
5.5mm x 2.1mm |
175g |
|
48W |
12V |
4A |
5.5mm x 2.1mm |
179g |
|
60W |
12V |
5A |
5.5mm x 2.1mm |
290g |
|
72W |
12V |
6A
|
5.5mm x 2.1mm |
133g |
|
84W |
12V |
7A |
5.5mm x 2.1mm |
407g |
|

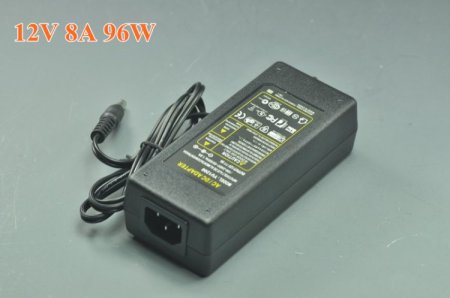

96W |
12V |
8A |
5.5mm x 2.1mm |
407g |
|

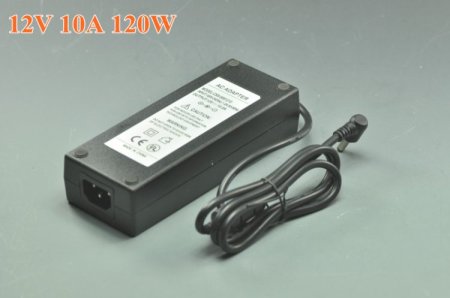

120W |
12V |
10A |
5.5mm x 2.1mm |
454g |
|

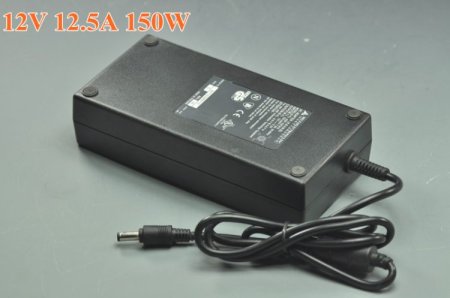

150W |
12V |
12.5A |
5.5mm x 2.1mm |
707g |
