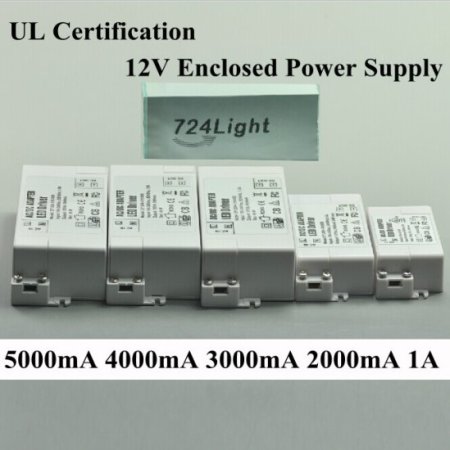

12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light
(image for) 12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light
(image for) 12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light
(image for) 12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light
(image for) 12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light
(image for) 12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light
(image for) 12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light
  • Model: LED-PS-40521-001
  • Shipping Weight: 0.047kg
  • In Stock: 9952

12W 24W 36W 48W 60W LED Power Supply 12V 1A 2A 3A 4A 5A LED Power Supplies UL Certification For LED Strips LED Light

$8.51
LED-PS-40521-001
Qty Discounts Off Price
1
$8.51		 2-4
$8.08		 5-14
$7.66		 15-19
$7.23		 20-49
$6.81		 50+
$6.38

* Discounts may vary based on options above
(0  Reviews) Add Your Review
Model LED-PS-40521-001   Output Dc Voltage 12V Rated Current 1A  2A  3A  4A  5A Rated Power 12W 24W 36W 48W 60W Ripple&Noise 180mvp-p Voltage...

Please Choose:

Type








Add to Cart:
  • This product was added to our catalog on Wednesday 21 May, 2014.
Description
Model LED-PS-40521-001
Output Dc Voltage 12V
Rated Current 1A  2A  3A  4A  5A
Rated Power 12W 24W 36W 48W 60W
Ripple&Noise 180mvp-p
Voltage ADJ.Range 10.8-13.2V
Voltage Tolerance ±1.0%
Line Regulation ±0.5%
Load Regulation ±1.0%
Setup,Rise Time 300ms,50ms/230VAC 800ms,50ms/115Vac at full load
Hold Up Time(typ.) 90ms/230vac 12ms/115vac At Full Load
input Voltage Range 85-264VAC 120-370VDC
Frequency Range 47-63Hz
Efficiency(typ.) 74%
Ac Current(typ.) 5.6A/115V  2.8A/230Vac
Inrush current Cold Start  25A/115Vac 50A/230V
leakage Current 3.5mA/240VAC
Protection Overload 105-150% rated output power
protection type:hiccup mode,recovers automatically after fault condition
115-135% rated output voltage
Over Voltage 115-135% rated output voltage
Protection Type:hiccup mode,recovers automatically after fault condition
environment Working Temp  -10~+60°c
Working Humidity 20-90%rh non-condesing
Storage Temp,Humidity  -20~+85°c,10-95%rh
Temp.Coefficient ±0.03%°c(0-50°c)
Vibration 10-500hz
Safety&EMC safety standard CE RoHS
withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
Isolation Resistance I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
EMI Conduction&radiation Design refer to GB4943,UL60950,EN60950
EMC Standard Design refer to GB9254,EN55022 Class A




Model
 Power Size(L*W*H mm) Voltage -Max Current Weight(kg) Support Strip Light

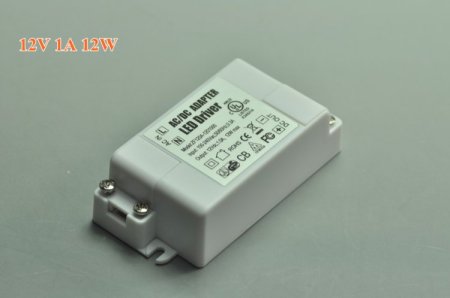

12W 76*36*23 12V-1A
 0.047 <= 1 M(3.28Ft)

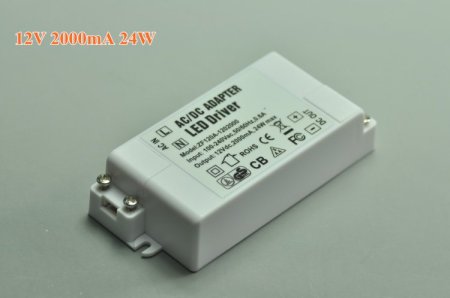

24W 95*44*23 12V-2000mA 0.072 <= 2M(6.56Ft)

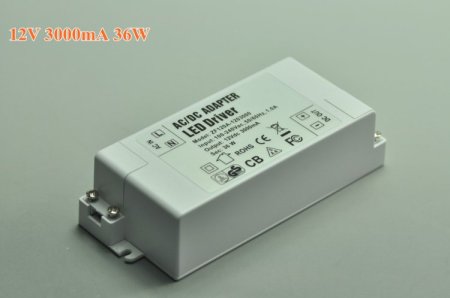

36W 117*48*30 12V-3000mA 0.155 <= 3M(9.84Ft)
48W 117*47*30 12V-4000mA 0.142 <= 4M(13.12Ft)

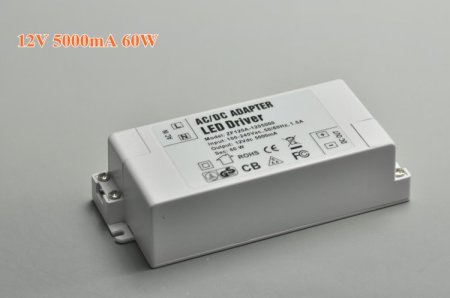

50W 117*48*30 12V-5000mA 0.155 <= 5M(16.4Ft)
