This LED Aluminium Channel with waterproof led driver box can be used for outside landscape light,led strip light channel,LED flood light,led wall light and other need good heat eliminable led project install. (Big order/need customized aluminium LED Channel, info@724light.com)

• Length:1 meter(39.4 inch)
• Color:Silver
• Base Material:Aluminum
• Body Material:Anodized Aluminum
• Cover : Clear Armoured glass(1000mm*34mm*3mm)
• Waterproof Type: IP65(After install with glue)
• Light Source:High-power lights, or SMD(5050,3528,5630,5730,2835 and so on)
• Length Abailable:1meter(39.4 inch),2meter(78.74inch),0.5meter(19.7inch)
• Inside Dimensions:(HxW)17.6mm x 34.7mm

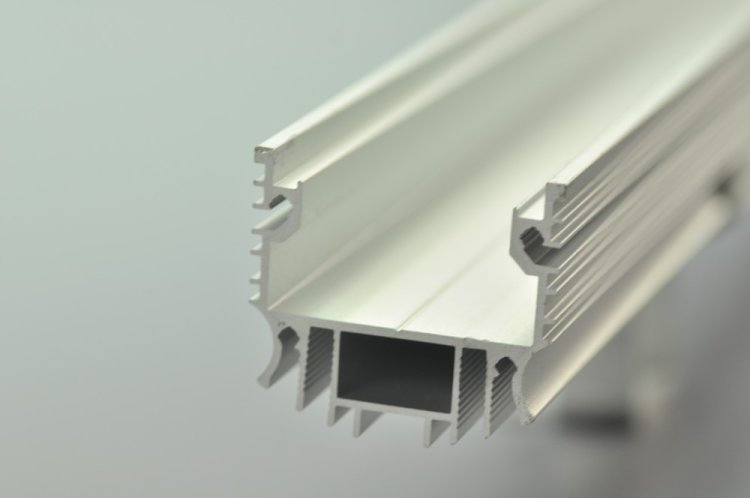

• Outside Dimensions(HxW):36 mm x 40 mm(see follow first picture)
• LED Power Support:18w-24w


• Package Includes:
• 1 x LED Strip Aluminium Profile
• 2 x Mounting Clip Holders

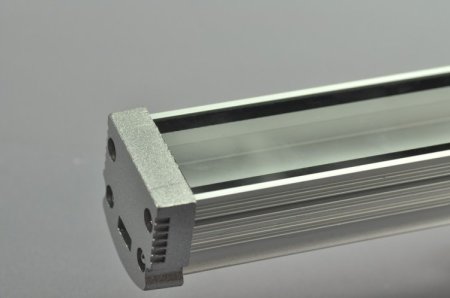

• 2 x End Caps
• 1 x Waterproof Screw
• N x Steel Screws

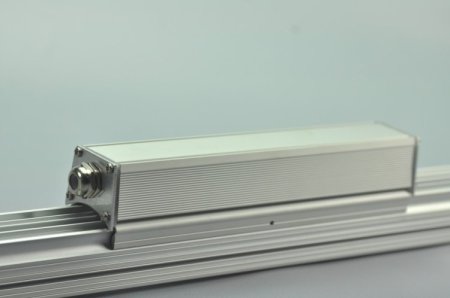

• 1 x Drive Box
• 1 x Armoured glass


• Application
• - Outdoors:Bridge ,park, Garden,Sculpture, Plaza, Billboard,Stands for fairs
• - Interior:Warehouse,Cabinets,LED Project that need good heat eliminable


• Notice:
• 1. If need 2 meter(200cm) channel , the min order is 5pcs (20meter),please cotact us
• 2. We are Factory and have a lot of profiles, Have stocks and could make shipment very soon.
• 3. We can do install led light and led driver,according your need
