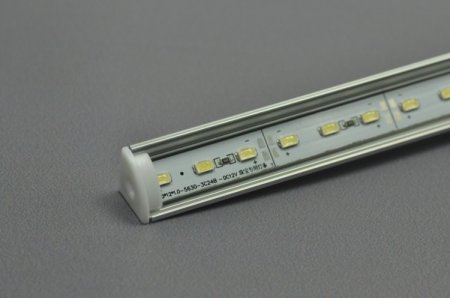

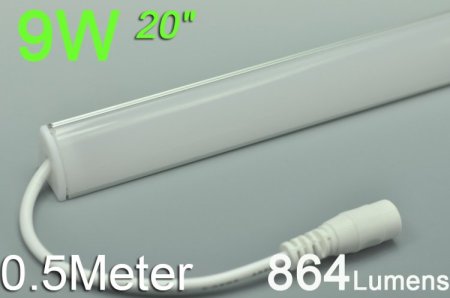

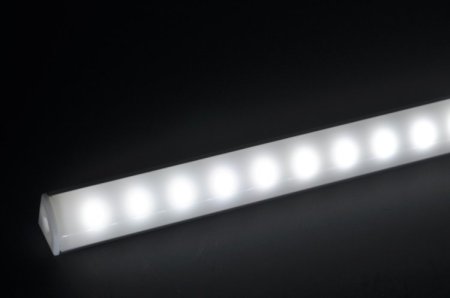

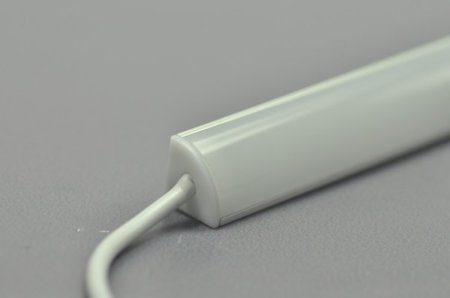

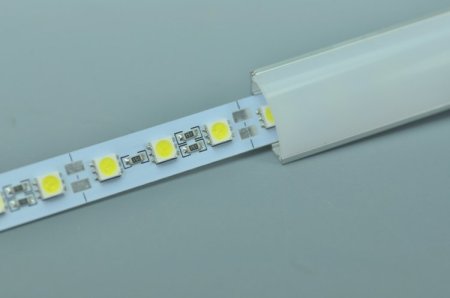

This 0.5meter(19.7 inch) LED No-Waterproof Rigid Strips with Aluminium case can be used for under cabinet lighting, furniture lighting, night lights, retail display lights, window lights, exhibitions, pictures, and many other purposes. (Big order, other color ,or need customized Rigid Strips bar contact Brandon, info@724light.com)

• Length:0.5meter(19.7 inch)
• Working Voltage: 12 VDC
• Light Source:SMD 5050 or 5630
• LED Quantity:36 leds/ Meter
• Protection Rate: Waterproof IP20
• Power Consumption:SMD 5050 12V 0.68A 8.16W---SMD 5630 12V 0.74A 8.88W(Suggest 16w or 24w power supply)
• Lumens:SMD 5050 864LM--- SMD 5630 1080LM
• Body Color:Silver
• For Strip Width:For Strip PCB 10 mm
• Base Material:Aluminum
• Body Material:Anodized Aluminum
• Cover material:PC Light Clear Diffusion
• Working Tempreture:-20 to 50°
• Length Abailable:0.2m-2.4m(customize)

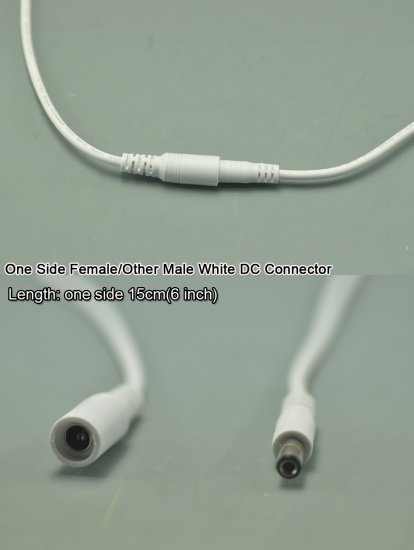

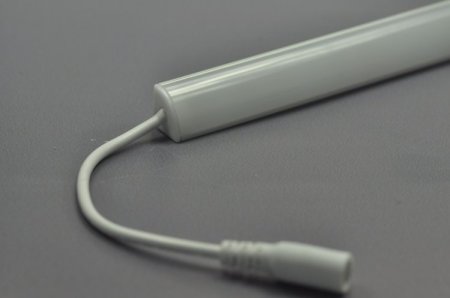

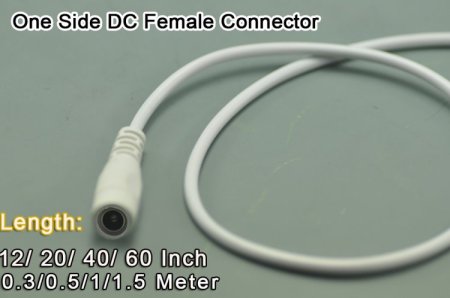

• End DC Connect:one side is 12cm Length(0-100cm can customize)
• Aluminium Dimensions(HxW):16 mm x 16 mm


• Application
• - Shelves
• - Stands for fairs
• - Furniture Construction
• - Kitchens
• - Cabinets
• - Interior


• Package Includes:
• 1 x LED Rigid Strip Light Bar
• 2 x Mounting Clips


• Notice:
• 1. You can customize the led channel from 0.2m to 2.4m, but the min order of more than 1m led channel is 20pcs;
• 2. You can customize 0-100cm End DC Connector, the min order is 50pcs;
• 3 You can customize 24V LED Strip Bar, the min order is 20pcs.
• 4. We are Factory and have a lot of profiles, Have stocks and could make shipment very soon.

ALL LD-RG-SH009 Series LED Strip Bar
