724Light
LD-RG-SH002-kit033 series
13inch(330mm) 6W LED Bar Fixture uses high power SMD 5630 LEDs to produce up to
840lumens/bar. The LD-RG-SH002-Kit series is ideal for cabinet , stairs, parking lots, garages, tunnels, or any other house Interior . Safe 12V DC operation , 100% 6030 aluminium channel .
Available in Pure White and Warm white with wide flood 120 degree beam patterns.
support custom desgin(info@724light.com)
Product Specifications |
Part number: |
LD-RG-SH002-Kit033 |
Wattage: |
6W/pcs |
Compares to: |
10W Fluorescent |
Kits include Bar: |
2/4/6/8/10 pcs optional |
Color Temperature: | Pure White(6000-6500k),Warm White(2700-3500k) |
Lumen: |
840 Lumens/bar(35Lumens/leds) |
LED Type: |
SMD 5630 |
LED Quantity: |
1*24PCS |
Beam Angle: | Approx. 120° |
CRI: | 75 CR |
Operating Temperature: | -40~+50 °C |
Materials: | Aluminum/Stainless Steel |
Operating Voltage: |
12 DC |
Length: |
13inch(330mm) |
Wire Connector: |
2000mm OneSide 2Pin Power Cord with connector |
Lifetime: | 40000 Hours |
Standards And Certifications: | CE/FCC/ROHS Compliant |
Warranty: | 2 Years |
Weight(Net): |
0.067 kg/bar |
Dimensions(LxWxH): |
13inch(330mm) x 18mm x 8.21mm |
Package Weight: |
|
Install : |
direct install with power supply , clip and screw |
Packaging list: |
1)LED Bar (according your choose pcs)
2)LED Power Supply (according your choose pcs )
- 2PCS--12V 1A
- 4PCS--12V 2A
- 6PCS--12V 3A
- 8PCS--12V 5A
- 10PCS--12V 6A

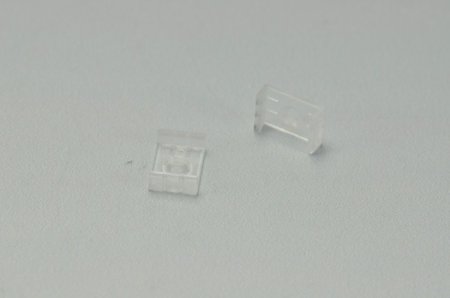

3)Install Clip and screw |
ALL LD-RG-SH002 Series (One pcs Bar)
Part Number |
Length |
Lumens |
Watts |
Compares to |
LEDS |
Weight |
LD-RG-SH002-Kit033 |
13inch(330mm) |
840 Lumens |
6W |
10W Fluorescent |
24 Pcs 5360LEDs |
0.067Kg |
LD-RG-SH002-Kit050 |
19.7 inch(500mm) |
1260 Lumens |
9W |
15W Fluorescent |
36 Pcs 5360LEDs |
0.1Kg |
LD-RG-SH002-Kit100 |
39.3inch(1000mm) |
2520 Lumens |
18W |
30W Fluorescent |
72 Pcs 5360LEDs |
0.2Kg |
