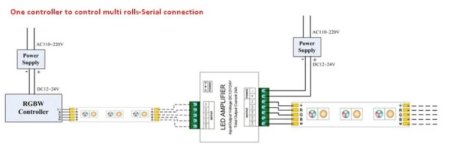

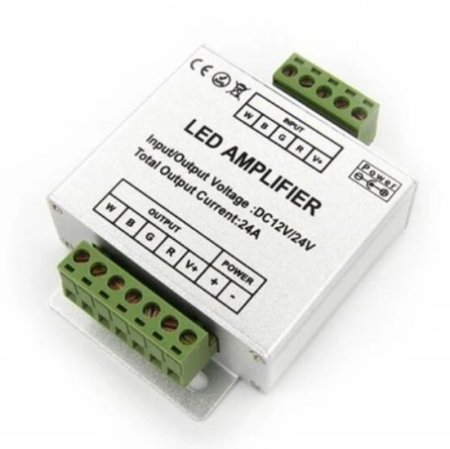

This 4channel Amplifier is able to use for RGBW, RGB, Dual White and single color 12V/24VDC LED lights. With 6Amp/Channel, its max load is 24Amp. It's usually used with controller together, to enlarge the signal, to make one controller can control more LED Lights that over its rated load.
Specification
Operating Voltage:DC12V, 24V
Product Size:L81*W64*H24 (mm)
Net Weight :90g
Output Channel :4 channel (R,G,B,W)
Connection Way :Common Anode
Output Current: 6Amp/Cannel
Output Wattage 12V:<288W, 24V:<576W
Packing: 100pcs per carton
Carton Size: L385*W375*H250 (mm)
Application :Enlarge signal, work for RGBW, RGB, Dual White and Single Color LED strips or bars
