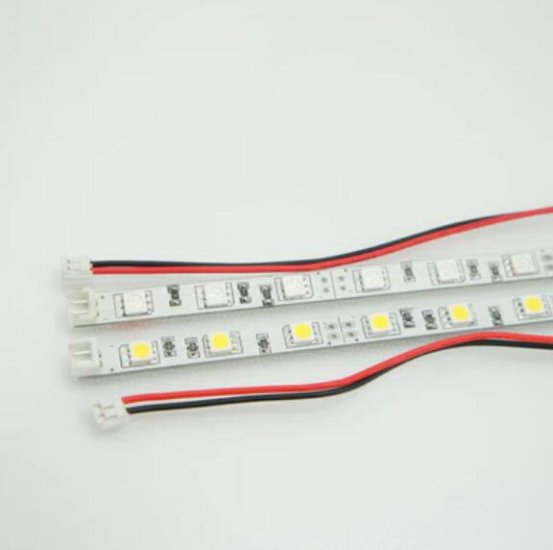

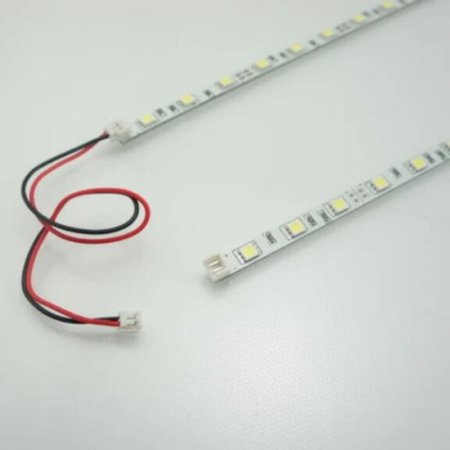

LEDLIGHTSWORLD infrared 850nm/940nm LED Linear Rigid Light Strip.This popular LED light strip in 570mm with 30LED 5050 per peice. It's Non-weatherproof with adhesive backing, can be cut into 3-LED segments(2.22inch long). 12VDC operation. Dimmable with compatible LED dimmers
Technical Specification
Wattage 7.2W/pc
Voltage 12V DC
Beam Angle 120°
Dimming Yes
LED Type SMD5050
Strip Section 3LED per 2.2inch
WxH 8x4(mm)
LED QTY.: 30LED/pc
Length Available 570mm (customized length available)
Available Color 850nm and940nm
Protection Grade Non-waterproof
PCB Background White
Other Features
Item 12VDC Non-waterproof SMD5050-30-IR Infrared (850nm/940nm) LED Linear Rigid Strip, 30LEDs 7.2W per piece
Weight 50g/pc
PCB Backing Double-sided tape is attached at the backing of the light bar
Accesssories 1pc 2pin prong connector, end to end connection jumper
Lead V+ and V-, polarities sensetive
Applications
*For surveillance or security
*For the multitouch display
*For Night Version Light
Features
*Can be cut into 3-LED segments
*Adhesive backing
*12VDC Operation
*Dimmable - See our Dimmer Selection
Safty Tips
*Always disconnect power supply before cutting/connecting LED Light Rigid Strips.
*Do not crimp or bend the Rigid Strips.
*Do not connect LED Rigid Strips. directly to 120V AC power.
*Apply power to test LED Rigid Strips before mounting.
Installation Planning
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
