High-End Product CRI90 Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Medium Product CRI80 Double-Sided PCB, gold wire copper support LED component, more reliable and less brightness depreciation.
Low-End Product CRI60 Single-Sided PCB, copper wire iron support LED component, less brightness, economical for temperary project.
Technical Specification
Wattage 28.8W/Meter
Voltage 12V DC
Beam Angle 120°
Dimming Yes
LED Type SMD5050

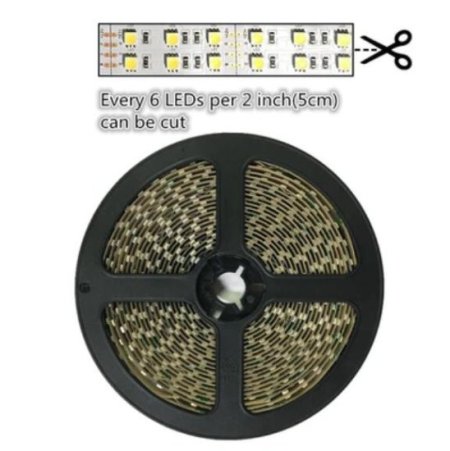

Strip Section 6LED per 2inch
WxH 15x2(mm)
LED QTY.: 120LED/Meter
Length Available 0.5 to 5 Meter
Available Color
Pure White(5500-6500K),
Warm White(3000-3500K),
Warm White(2700K),
Natural White(4000-4500K)
Protection Grade Non-waterproof, IP65, IP67
PCB Background White
Other Features

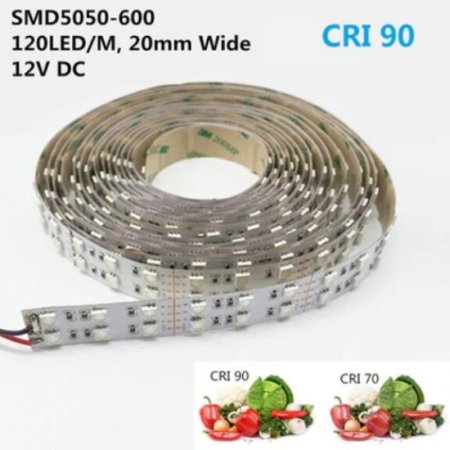

Item CRI90 DC12V SMD5050-600 Tri-Chip Double Row Flexible LED Strips 120LEDs 28.8W Per Meter
Weight 0.35kgs/roll for non-waterproof; 0.5kgs/roll for IP65/IP67
PCB Backing Adhesive backing for Non-waterproof and waterproof IP65/IP67
Lead Single color strip has two contacts(V+,V-) and is Polarity Sensitive.
Pre-wiring 20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip
