Features:

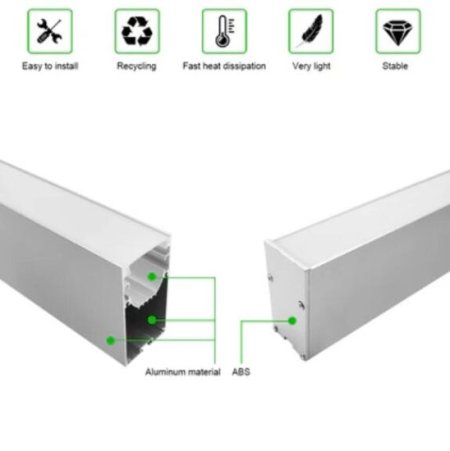

【Heat Dissipation Aluminum Profile】 The aluminum profile is made of high-precision, high-strength aluminum, with fast heat dissipation, durable corrosion resistance, and wear-resistant.
【Protective Cover】 The milky white cover having an 85% transmittance producing homogenous & soft lighting works well to help spread the light and makes the LED light diffuse, gives a soft and uniform light.
【Aluminum Profile Inner Width】15mm (0.59inch) inner width, this aluminum channel works with LED strip lights and waterproof strip lights less than 53mm (2.08inch) wide. You can put several narrow LED strips in it to make the lighting

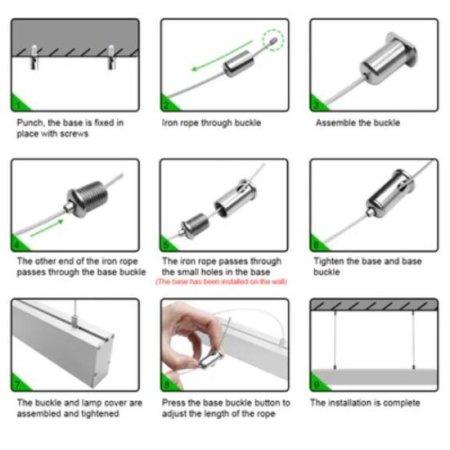

【Installation Method】 H-shaped aluminum track, rigid construction of anodized extruded aluminum profile with suspension wire & hardware for pendant mounting LED lighting projects.

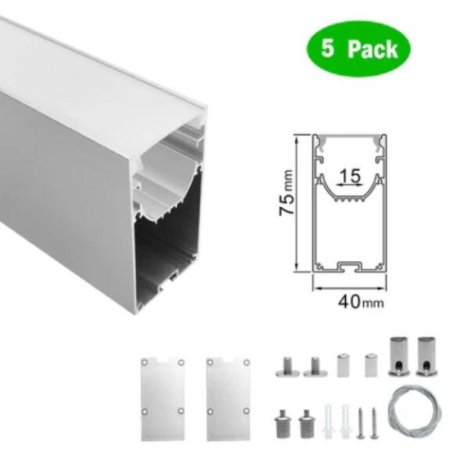

Specification
Item: Aluminum Channel
Housing Colour: Silver
Cover Colour: Milky White
Length: 1000mm (39.37inch) (max length
Top Width: 40mm (1.57inch)
Bottom Width: 40mm (1.57inch)
Inner width for PCB: 15mm (0.59inch)
Height: 75mm (2.95inch)
Mounting: Pendant Mounting
Material: Extruded, Anodized aluminum
Package Include:
5x 1Meter H4075 Extruded Aluminum Channel
5x 1Meter H4075 Milky White Diffuser (cover)
5x End Cap
5x Suspension Wire & Hardware
NOTE: Max length 3 Meters (9.84/ft), if need other lengths, please contact us.
