Features:
1. Lightsworld Aluminum Profile Kit is a great solution for low-cost DIY under cabinet lighting fixtures.
2. It is designed for recessed/surface mounting to tie-in furniture, under cabinet, shelves, drywall, wooden partitions, etc., also can be activated to create decorative luminescent bands in the walls, ceiling, floor, lights, work surfaces, shelves, steps, niches.
3. The Oyster/Opal white PC cover works well to help spread the light. This aluminum channel/profile works with LED flex/rigid strip lights (not wider than 20mm wide).
4. This kit includes the channel, cover, end caps, and mounting clips needed for a complete aluminum channel installation.

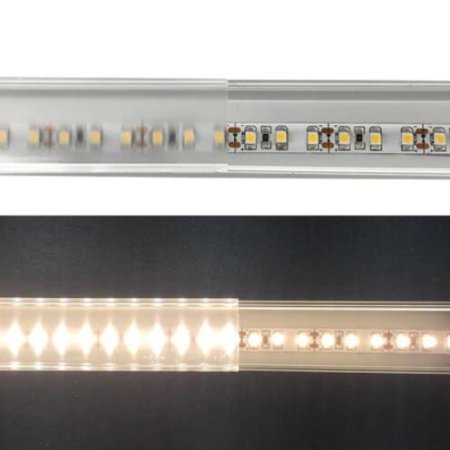

5. The cover softens the 'spottiness' of LED strip lights, producing a more consistent and pleasing light. This aluminum channel is extendable and sold by the meter. You can add as many meters as you need and connect them together seamlessly.
Specifications:
Configuration: U-Shape Channel: Extruded aluminum Diffuser: Oyster White Cover
Height: 0.94inch (24mm)
Inner Width: 0.8inch (20mm)
Top Width: 0.94inch (24mm)

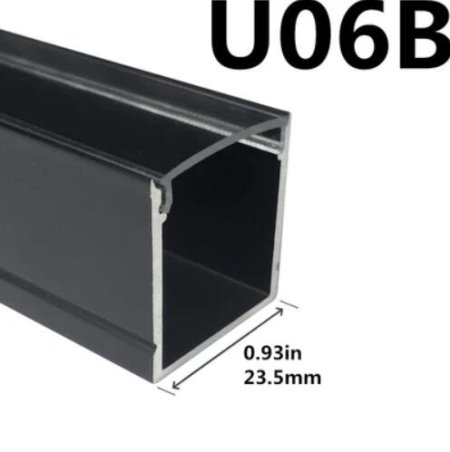

Back Width: 0.93inch (23.5mm)

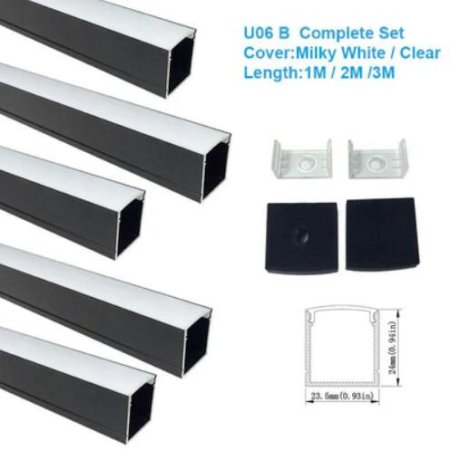

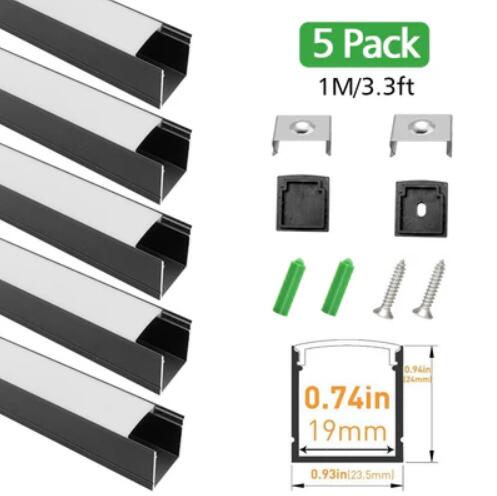

Packages Include:
5x1M-PACK Includes:
5x 1meter Aluminum Channel
5x 1meter PC Lens
10x End Caps (5 with a hole, 5 deaf)
10x Mounting Clips
10x1M-PACK Includes:
10x 1meter Aluminum Channel
10x 1meter PMMA Lens
20x End Caps (10 with a hole, 10 deaf)
20x Mounting Clips
25x1M-PACK Includes:
25x 1meter Aluminum Channel
25x 1meter PMMA Lens
50x End Caps (10 with a hole, 10 deaf)
100x Mounting Clips
25x2M-PACK Includes:
25x 2meter Aluminum Channel
25x 2meter PMMA Lens
50x End Caps (25with hole, 25 deaf)
100x Mounting Clips
50x2M-PACK Includes:
50x 2meter Aluminum Channel
50x 2meter PMMA Lens
100x End Caps (50 with hole, 50 deaf)
300x Mounting Clips
50x3M-PACK Includes:
50x 3meter Aluminum Channel
50x 3meter PMMA Lens
100x End Caps (50 with hole, 50 deaf)
300x Mounting Clips
