DC 12V Dimmable 810NM Infrared SMD5050-300 Flexible LED Strips 60 LEDs Per Meter Rated in <6Amp 72W/roll
Technical Specification
Other Features
● PCB Backing :Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68 (2pcs every meter).
● Lead : Single color strip has two contacts(V+,V-) and is Polarity Sensitive.
● Pre-wiring : 20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip.
● Weight : 0.2kgs/roll for non-waterproof; 0.3kgs/roll for IP65/IP67; 0.5kgs/roll for IP68.
SMD5050, 300Leds/reel, 670NM Red ,Flexible LED Strip, 3-LED Cuttable, DC12V, 72W/reel, 5A/reel, 120°, 5m/reel, width 8mm, On PCB with self-adhesive backing .
This product need a 12v 6amp 72watt LED power supply to power 1 reel (5 meters). And if you will cut the strip light, you can use some 10mm LED Strip Connectors for re-connection.
These 12 volt Flexible LED Strips are sold in 0.5,1,2,3,4 and 5 meters, if you need custom length, please contact us.
Technical Specification
Wattage (max) 12W/Meter Voltage 12V DC
Beam Angle 120° Dimming Yes
LED Type SMD5050 Strip Section 3LED per 2inch
WxH 10x2(mm) LED QTY.: 60LED/Meter
Length Available 0.5 to 5 Meter Available Color 810nm

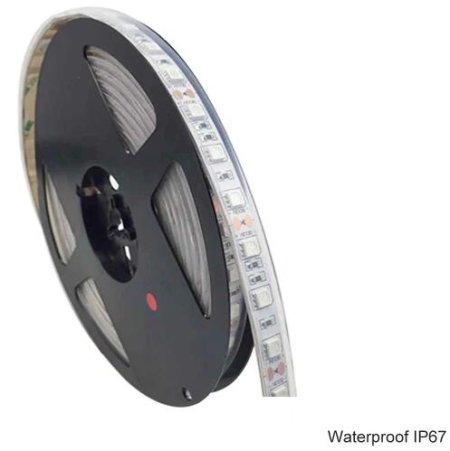

Protection Grade Non-waterproof, IP65, IP67, IP68
PCB Background White
Other Features
Item DC12V SMD5050-300-IR InfraRed (850nm/940nm) Tri-Chip Flexible LED Strips 60LEDs 14.4W Per Meter
Weight 0.15kgs/roll for non-waterproof; 0.25kgs/roll for IP65/IP67; 0.5kgs/roll for IP68.
PCB Backing Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68 (2pcs every meter).
Lead Single color strip has two contacts(V+,V-) and is Polarity Sensitive.
Pre-wiring 20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip
Applications
*For surveillance or security
*For the multitouch display
*For Night Version Light
Features

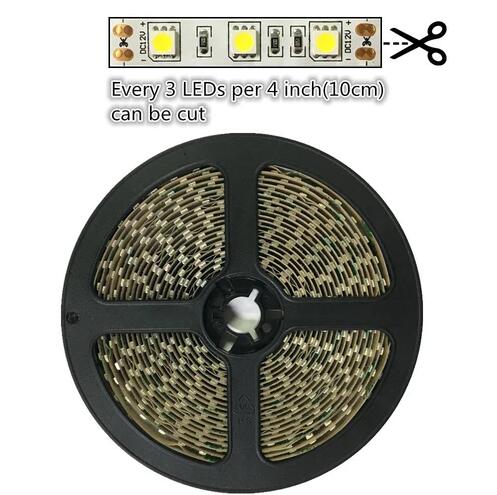

*Can be cut into 3-LED segments
*Adhesive backing
*12VDC Operation
*Dimmable - See our Dimmer Selection
Safty Tips
*Always disconnect power supply before cutting/connecting LED Light Strips.
*Do not crimp strip tape, attempt to bend strips width-wise, or length-wise to a radius less than 15mm
*Do not connect LED Light Strips directly to 120V AC power.
*Apply power to test LED Light Strips before mounting.
