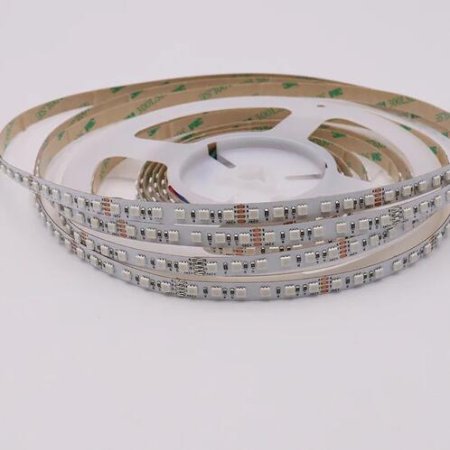

16.4FT/5M SMD3838-600 LED Strips RGB Color High Density 120 LEDs 12Watt Per Meter 8mm Wide RGB LED Tape

16.4FT/5M SMD3838-600 LED Strips RGB Color High Density 120 LEDs 12Watt Per Meter 8mm Wide RGB LED Tape

*RGB Color Changing Strip

*Length: SMD3838-600LED per 16.4FT(5Mtr)

*Power: 24VDC <50W 5Amp

*24V DC operating, need to work with 24V transformer if run to the wall outlet (non included)

*IP Protection: Non-Waterproof, Waterproof IP65, IP67, and IP68 available

*Control: Need to work with matched RGB controller(non included)

*Easy Installation: With 3M double-sided adhesive tape back, very sticky that fit for various mounting materials


Technical Specification

Size(W*H/mm) 8*2

Length Available 50cm,100cm,200cm,300cm,400cm,500cm

Voltage 24VDC

Power 12W/Meter

LED Type SMD3838

Color RGB

Cut Section Every 6LED per 2'' Can be Cut

Beam Angle 120°

PCB Background White

Wiring One end solder with 10cm 4pin RGB Connector

Accessory Double Sided Adhesive Backing for IP20 and IP65, Mounting Bracket Comes for IP67 and IP68, 2pcs each Meter.

Dim Type PWM dimmable

Waterproof Type IP20, IP65, IP67, IP68


Other Features

Item RGB Color Changing 24VDC < 60W, 5Amp SMD3838 600 LED flexible strip, 5meter per roll

Weight 0.15kgs/roll for non-waterproof; 0.25kgs/roll for IP65/IP67; 0.5kgs/roll for IP68.

PCB Backing Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68 (2pcs every meter).

Lead Single color strip has two contacts(V+,V-) and is Polarity Sensitive.

Pre-wiring One end solder with 10cm 4pin RGB Connector


Package included:

• 1x 5meter per roll LED Flexible Strip
