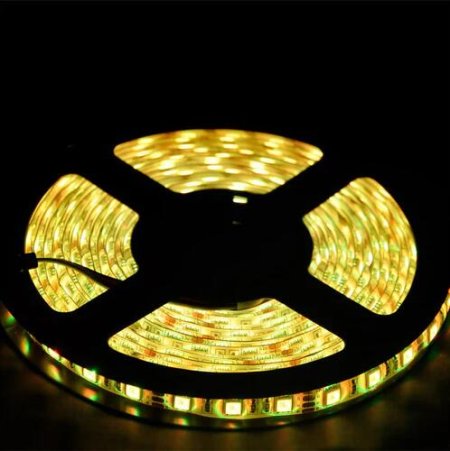

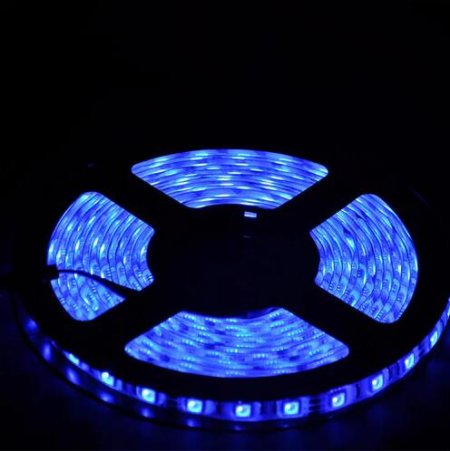

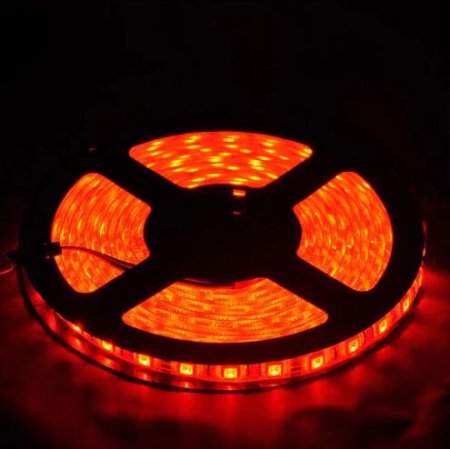

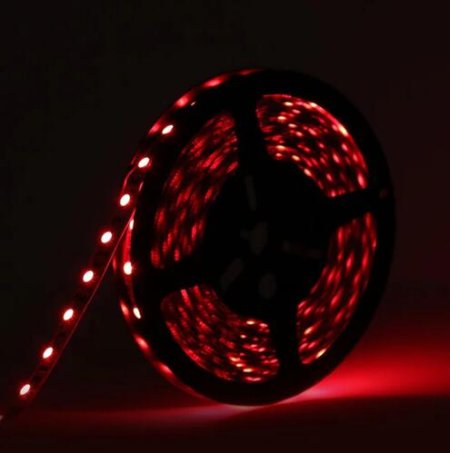

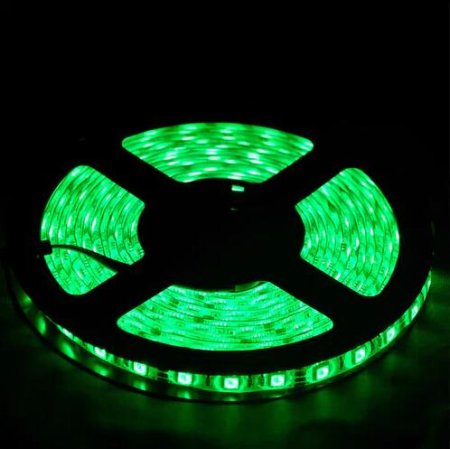

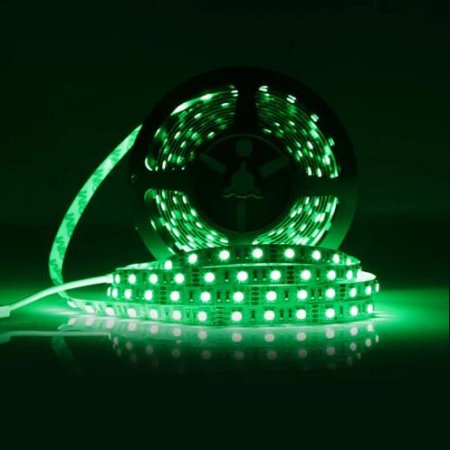

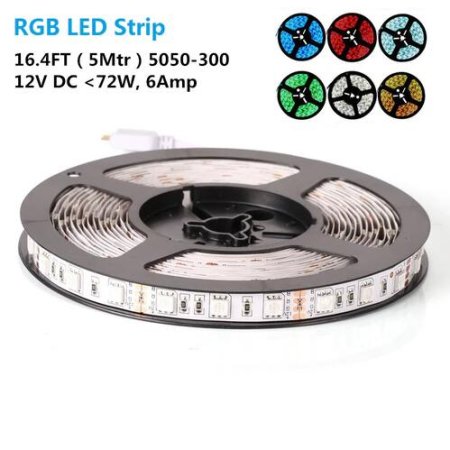

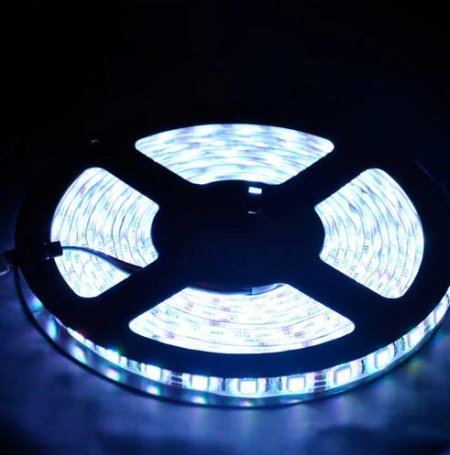

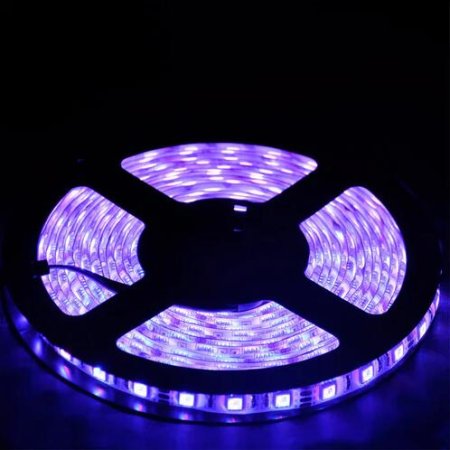

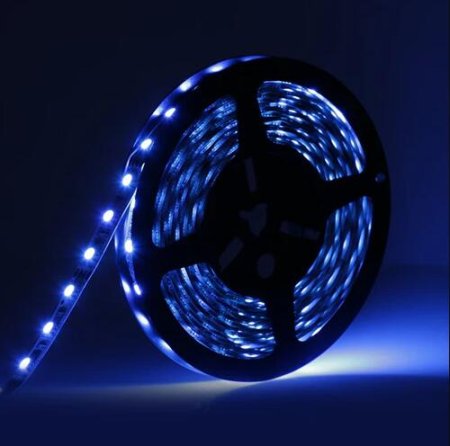

16.4FT/5M SMD5050-300 RGB Color Changing Flexible LED Strips,High Density Tri-Chip 60 LEDs Per Meter 10mm Wide LED Tape
*RGB Color Changing Strip
*Length: SMD5050-300LED per 16.4FT(5Mtr)
*Power: 12VDC <72W 6Amp
*12V DC operating, need to work with 12V transformer if run to wall oulet (non included)
*IP Protection:Non-Waterproof, Waterproof IP65, IP67 and IP68 available
*Control: Need to work with matched RGB controller(non included)
*Easy Installation: With 3M double-sided adhesive tape back, very sticky that fit for various mounting materials
Technical Specification
Size(W*H/mm) 10*2
Length Available 50cm,100cm,200cm,300cm,400cm,500cm
Voltage 12VDC
Power 14.4W/Meter
Lumen Output 300lm/Feet @ Pure White
Available color Pure White, Warm White, Natural White,Red,Green,Yellow, Blue, RGB
CCT 2700-6500K
Beam Angle 120°
PCB Background Yellow, White, Black
Wiring One end solder with 20cm lead wire
Accessory Double Sided Adhesive Backing for IP20 and IP65, Mounting Bracket Comes for IP67 and IP68, 2pcs each Meter.
Dim Type PWM dimmable
Waterproof Type IP20, IP65, IP67, IP68
Other Features
Item RGB Color Changing 12VDC < 72W, 6Amp SMD5050 300 LED flexible strip, 5meter per roll
Weight 0.15kgs/roll for non-waterproof; 0.25kgs/roll for IP65/IP67; 0.5kgs/roll for IP68.
PCB Backing Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68 (2pcs every meter).
Lead Single color strip has two contacts(V+,V-) and is Polarity Sensitive.
Pre-wiring 20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip
Package included:
• 1x 5meter per roll LED Flexible Strip
